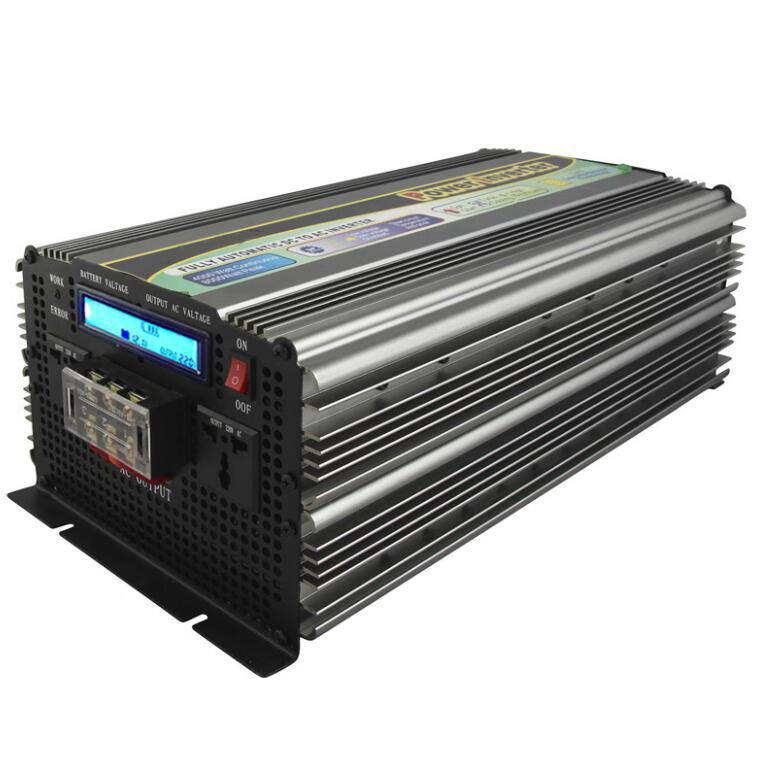

Power Inverter 5000W DC to AC Modified Sine Wave

Name: Power Inverter 5000W DC to AC Modified Sine Wave
Brand: all-electronics-online.com
SKU: 787864195
Availability: InStock
Rating: 4.4 (59 reviews)

Price:	US $ 278-280/Piece
Min Order:	100/Piece
Pay Type:	L/C,T/T,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	WSP-5000MSW
Size:	420255155mm
Phase:	Single
Power Source:	Electric Power
Application:	Electric Tools
Brand:	OEM

Product Description

Power Inverter 5000W DC to AC Modified Sine Wave
5000W continuous power inverter 10000 watt peak.
Over temperature protection
Low battery alarm
Over voltage protection
Overload protection
Low battery shut down

1. / Output continuous power	5000W
2. / Output peak power	10000W
3.DC / Input DC voltage	12V		24V
4. / Working voltage	11-15V		22-30V
5. / Low-voltage protection	9 -10.5V		18.0-21.0V
6. / Lack-voltage alarm	9.5 -11V		19.0 -22.0V
7. / Over-voltage protection	≥15V		≥30V
8. / Fuse	NO		300A
9. / Non-load current	≤3A		≤3A
10. / Convert efficiency	≥90%
11. / Overload protection	5000W -5500W
12. / Short circuit protection	Have
13. / Work temperature	-10ºC -- +50ºC
14. / Temperature protection	+60ºC -- +70ºC
15. / Output wave	/ Modified sine wave
16.AC / AC Output voltage	110V±5%	220V±5%	110V±5%	220V±5%
17. / Output frequency	60Hz	50Hz	60Hz	50Hz

Packing:
1, Packing                         Paper Box
2, PCS/CTN                           2PCS
3, Measurement                   350*150*125mm
4, Carton dimension         440*230*350mm
5, Unit weight                    5.5kg ± 0.15kg
6, Net weight (N.W)                  10.7kg
7, Gross weight (G.W)                11.7kg
