Power Transmission Line ACSR AAC Wire Cable

Name: Power Transmission Line ACSR AAC Wire Cable
Brand: all-electronics-online.com
SKU: 758603975
Availability: InStock
Rating: 4.4 (67 reviews)

Price:	US $ 0.15-4.0/Meter
Trade Terms:	FOB,CFR,CIF
Min Order:	500/Meter
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	aac
Markets:	North America,South America,Southeast Asia,Africa,Oceania,Mid East,Western Europe
Size:	16/3, 35/6, 50/8, ..........800/70.......1000
Produceing Experience:	15 Years
Export Experience:	Southeast Asia,South America, Africa
Export To:	USA,South Africa,Middle East
OEM:	Yes
Application:	Power Transmisssion Line,Power Plant and Substatio
Insulation Material:	Bare
Certification:	ISO
Voltage:	LV Mv Hv
Sheath Material:	Bare
Wire Core Material:	Aluminum
Model:	Lj

Product Description

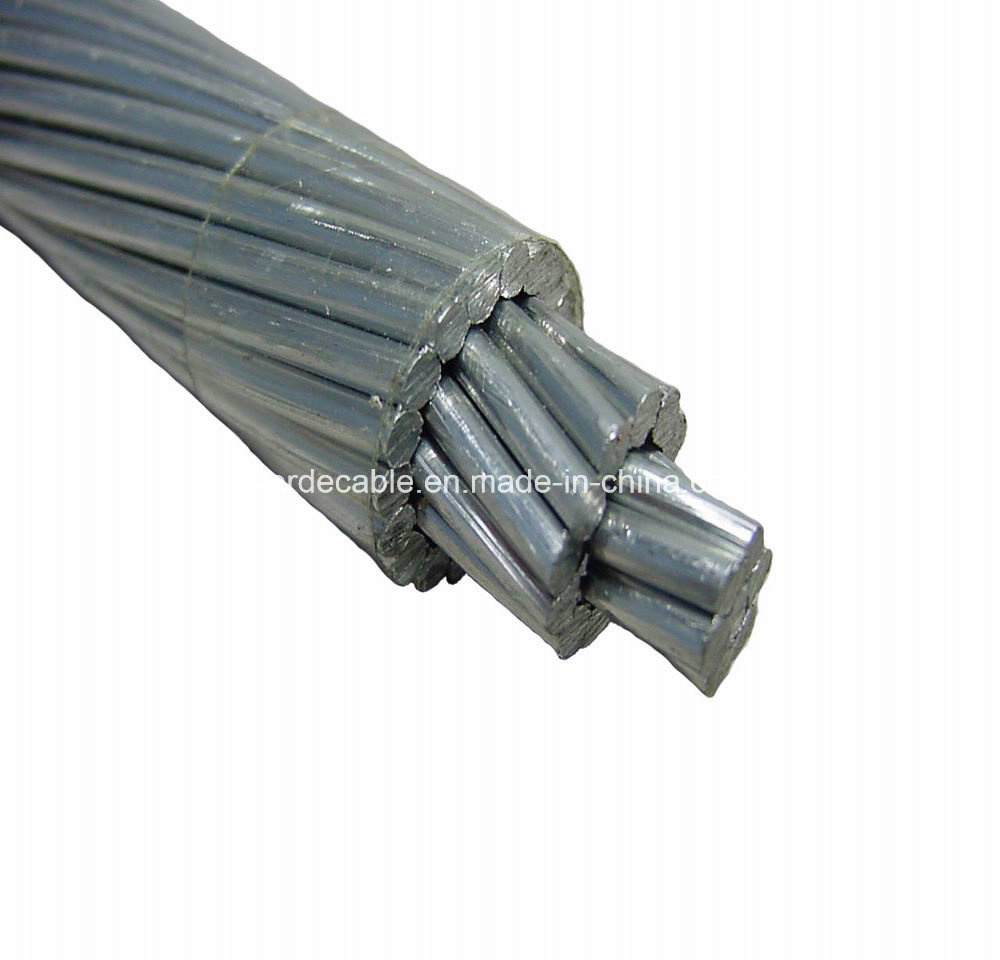

AAC Conductor (All Aluminium Conductor) for Overhead Power Transmission Line
1.Standard:IEC, BS,ASTM,DIN,NF,JIS.We can also customize the special size according to the customer's special request.

2.Experience:more than 15 years manufacture experience

3.Hot sale to Africa,South Africa,Southeast Asia,North America.

4. Here only list parts of technical data for AAC as per GB, ASTM and BS standard,if you want to get more techincal data,pls send e-mail to us.

ALL ALUMINIUM STRANDED CONDUCTOR
AAC (JL)
Standard GB/T 1179-2008

Area	/ Pieces/Diameter	Diameter	Max. resistance At 20ºC	Calculation Force	Weight
mm²	mm	mm	Ω/km	KN	kg/km
10	7/1.35	4.05	2.8633	1.95	27.4
16	7/1.71	5.12	1.7896	3.04	43.8
25	7/2.13	6.40	1.1453	4.50	68.4
40	7/2.70	8.09	0.7158	6.80	109.4
63	7/3.39	10.2	0.4545	10.39	172.3
100	19/2.59	12.9	0.2877	17.00	274.8
125	19/2.89	14.5	0.2302	21.25	343.6
160	19/3.27	16.4	0.1798	26.40	439.8
200	19/3.66	18.3	0.1439	32.00	549.7
250	19/4.09	20.5	0.1151	40.00	687.1
315	37/3.29	23.0	0.0916	51.97	867.9
400	37/3.71	26.0	0.0721	64.00	1102.0
450	37/3.94	27.5	0.0641	72.00	1239.8
500	37/4.15	29.0	0.0577	80.00	1377.6
560	37/4.39	30.7	0.0515	89.60	1542.9
630	61/3.63	32.6	0.0458	100.80	1738.3
710	61/3.85	34.6	0.0407	113.60	1959.1
800	61/4.09	36.8	0.0361	128.00	2207.4
900	61/4.33	39.0	0.0321	144.00	2483.3
1000	61/4.57	41.1	0.0289	160.00	2759.2
1120	91/3.96	43.5	0.0258	179.20	3093.5
1250	91/4.18	46.0	0.0231	200.00	3452.6
1400	91/4.43	48.7	0.0207	224.00	3866.9
1500	91/4.58	50.4	0.0193	240.00	4143.1

AAC Standard: ASTM B231

Code Name	Total Area		/ Stranding and wire diameter mm	Linear Mass kg/km	Overall Diameter mm	Nominal Breaking Load daN	Max. D.C. Resistance at 20ºC ≤Ω/k
Code Name	AWG or MCM	mm²	/ Stranding and wire diameter mm	Linear Mass kg/km	Overall Diameter mm	Nominal Breaking Load daN	Max. D.C. Resistance at 20ºC ≤Ω/k
Peachbell	6	13.29	7/1.554	37	4.67	249	2.1692
Rose	4	21.16	7/1.961	58	5.89	396	1.3624
Iris	2	33.61	7/2.474	93	7.42	597	0.8577
Pansy	1	42.39	7/2.776	117	8.33	732	0.6801
Poppy	1/0	53.48	7/3.119	147	9.36	873	0.5390
Aster	2/0	67.42	7/3.503	186	10.51	1100	0.4276
Phlox	3/0	85.03	7/3.932	234	11.80	1347	0.3390
Oxlip	4/0	107.23	7/4.417	296	13.26	1698	0.2688
Valerian	250	126.71	19/2.931	349	14.57	2062	0.2275
Sneezewort	250	126.71	7/4.80	349	14.4	2007	0.2275
Laurel	266.8	135.16	19/3.01	373	15.05	2200	0.2133
Daisy	266.8	135.16	7/4.96	373	14.9	2141	0.2133
Peony	300	152.0	19/3.193	419	15.97	2403	0.1896
Tulip	336.4	170.45	19/3.381	470	16.91	2695	0.1691
Daffodil	350	177.35	19/3.447	489	17.24	2804	0.1625
Canna	397.5	201.42	19/3.673	555	18.36	3184	0.1431
Goldentuft	450	228	19/3.909	629	19.55	3499	0.1264
Syringa	477	241.68	37/2.882	666	20.19	3849	0.1193
Cosmos	477	241.68	19/4.023	666	20.12	3708	0.1193
Hyacinth	500	253.35	37/2.951	698	20.65	4035	0.1138
Zinnia	500	253.35	19/4.12	698	20.6	3888	0.1138
Dahlia	556.5	282	19/4.346	777	21.73	4327	0.1022
Mistletoe	556.5	282	37/3.114	777	21.79	4362	0.1022
Meadowsweet	600	304	37/3.233	838	22.63	4703	0.0948
Orchid	636	322.25	37/3.33	888	23.31	4985	0.0894
Heuchera	650	329.35	37/3.366	908	23.56	5095	0.0875
Flag	700	354.71	61/2.72	978	24.48	5146	0.0813

AAC Standard: ASTM B231

Code Name	Total Area		/ Stranding and wire diameter mm	Overall Diameter mm	Linear Mass kg/mass	Nominal Breaking Load daN	Max. D.C. Resistance at 20ºC ≤Ω/km
Code Name	AWG or MCM	mm²	/ Stranding and wire diameter mm	Overall Diameter mm	Linear Mass kg/mass	Nominal Breaking Load daN	Max. D.C. Resistance at 20ºC ≤Ω/km
Verbena	700	354.71	37/3.493	24.45	978	5487	0.0813
Nasturtium	715.5	362.58	61/2.75	24.76	1000	5874	0.0795
Violet	715.5	362.58	37/3.533	24.74	1000	5609	0.0795
Cattail	750	380	61/2.817	25.35	1048	5985	0.0759
Petunia	750	380	37/3.617	25.32	1048	5875	0.0759
Lilac	795	402.84	61/2.90	26.11	1111	6345	0.0715
Arbutus	795	402.84	37/3.724	26.06	1111	6232	0.0715
Snapdragon	900	456.06	61/3.086	27.78	1257	6978	0.0632
Cockscomb	900	456.06	37/3.962	27.73	1257	6848	0.0632
Goldenrod	954	483.42	61/3.177	28.6	1333	7896	0.0596
Magnolia	954	483.42	37/4.079	28.55	1333	7258	0.0596
Camellia	1000	506.71	61/3.251	29.36	1397	7753	0.0569
Hawkweed	1000	506.71	37/4.176	29.23	1397	7608	0.0569
Larkspur	1033.5	523.68	61/3.307	29.76	1444	8012	0.0550
Bluebell	1033.5	523.68	37/4.244	29.72	1444	7863	0.0550
Marigold	1113	563.93	61/3.432	30.89	1555	8628	0.0511
Hawthorn	1192.5	604.26	61/3.551	31.05	1666	9245	0.0477
Narcissus	1272	644.51	61/3.668	33.02	1777	9861	0.0477
Columbine	1351.5	684.84	61/3.78	34.01	1888	10478	0.0421
Carnation	1431	725.10	61/3.89	35.03	1999	10768	0.0398
Gladiolus	1510.5	765.35	61/4.00	35.09	2110	11365	0.0376
Coreopsis	1590	805.68	61/4.099	36.51	2221	11964	0.0358
Jessamine	1750	886.71	61/4.302	38.72	2445	13168	0.0325
Cowslip	2000	1013.42	91/3.76	41.40	2791	15300	0.0285
Lupine	2500	1266.67	91/4.21	46.30	3524	18700	0.0230
Trillium	3000	1520.13	127/3.90	50.75	4232	22500	0.0192
Bluebonnet	3500	1773.50	127/4.21	54.80	4985	26200	0.0166

AAC Standard: BS215 Part 1

Nominal Alum Area mm²	Stranding and wire diameter mm	Sectional Area mm²	Approx. Weight Kg/km	Overall Diameter mm	Max..D.C. Resistance At 20ºC ≤Ω/km	Calculated breaking load da N	Final Modulus Of Elasticity hbar	Coefficient of Linear Expansion /ºC
22	7/2.06	23.33	64	6.18	1.227	399	5900	23×10-
25	3/3.35	26.40	73	7.2	1.081	411	5900	23×10-
25	7/2.21	26.8	73	6.6	1.066	459	5900	23×10-
30	3/3.66	31.6	86	7.9	0.9082	486	5900	23×10-
35	7/2.59	37.0	101	7.8	0.7762	603	5900	23×10-
40	7/2.79	42.8	117	8.4	0.6689	687	5900	23×10-
50	7/3.10	52.83	145	9.30	0.5419	828	5900	23×10-
60	7/3.40	63.55	174	10.20	0.4505	990	5900	23×10-
70	7/3.66	73.7	202	11.0	0.3881	1134	5900	23×10-
75	7/3.78	78.5	215	11.4	0.3644	1194	5900	23×10-
80	7/3.91	84.1	230	11.7	0.3406	1278	5900	23×10-
90	7/4.17	95.6	262	12.5	0.2994	1453	5900	23×10-
100	7/4.39	106.0	290	13.17	0.2702	1600	5900	23×10-
100	19/2.67	106.0	293	13.4	0.2704	1742	5600	23×10-
125	7/4.90	132.0	361	14.7	0.2169	1944	5900	23×10-
150	7/5.36	157.9	432	16.1	0.1818	2385	5900	23×10-
150	19/3.25	157.9	434	16.25	0.1825	2570	5600	23×10-
175	19/3.53	186	512	17.7	0.1547	2863	5600	23×10-
200	19/3.78	213.2	587	18.9	0.1349	3240	5600	23×10-
225	19/3.99	236.9	652	20.0	0.1211	3601	5600	23×10-
250	19/4.22	265.7	731	21.10	0.1083	4040	5600	23×10-
300	19/4.65	322.7	888	23.25	0.08916	4875	5600	23×10-
350	37/5.00	373.2	1027	25.0	0.07711	5637	5600	23×10-
350	19/3.58	373.3	1029	25.1	0.07741	5745	5600	23×10-
400	37/5.36	428.5	1179	26.8	0.06710	6473	5600	23×10-
400	37/3.78	415.2	1145	26.46	0.06944	6310	5600	23×10-
450	37/4.09	486.9	1342	28.6	0.05931	7401	5600	23×10-
500	37/4.27	529.5	1460	29.9	0.05441	7998	5600	23×10-
600	37/4.65	628.6	1733	32.6	0.04588	9495	5600	23×10-
750	37/5.23	794.6	2191	36.6	0.03627	12010	5600	23×10-
