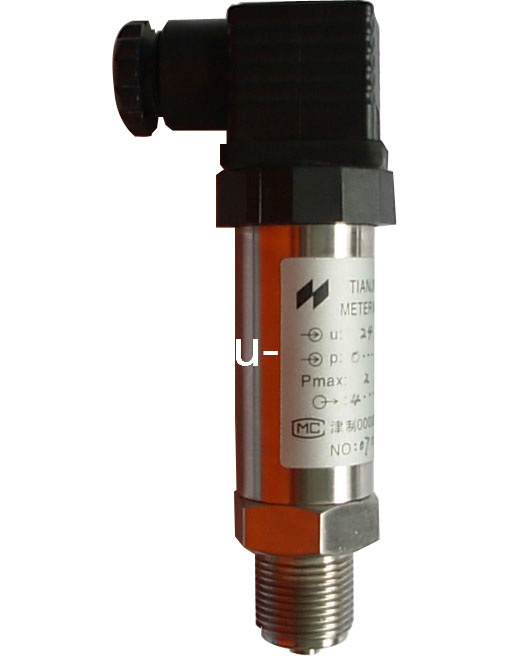

Pressure Transmitter /Oil Pressure Sensor/Piezoelectric Transducer
| Price: |
US $ 60/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,D/P,Paypal,Money Gram |
| Prod Model: |
UI-P200 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Display: |
Digital |
| Function: |
Electric Signal-Controlled |
| Accuracy: |
1 |
| Indicating Pressure Reference: |
General Pressure Gauge |
| Application: |
Industrial |
| Structure: |
Fluid Column Pressure Gauge |
| Connection Type: |
Axial |
| Measuring Range: |
Low-Pressure Gauge |
| Measuring Medium: |
Gas,Liquid,Steam |
Product Description
Tianjin U-ideal Instrument Co., Ltd from Tianjin, China manufacture-China supplier-email. 0.5% Pressure Transmitter with 2 Wires, 4 to 20mA Output Signal, Anti-vibration, Corrosion-resistant
Piezoresistive pressure sensor/Pressure Transmitter /oil pressure sensor/piezoelectric transducer
Our other related products: Level gauges, flow meters, pressure transmitters, indicators, industrial system.
Welcome to contact if have enquiry.
Thanks and Best wishes,
Jenny Zhao
General Manager
Tianjin U-ideal Instrument Co., Ltd
Tel: +86 22 88971536 Mobile: +86 13072030856
Key Specifications/Special Features:
Voltages: 16 to 32V DC
Pressure range: 0 to 80MPa
Output signal: 2 wires 4 to 20mA
Over pressure: 2 X FS
Accuracy: 0.5%FS
Temperature deviation: Stability: Temperatures:
Ambient: -40 to 80° C
Medium: -40 to 80° C
Protection grade: IP68
Anti-vibration and corrosion-resistant
Primary Competitive Advantages:
Quality Approvals
Price
Reputation
Service
Small Orders Accepted
| Technical parameters |
|
| Measuring range | Please see the Code Table below |
| Overload range | 150%FS |
| Accuracy | 0.1%,0.2%,0.5% |
| Linearity | ±0.2% |
| Repeatability | ≤±0.075FS |
| Stability | >0.1%FS/Year |
| Temperature effect | <±0.01%FS/ºc |
| Response time | <1ms(10..90%FS) |
| Power supply | 10..30V DC(3-wire 14..30V) |
| Load | ≥10KΩ(0..10V),≥5KΩ(1..5V) |
| (UB-10)V/ 0.02A (4..20mA) |
| Electrical protection | overload/Reversed phase protection |
| Temperature compensation | -10..80ºC |
| Medium temperature | -10..80ºC |
| Storage temperature | -40..125ºC |
| Protection grade | IP65 |
| Housing material | Stainless steel 304 |
| Touch liquid material | Stainless steel 316L |
| Seal | Fluorine rubber |
| Weight | 0.10kg |
| Electrical connection |
| Hirschmann joint |
| Selection Table |
|
| P200S- | GB1 | A | G14 | M4 | B | /HT | Details |
| P200S- |
|
|
|
|
|
| P200s Pressure Transmitter |
| GB1 |
|
|
|
|
| Range: Gauge pressure 0..1 bar |
| AB1 |
|
|
|
|
| Range: Absolute pressure 0..1 bar |
| NB1 |
|
|
|
|
| Range: Absolute pressure -1..1 bar |
|
| A |
|
|
|
| Accuracy grade 0.1 |
|
| B |
|
|
|
| Accuracy grade 0.2 |
|
| C |
|
|
|
| Accuracy grade 0.5 |
|
|
| N14 |
|
|
| Process connection thread A=NPT1/4 |
|
|
| N12 |
|
|
| Process connection thread A=NPT1/2 |
|
|
| G14 |
|
|
| Process connection thread A=G1/4 |
|
|
| G12 |
|
|
| Process connection thread A=G1/2 |
|
|
| M20 |
|
|
| Process connection thread A=M20 |
|
|
|
| M4 |
|
| 4..20mA output |
|
|
|
| V1 |
|
| 1..5V output |
|
|
|
|
| B |
| Electrical connection Hirschmann joint |
|
|
|
|
|
| - | Standardized type |
|
|
|
|
|
| HT | High temperature optional |
|
|
|
|
|
| CA | Anticorrosion type optional |
|
|
|
|
|
| SA | Health type optional |
Hebei Xukang Meter Manufacturing Co., Ltd (Tianjin U-ideal Instrument Co., Ltd) is a professional supplier of level instruments, flow meters, gates valves, pressure control valves, pneumatic and electric control ball valves, check valves, globe valve, pressure reducing and sustaining valve and steam traps and strainers from year 2006, are one of the repute' S manufactures in China, We have been cooperated with many famous companies all over the world, and quantities are satisfy all of our customers. Our products have passed the CE, GS, ISO9001 approvals.
Fluid water level switch(float switch, radar level switch, ultrasonic level switch, vertical level switch, horizontal level switch, flange level switch, thread level switch), tank gauges (Magnetic level gauges, glass tubular level gauges, sight glass level indicator, transparent level meter and reflective level gauge, weld glass water meter, oil level meter, fuel level control and indicator), drop-in type level sensor(cable level sensor, pole level switch, hydrostatic pressure level sensor and level transmitter, capacitive level sensor, ultrasonic level transmitter, non-contact level meter and float level transmitter) tank flange level indicators, radar RF level meter and so on.
Flow meters: Metal rotary flow meters(float flowmeter, rotameter, gas rotameter, bypass rotameter), vortex flow meters (steam vortex flowmeter) flow sensor, flow switches and liquid and gas turbine flow meters, conductive fluid electromagnetic flow meters, PD flow meter such as oval gear wheel flow meters, roots flow meters) precession vortex gas flow meters, flow sensor and other flowmeasurement instruments.
Ultrasonic Level, Ultrasonic Level Measurement, Level Measurement, Level Sensors, Ultrasonic Level Sensors, Ultrasonic Flow Meter, Ultrasonic Level Probe, Ultrasonic Meter, Ultrasonic Distance Meter, Ultrasonic Meters, Ultrasonic Level Detection, Ultrasonic SensÖ R, Ultrasonic Sensors, Ultrasonic Level Sensor, Level Sensor Ultrasonic, Ultrasonic Measuring, Ultrasonic Testing, Sensor Ultrasonic, Ultrasonic Measurement. Water Level Sensor Switch, Water Level Sensor, Water Level Sensor Circuit, Level Sensor Water, Liquid Level Sensor, Magnetic Level Switch, Magnetic Switch, Oil Level Sensor, Magnetic Float Switch, pressure transmitter, differential pressure transmitter.
Safety valve, pressure control valve, safety relief valve, pressure relief valve, pressure transmitters, pressure gauge, temperature gauge
Welcome to contact us, we will reply you in 24hours.
