Protection Circuit Module Specifications for 5V/2.1A Power Bank

Name: Protection Circuit Module Specifications for 5V/2.1A Power Bank
Brand: all-electronics-online.com
SKU: 728516605
Availability: InStock
Rating: 4.7 (126 reviews)

Price:	US $ 2/Piece
Trade Terms:	FOB,CIF,DAP
Min Order:	100/Piece
Pay Type:	L/C,T/T,Paypal,Money Gram,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	PCM-LI01S3-968(1S)
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Color:	Yellow
Size:	L37.5W20.2T10mm
Base Material:	FR-4

Product Description

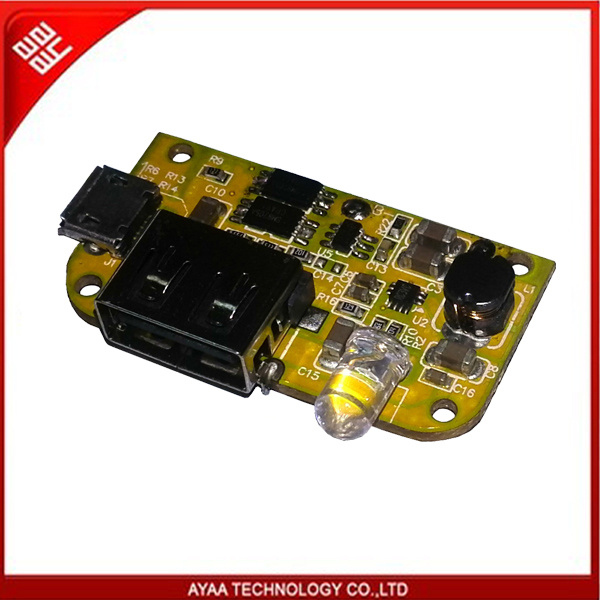

Protection Circuit Module Specifications For 5V/2.1A Power Bank
Model: PCM-LI01S3-968(1S)
Voltage: In voltage: DC: 5V± 0.5V
Charging voltage(Battery pack): DC: 4.35V(CC/CV)
Out voltage: DC: 5V± 0.3V
Current: Charging current: 1A± 0.2A
Maximal continuous discharging current: 2.1A
Over current protection: 2.7A± 0.2A
Out USB indication: NO load: Power-down mode
Trigger switch: Out: 5V/2.1A

LED indication: LED1(blue): 25%
LED2(blue): 50%
LED3(blue): 75%
LED4(blue): 100%
Over charge Protection: Over charge detection voltage: 4.4± 0.03V
Over charge detection delay time: 800ms— 1800ms
Over charge release voltage: 4.2± 0.05V
Over discharge protection: Over discharge detection voltage: 2.8± 0.05V
Over discharge detection delay time: 50mS— 200mS
Over discharge release voltage: 3.0± 0.05V
Short protection: Detection condition: Exterior short circuit
Detection delay time: 100-600us
Release condition: Cut load
Resistance: Protection circuitry: ≤ 50mΩ
Temperature: Operating Temperature Range: '-40~+85Ddegree
Storage Temperature Range: '-40~+125degree
