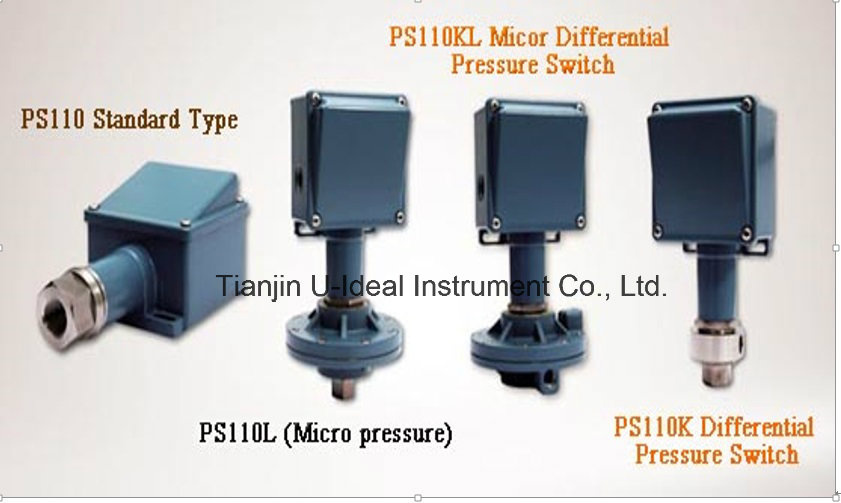

PS110 Series Mechanical Pressure Switches
| Price: |
US $ 60/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,D/P,Paypal,Western Union |
| Prod Model: |
PS110 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Medium: |
Gas or Liquid Which Is No Corrosive to Nitrile Rub |
| Shell: |
Die Casting Aluminum, Epoxy Resin Coating, Cover |
| Grade Of Shell: |
Conform to The Requirements of The NEMA 4 X |
| Set Point Accuracy: |
+/-1% |
| Electrical Interface: |
M20 * 1.5 Internal Thread Interface |
| Type: |
Mechanical |
| Application: |
Industrial |
| Explosion-proof Type: |
Flameproof |
| Contact: |
Normally Close |
| Brand: |
Ui |
Product Description
PS Series Pressure controller are widely used in petroleum, chemical, metallurgical, power, sugar, pharmaceutical and other industries, The main function is pressure protection in automatic control system.
All welded stainless steel diaphragm type is the most popular type. The all welded model can effectively prevent leakage and faulty operation; Have strong corrosion resistance;
Metal bellow type pressure controller is widely used in various corrosive gases and liquids. Operation pressure is higher than stainless steel diaphragm type;
Rubber diaphragm type controller is used in non-corrosive gas and liquid medium. Are mainly used in micro pressure and micro differential pressure measurement. At present, we can provide from negative pressure to 40MPa. Can completely replace similar foreign products.
For special working condition, we can do Non-standard Products.
All of our products are tested with pressure, vibration and shock.
Features:
Is suitable for all kinds of industrial field. Is an ideal alternative to similar foreign products
High quality rubber / 316L stainless steel diaphragm/piston Sensor, with stable and reliable performance
Accuracy: + / - 1%; Repeatability: + / - 1.5%;
Simple structure, no disassembly parts.
SPDT or DPDT output; Cast aluminum shell, explosion-proof optional; A variety of optional of pressure and electrical interfaces.
Measure range: 600Pa ~ 40MPa optional
Basic Parameter:
Medium: gas or liquid which is no corrosive to Nitrile rubber or 316 l stainless steel;
Shell: Die Casting Aluminum, Epoxy Resin Coating, Cover with Sealing Gasket
Grade of shell: conform to the requirements of the NEMA 4 x
Set point accuracy: +/-1%
Regulation Range: Fixed (reference selection table data.)
Repeatability: < 1%
Pressure interface: standard 1/2 NPTF threads, special size is on order;
Electrical interface: M20 * 1.5 internal thread interface
According to the special field need to order
Switch output: SPDT output, Switch can connect "normally open" or "normally closed"
Ambient temperature: - 40 ºC ~ + 85 ºC
Environmental humidity: 5% ~ 95%
Service life: 100000 cycles
Vibration resistance: < Max. 2 g
Protection grade: Die Casting Aluminum
Explosion-proof: Ex DE IIC T6, Temp. = - 40 ~ 71 ºC IP66
Contact capacity: Vmax = 380V, Zmax = 5A
(Special requirement on order)
| Model Selection Table |
| PS110L Series: All welded 316L diaphragm, Single point set, Fixed mechanical differential |
| Model | Regulation Range (KPa) | fixed mechanical differential
Kpa | Max. operating pressure
Kpa |
| All welded 316L diaphragm,G1/4″ Pressure connection,M20*1.5 Internal screw electrical interface,fixedmechanical differential Unit:KPa |
| PS110L-111 | 0.6~2.5 | 0.5~0.8 | 50 (100) |
| PS110L-112 | 0.6~6 | 0.5~0.8 | 50 (100) |
| PS110L-113 | 0.6~16 | 0.5~0.8 | 50 (100) |
| PS110L-114 | 0.6~25 | 0.5~0.8 | 50 (100) |
|
| PS110 series all welded 316L diaphragm,fixed mechanical differential, single point set |
| Model | Regulation Range (MPa) | fixed mechanical differential
Mpa | Max. operating pressure
Mpa |
| 316L diaphragm, 1/2″NPTF Pressure connection,M20*1.5 Internal screw electrical interface,fixed mechanical differential, Unit: MPa |
| PS110-312 | 0.006~0.08 | 0.0065 | 0.3(0.5) |
| PS110-313 | 0.006~0.12 | 0.0065 | 0.3(0.6) |
| PS110-314 | 0.006~0.16 | 0.0065 | 0.3(0.7) |
| PS110-315 | 0.03~0.2 | 0.02~0.025 | 1(2) |
| PS110-316 | 0.03~0.3 | 0.02~0.025 | 1(2) |
| PS110-317 | 0.03~0.4 | 0.02~0.025 | 1(2) |
| PS110-318 | 0.02~0.5 | 0.02~0.03 | 2 |
| PS110-319 | 0.02~0.6 | 0.02~0.03 | 2 |
| PS110-320 | 0.02~0.7 | 0.02~0.03 | 2 |
| PS110-321 | 0.02~0.8 | 0.02~0.03 | 2 |
| PS110-322 | 0.02~0.9 | 0.02~0.03 | 2 |
| PS110-323 | 0.02~1.0 | 0.02~0.03 | 2 |
| PS110-324 | 0.05~1.5 | 0.15~0.25 | 5 |
| PS110-325 | 0.05~2.0 | 0.15~0.25 | 5 |
| PS110-326 | 0.05~2.5 | 0.15~0.25 | 5 |
| PS110-327 | 0.3~2 | 0.2~0.3 | 9 |
| PS110-328 | 0.3~3 | 0.2~0.3 | 9 |
| PS110-329 | 0.3~4 | 0.2~0.3 | 9 |
| PS110-330 | 0.3~5 | 0.2~0.3 | 9 |
| PS110-331 | 0.3~6 | 0.2~0.3 | 9 |
| PS110-332 | 0.3~10 | 0.25~0.4 | 15 |
|
| PS110 series 316L Piston,fixed mechanical differential, single point set |
| Model | Regulation Range (MPa) | fixed mechanical differential
Mpa | Max. operating pressure
Mpa |
| 316L Piston,1/2″NPTF Pressure connection,M20*1.5 Internal screw electrical interface,fixed mechanical differential, Unit: MPa |
| PS110-333 | 1~16 | 0.5 | 20 |
| PS110-334 | 2~25 | 0.65 | 32 |
| PS110-335 | 2~40 | 1.5 | 50 |
|
| PS110F series all welded 316L diaphragm,fixed mechanical differential, single point set |
| Model | Regulation Range (MPa) | fixed mechanical differential
Mpa | Max. operating pressure
Mpa |
| 316L diaphragm vacuum switch,1/2NPTF Pressure connection,M20*1.5 Internal screw electrical interface,fixed mechanical differential, Unit: MPa |
| PS110F-500 | -0.1~0 | 0.005 | 1 |
| PS110F-501 | -0.1~0~0.1 | 0.005 | 1 |
| PS110F-502 | -0.1~0~0.16 | 0.005 | 1 |
| PS110F-503 | -0.1~0~0.25 | 0.005 | 1 |
|
| PS110KL series Nitrile rubber diaphragm,fixed mechanical differential, single point set |
| Model | Regulation Range (MPa) | fixed mechanical differential
Mpa | Max. operating pressure
Mpa |
| Nitrile rubber diaphragm,G1/4″Pressure connection,M20*1.5 Internal screw electrical interface,fixed mechanical differential, Unit: KPa |
| PS110KL-400 | 0.6~2.5 | 0.2 | 150(500) |
| PS110KL-401 | 1~16 | 0.3 | 150(500) |
| PS110KL-402 | 2~25 | 0.4 | 150(500) |
|
| PS110K series all welded 316L diaphragm, fixed mechanical differential, single point set |
| Model | Regulation Range (MPa) | fixed mechanical differential
Mpa | Max. operating pressure
Mpa |
| 316L diaphragm, G1/4″Pressure connection,M20*1.5 Internal screw electrical interface,fixed mechanical differential, Unit: MPa |
| PS110K-403 | 0.02~0.1 | 0.03 | 1.6 |
| PS110K-404 | 0.02~0.16 | 0.03 | 1.6 |
| PS110K-405 | 0.02~0.25 | 0.03 | 1.6 |
| PS110K-406 | 0.02~0.4 | 0.03 | 1.6 |
| PS110K-407 | 0.02~0.6 | 0.04 | 2.5 |
| PS110K-408 | 0.02~1.0 | 0.04 | 2.5 |
| PS110K-409 | 0.02~1.6 | 0.04 | 2.5 |
| Selection |
| E | Ex de IIC T6, Temp.=-40~70ºC |
| D | DPDT |
| A | High Contact capacity |
| B | Stainless steel number |
| N | Special pressure connection (size) |
| M1 | factory set switch single point |
| M2 | factory set switch double point |
| Z1 | Horizontal mounting rack |
| Z2 | pipe mounting rack |
| Dimensions |
PS110 standard diaphragm pressure switch |
PS110L micro diaphragm pressure switch |
PS110K diaphragm type standard differential pressure switch |
PS110KL diaphragm type micro differential pressure controller |
Horizontal mounting rack |
Pipe mounting rack |
| Dimensions |
PS110 standard diaphragm pressure switch |
PS110L micro diaphragm pressure switch |
PS110K diaphragm type standard differential pressure switch |
PS110KL diaphragm type micro differential pressure controller |
Horizontal mounting rack |
Pipe mounting rack |
| Dimensions |
PS110 standard diaphragm pressure switch |
PS110L micro diaphragm pressure switch |
PS110K diaphragm type standard differential pressure switch |
PS110KL diaphragm type micro differential pressure controller |
Horizontal mounting rack |
Pipe mounting rack |
