Ptv Copper Wire Pin-Shaped Pre-Insulating Terminal

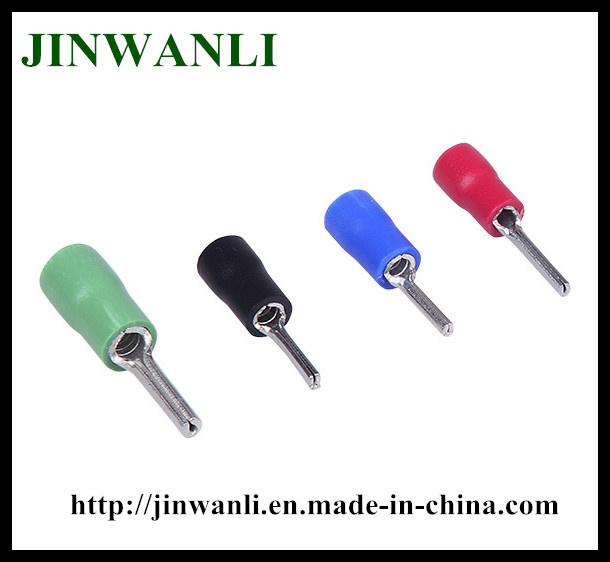

Name: Ptv Copper Wire Pin-Shaped Pre-Insulating Terminal
Brand: all-electronics-online.com
SKU: 764580015
Availability: InStock
Rating: 4.9 (31 reviews)

Price:	US $ 0.011/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	10000/Piece
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Type:	Single Hole Terminals
Material:	Copper
Application:	Conduct Electricity
Shape:	Pin

Product Description

Specifications
1. Certificate: ISO9001: 2000&CE
2. A. W. G: 22-16, 16-14, 14-12, 12-10
3. Thickness: 0.75mm, 0.8mm, 1.0mm
4. Plating: Tin
5. Material: Made by high purity copper, PVC
6. Color: Res, yellow, blue, black
7. Using: Connect wire with electrical equipment.

Packaging Detail: 100 PCS/Polybag or upon Customer's Requirements.
Delivery Detail: 10-30 Days After Receive The Payment

Cable size:0.5 ~ 1.5mm²(A.W.G.22 ~ 16) Max current:Imax=19A Material: purple copper Thickness:0.75mm
No.	Item No.	Dimension				Color
		F(mm)	L(mm)	H(mm)	D (mm)
1	PTV1.25-9	1.9	19.0	10.0	4.3	Red
2	PTV1.25-10	1.9	20.0
3	PTV1.25-12	1.9	22.0
4	PTV1.25-13	1.9	23.0
Cable size:1.5 ~ 2.5mm²(A.W.G.16 ~ 14) Max current:Imax=27A Material: purple copper Thickness:0.8mm
No.	Item No.	Dimension				Color
		F(mm)	L(mm)	H(mm)	D (mm)
5	PTV2-9	1.9	19.0	10.0	4.9	Blue
6	PTV2-10	1.9	20.0
7	PTV2-12	1.9	22.0
8	PTV2-13	1.9	23.0
Cable size:2.5 ~ 4mm²(A.W.G.14 ~ 12) Max current:Imax=36A Material: purple copper Thickness:1.0mm
No.	Item No.	Dimension				Color
		F(mm)	L(mm)	H(mm)	D (mm)
9	PTV3.5-10	2.8	20.5	13.0	6.2	Black
10	PTV3.5-13	2.8	25.5
Cable size:4 ~ 6mm²(A.W.G.12 ~ 10) Max current:Imax=48A Material: purple copper Thickness:1.0mm
No.	Item No.	Dimension				Color
		F(mm)	L(mm)	H(mm)	D (mm)
11	PTV5.5-13	2.8	25.5	13.0	6.7	Yellow

Our company is a key electrical accessories manufacturer of terminal blocks and other cable accessories in China.

Our company is located in Yueqing, Wenzhou City, Zhejiang Province. It is a manufacturing and export company, specialized in producing components for kinds of lights, automobile and so on. They have gone through many authentications such as CQC, CE, RoHS. The main products are terminal blocks and wires, cable ties, cable clips, cable glands and copper inserts. They have entered the mafket of most parts in the world including Europe, the Middle East and Latin America. They are of good quality and sell well in many countries.

Our company manufactures products strictly according to IEC and national GB standards, and we have established a complete and improved quality management system according with ISO9002 standard system, We guarantee the products with competitive price, high quality and timely delivery. Besides, we can supply a complete set of after-sales service to our customers and help term expand their local market share.

We welcome you to contact us for more information and we are looking forward to chances of creating a long and mutually beneficial partnership with you. We do hope to cooperate very very well and develop rapidly with our joint efforts for mutual benefits.
