| Prod Model: |
WSPPS3100 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Charge: |
Three-Steps Intelligent Charge Controller |
| Phase: |
Single |
| Type: |
DC/AC Inverters |
| Power Source: |
Electric Power |
| Output Power: |
>1000W |
| Brand: |
OEM |
Product Description

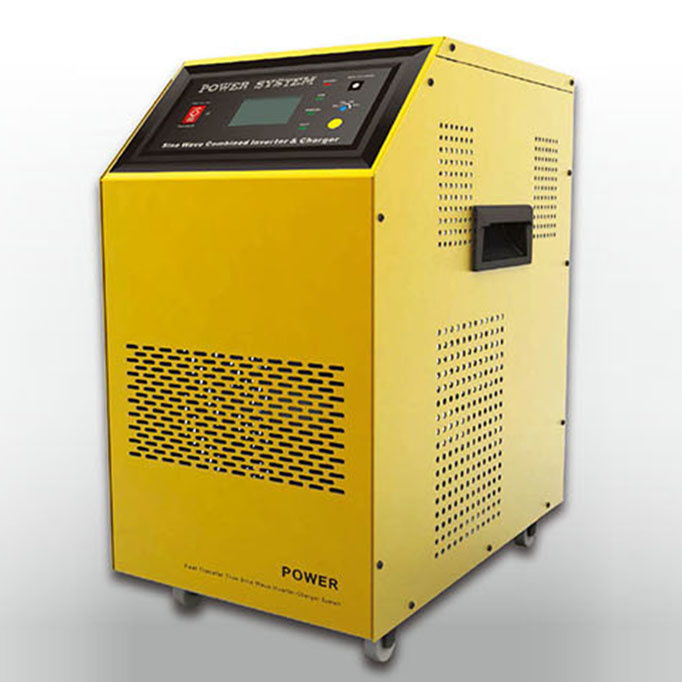

Pure sine wave inverter, tower type with low frequency transformer
1.tower type with wheels
2.Max charge current 70A
3.Low self-consumption
4.Automatic three-stage battery charger
5.RS232 with CD(option)
6.Battery priority function(option)
7.Charge current adjustable function(option)
8.Remote control switch(option)
Intruduction:
Pure sine wave inverter 1000W-6000W tower type with low frequency transformer, it enable the inverter to operate with all kinds of home appliances
| Specification |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| Model | EP31-1KW | EP31-1.5KW | EP31-2KW | EP31-3KW | EP31-4KW | EP31-5KW | EP31-6KW |
| Default Battery System Voltage | 12VDC | 24VDC | 12VDC | 24VDC | 12VDC | 24VDC | 12VDC | 24VDC | 48VDC | 24VDC | 48VDC | 24VDC | 48VDC | 24VDC | 48VDC |
| Inverter Output | Rated Power | 1000W | 1500W | 2000W | 3000W | 4000W | 5000W | 6000W |
| Surge Rating (20ms) | 3000VA | 4500VA | 6000VA | 9000VA | 12000VA | 15000VA | 18000VA |
| Capable of starting electric motor | 1HP | 2HP | 3HP |
| Waveform | Pure sine wave/same as input (bypass mode) |
| Nominal Output Voltage RMS | 100V/110V/120V 220V/230V/240VAC | 220V/230V/240VAC |
| Output Voltage Regulation | +/-10%RMS |
| Output Frequency | 50Hz/60Hz+/-0.3Hz | 50Hz/60Hz+/-0.3Hz |
| Inverter Efficiency(peak) | >88% | >88% |
| Line Mode Efficiency | >95% | >95% |
| Power factor | 1.0 | 1.0 |
| Typical Transfer Time | 10ms(max) | 10ms(max) |
| AC Input | Voltage | 120VAC / 230VAC |
| Selectable Voltage Range | 96-132VAC 155-280VAC (For Personal Computers) | 155-280VAC (For Personal Computers) |
| Frequency Rang | 50Hz/60Hz(Auto sensing) 40-80Hz | 50Hz/60Hz(Auto sensing) 40-80Hz |
| Battery | Minimum Start Voltage | 10.0VDC/10.5VDC for 12VDC mode(*2 for 24VDC, *4 for 48VDC)) |
| Low Battery Alarm | 10.5VDC+/-0.3 for 12VDC mode(*2 for 24VDC,*4 for 48VDC) |
| Low Battery Cutoff | 10.0VDC+/-0.3 for 12VDC mode(*2 for 24VDC,*4 for 48VDC)) |
| High Voltage Alarm | 16.0VDC+/-0.3 for 12VDC mode(*2 for 24VDC,*4 for 48VDC) |
| High Battery Voltage Recover | 15.5VDC+/-0.3 for 12VDC mode(*2 for 24VDC,*4 for 48VDC) |
| Idle Consuption-search mode | <25W when power saver on |
| AC Charger | Output Voltage | Depends on battery type | Depends on battery type |
| Charger AC input breaker rating | 10A | 30A | 40A |
| Overcharge protection S.D. | 15.7VDC for 12VDC mode(*2 for 24VDC,*4 for 48VDC) |
| Maximum Charge Current | 35A | 20A | 45A | 25A | 65A | 35A | 75A | 45A | 30A | 65A | 35A | 70A | 40A | 75A | 50A |
| BTS | Continuous Output Power | Yes Variances in charging voltage & S.D.voltage base on the battery temperature |
| Bypass & Protection | Input Voltage waveform | Sine wave(grid or generator) |
| Nominal Input Frequency | 50Hz or 60Hz |
| Overload Protection(SMPS Load) | Circuit breaker |
| Output Short Circuit Protection | Circuit breaker |
| Bypass breaker Rating | 10A | 30A | 40A |
| Max Bypass Current | 10Amp | 30Amp | 40Amp |
| Mechanical Specifications | Mounting | wall mount |
| Dimensions(W*H*D) | 230*393*350mm | 230*418*450mm |
| Net weight(kg) | 15.7kg | 18kg | 16.2kg | 15.5kg | 20.3kg | 19.1kg | 25.3kg | 23.7kg | 24kg | 37.2kg | 34.8kg | 44.15kg | 44kg | 44.15kg | 44kg |
| Shipping Dimensions(W*H*D) | 320*519*440mm | 322*544*540mm |
| Shipping Weight(kg) | 18.3KG | 20.6KG | 19KG | 18.1KG | 23.1kg | 21.8kg | 28.1kg | 26.5kg | 26.5kg | 40.8kg | 38.4kg | 48kg | 47.8kg | 48kg | 47.8kg |
| Other | Operating temperature range | 0ºC-40ºC |
| Storage temperature | -15ºC-60ºC |
| Audible Noise | 60dB MAX |
| Display | LED+LCD |
| Loading(20GP/40GP/40HQ) | 350pcs /650pcs / 850pcs | 290pcs / 535pcs / 700pcs |
| * Product specifications are subject to change without further notice |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| Approximate Back-up Time Table |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| Power Rate(w) | Backup time(H)
@1*100AH | Backup time(H)
@2*100AH | Backup time(H)
@4*100AH | Backup time(H)
@4*200AH | Backup time(H)
@8*200AH |
|
|
|
|
|
|
|
|
|
|
|
|
| 1000 | 0.4806 | 1.602 | 3.503 | 7.6896 |
|
|
|
|
|
|
|
|
|
|
|
|
|
| 2000 | 0.2136 | 0.4806 | 1.602 | 3.503 | 7.6896 |
|
|
|
|
|
|
|
|
|
|
|
|
| 3000 | 0.1068 | 0.2848 | 0.8544 | 2.136 | 4.8416 |
|
|
|
|
|
|
|
|
|
|
|
|
| 4000 |
| 0.2136 | 0.4806 | 1.602 | 3.50304 |
|
|
|
|
|
|
|
|
|
|
|
|
| 5000 |
| 0.12816 | 0.3418 | 1.1962 | 2.73408 |
|
|
|
|
|
|
|
|
|
|
|
|
| 6000 |
| 0.1068 | 0.2848 | 0.8544 | 2.136 |
|
|
|
|
|
|
|
|
|
|
|
|
