| Prod Model: |
Power star inverter PV12/24-1000w LCD |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Model: |
Power Star Inverter PV1000W-12/24-LCD |
| Size: |
442*218*179mm |
| Warranty: |
3 Years |
| Delivery Time: |
15-20 Days |
| Color: |
White/Black |
| Certificate: |
CE, IEC, ISO |
| Brand Name: |
Power Star/Cspower/OEM |
| OEM: |
Available |
| N.W: |
16kg |
| G.W: |
18kg |
| Phase: |
Single |
| Type: |
DC/AC Inverters |
| Power Source: |
Solar Power |
| Output Power: |
501 - 1000W |
| Brand: |
Power Star/Cspower/OEM |
Product Description
Product Description

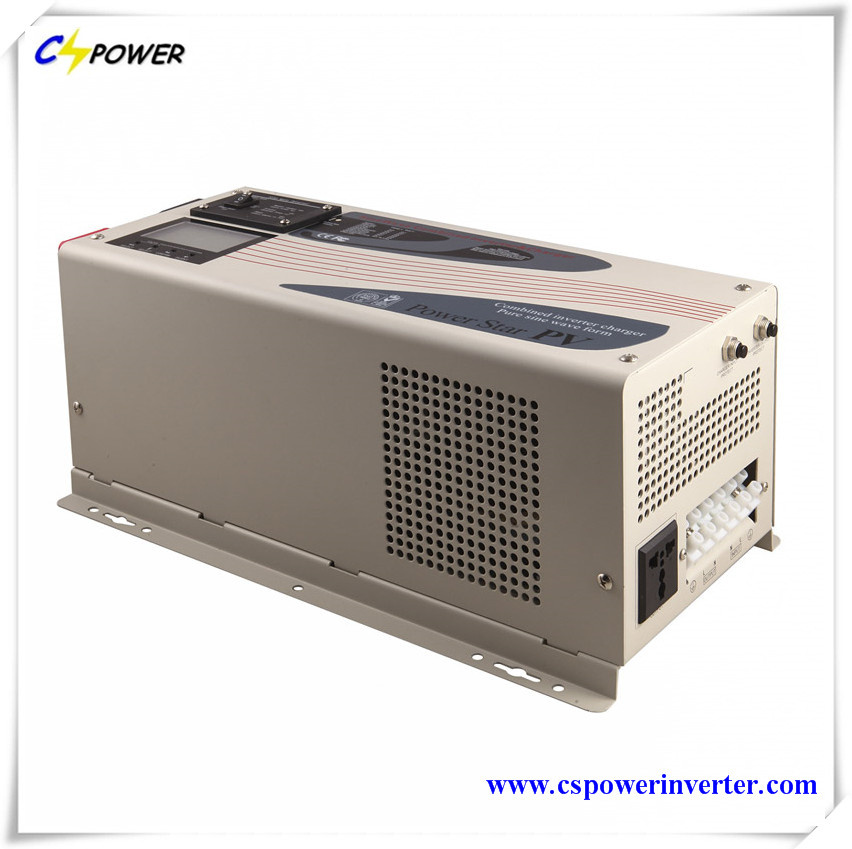

Pure Sine wave Inverter with Charger PV12/24-1000w LCD for UPS
Inverter Charger Solar Pure Sine Wave Inverter Series Description:
Solar Inverter Pure Sine Wave Inverter Powerstar Off-Grid Low Frequency Solar Pure Sine Wave Inverter, LCD indicators display, Pure Sine Wave Inverter 220/230, 50Hz, off grid solar inverter with pure copper transformer, peak power three times, with built-in AC Charger 35/70Amp, LCD indicators display. Charger current adjustable, UPS Function.
Pure Sine wave Inverter with Charger PV12/24-1000w LCD for UPS Characteristics:
Peak Power: 3 times as rated Power
Optional remote control, Bypass, and Auto-reconnection.
Voltage 110/120/230 and 220/230/240VAC 50Hz or 60Hz adjustable via LCD
Capacity available from 500W, 750W, 1000W, 1500W, 2000W, 3000W, 4000W, 5000W, 6000W, 7000W and 8000W.
Pure Sine wave Inverter with Charger PV12/24-1000w LCD for UPS Main Features:
1.LED/LCD digital display show voltage, load and battery info in real time.
2.Peak power is three times of rated power.
3.Can work with inductive load such as air conditioner, motor door and so on.
4.Pure sine wave output, available for sensitive load.
5.4-step progressive charging, 7 battery type selector.
6.Fast and powerful charger with 35A and 75A/90A.
7.Accept generator's energy output.
8.High power factor 0.9, low power consumption.
9.Automatically transfer between battery and line modes.
10.Microprocessor control guarantees high reliability.
11.Bypass without battery connected.
12.Remote control function.
13.Protection against: Over load, over temperature, over charging, low battery.
14.Reverse connection (optional by hard connector), Blackouts.
Pure Sine wave Inverter with Charger PV12/24-1000w LCD for UPS
Welcome to contact us for the battery details.
| Product Series | LW
1000 | LW
1500 | LW
2000 | LW
3000 | LW
4000 | LW
000 | LW
6000 |
| General Specification | Input Wave form | Sine wave (Utility or Generator) |
| Nominal voltage | 120VAC | 230VAC |
| Low voltage trip | 90v + 4% | 184v/154v + 4% |
| Low voltage reconnect | 100v + 4% | 194v/164v + 4% |
| High voltage trip | 140v + 4% | 253v + 4% |
| High voltage reconnect | 135v + 4% | 243v + 4% |
| Max input AC voltage | 150VAC | 270VAC |
| Nominal input frequency | 50Hz or 60Hz (Auto detect) |
| Low freq trip | 47Hz for 50Hz, 57Hz for 60Hz |
| High freq trip | 55Hz for 50Hz, 65Hz for 60Hz |
| Output wave form | (Bypass mode) same as input |
| Overload protection | Circuit breaker |
| Short circuit protection | Circuit breaker |
| Transfer switch rating | 30amp or 40amp |
| Efficiency on line transfer time | 95%+ |
| Line transfer time | 10ms Typical |
| Bypass without battery connected | yes |
| Max bypass current | 30amp or 40amp |
| Bypass overload current | 35amp or 45amp: Alarm |
| Inverter Specification Output | Output wave form | Pure sine wave |
| Output continuous power watts | 1000 | 1500 | 2000 | 3000 | 4000 | 5000 | 6000 |
| Output continuous power VA | 1000 | 1500 | 2000 | 3000 | 4000 | 5000 | 6000 |
| Power factor | 0.9-1.0 |
| Nominal output voltage rms | 120/230VAC |
| Output voltage regulation | 10% rms |
| Output frequency | 50Hz + 0.3Hz or 60Hz + 0.3Hz |
| Nominal efficiency | > 88% |
| Surge ratings | 3000 | 4500 | 6000 | 9000 | 12000 | 15000 | 18000 |
| Short circuit protection | Yes, fault after 10 seconds |
| Inverter Specification Input | Nominal input voltage | 12V | 24V | 48V |
| Minimum start voltage | 10V | 20V | 40V |
| Low battery alarm | 10.5V | 21V | 42V |
| Low battery trip | 10V | 20V | 40V |
| High voltage alram | 16V | 32V | 64V |
| Power saver | Below 25watts when enabled |
| Power saver | Same switched on/off on remote |
| Charge Mode Specification | Input voltage range | 95-127VAC | 194-243VAC/ 164-243VAC(W) |
| Output voltage range | Dependent on battery type |
| Charge current | 35A/70A |
| Battery initial voltage for start up | 0-15.7v for 12v (*2 for 24v; *4 for 48v) |
| Over charge protection shutdown | 15.7v for 12v (*2 for 24v; *4 for 48v) |
| Others | Remote control/RS232/USB | Yes, Optional |
| Size: in mm | 1000/2000/3000 Model: 442*218*179 |
| | 4000/5000/6000 Model: 598*218*179 |
| Net weight | LW1000 | LW1500 | LW2000 | LW3000 | LW4000 | LW5000 | LW6000 |
| | 18kgs | 19kgs | 20kgs | 22kgs | 35gs | 38kgs | 40kgs |
Pure Sine wave Inverter with Charger PV12/24-1000w LCD for UPS
