Pure Sine Wave Power Inverter / Hybrid Charger / off Grid Converter / Solar Power System
| Price: |
Negotiable/Piece |
| Trade Terms: |
CIF |
| Min Order: |
1/Piece |
| Pay Type: |
T/T,Western Union,Paypal,Money Gram |
| Prod Model: |
TF |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Model: |
300W-100kw |
| Input Voltage: |
12V/24V/48V/96V/120V |
| Materials: |
Copper Transformer |
| Colour: |
According Customers Request |
| Working Way: |
Three Phase or Single Phase |
| System: |
Home System, Solar System, Wind System |
| Warranty: |
18 Months |
| Delivery: |
2-5 Days |
| After Sales Service: |
Send Free PCB |
| Outout Voltages: |
110V/220V |
Product Description
Feature:1. solar power controller and inverter with AGM free maintenance battery together2.Completely controlled by CPU.3.Inverter use copper transformer, pure sine wave output.4.Have 5V,12V DC output.5.Two LCD displays, clearly to know the status.6.have bypass function and AC charger (UPS function)7.Protect against anti-charge at night, battery over charger/over discharge, output short-circuit, against overload, against over-voltage, over-current protection ,etc. | Model | SC300 | SC500 | SC700 | SC1000 |
| Rated power(W) | 300W | 500W | 700W | 1000W |
| Rated DC voltage(V) | 12/24 | 24/48 |
Line input | Input voltage(V) | 145-280V,90-127V |
| Charge current(A) | 5-15A |
| Inverter output | Output voltage(V) | 220VAC±5% &5V,12V DC |
| Output frequency | 50Hz/60Hz±1% |
| Wave form | Pure Sine Wave, THD<4%(Full Load) |
| Solar input | Maximum voltage(V) | 21V or 42V or 84v |
| Rated power(Wp) | 300Wp | 500Wp | 700Wp | 1000Wp |
| Solar Controller | Charge current(A) | 30/15 | 40/20 | 30/20 | 40/20 |
| MPPT range(V) | 12v(10-17) or 24v(20-34) |
| Charging efficiency | 90%-95%, Peak on 97% |
Other
| Over charge
protective voltage of battery(V) | 12V(14.3),24V(28.6),48V(57.2) |
| Over charge recover-voltage of battery(V) | 12V(13.7),24V(27.4),48V(54.8) |
Voltage drop between solar
module and battery(V) | ≤0.3V |
Voltage drop between loads
and battery(V) | ≤0.15V |
| Start speed of cooling fan | Have |
| Environment Humidity | 0-90% Maximum,non-condensable |
| Protective Functions | Protection against anti-charge at night;
Battery over charge;over discharge protection; Joint-reversed of solar modules |
| Control method | SPWM |
| Size :D*W*H(mm) | 430*145*224 | 450*220*260 |
| N.W&G.W(kg) | 12/15 | 13/16 | 15/18 | 17/20 |
Who we are?
Foshan Tanfon Energy Technology Co., Ltd is a professional manufacturer of green energy products with great commitment, contribution heart and responsibility.
What we do?
We are specialized in the R&D, manufacture and sale of the high quality environmental solar system, wind energy turbine, solar street light, solar pump and pure sine wave inverter, etc.
Now we are having the main series products as below:
1. Solar inverter
2. Solar controller(PWM and MPPT)
3. Portable solar system
4. Solar power system
5. Solar on grid system
6. Solar refrigerator system
7. Wind power system
8. Wind &solar hybrid system
9. Solar street light system
10. Solar air conditioner system
With these items as our weapons, we can fully supply the solutions for our clients' different needs.
We adhere to "quality first, users first" purpose, devoting ourselves everyday into setting up a suitable system for all of our clients.
How we do?

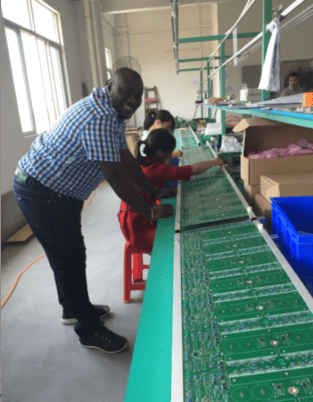

For the production, we have the professional production lines(Automatic series welding machine, EL test machine, Automatic frame machine, Special debug machine). Each step of production is under strict quality control. Our products are qualified with CE, RoHS, ISO certification.
For the service, we promise the quality. All products have the certain warranty and the new part would be shipped freely on time for service during the warranty. Also our company has started opening the factories in some countries, so it is very convenient to service you well at local.
Importantly, with a professional installation team, we have been to many countries(like Egypt, Bangladesh, Chad, Nigeria, Ghana, Doha, Pakistan) for installation service as well as win good feedback from the customers.
Specializing in installing projects from design, detailing, fabrication to erection, having continue cooperation with engineers, exclusive agents and the foreign business partners, we are now sincerely hoping to join hands with you to create a better future together at the principle of win-win cooperation.
Our Vision:
Tanfon create a solar kingdom for you
Our Mission:
Sincere, All-win, Unite, Aggressive.
Our Core Value:
100% Commitment 100% Contribution
100% Possibility 100% Time
