| Prod Model: |
B-147 |
| Application: |
Power Station |
| Current: |
AC Cable |
| Insulation Material: |
PVC |
| Certification: |
RoHS |
| Voltage: |
0.6/1kv |
| Wire Core Material: |
Copper |
| Model: |
Nyy |
| Brand: |
Yifang |
Product Description

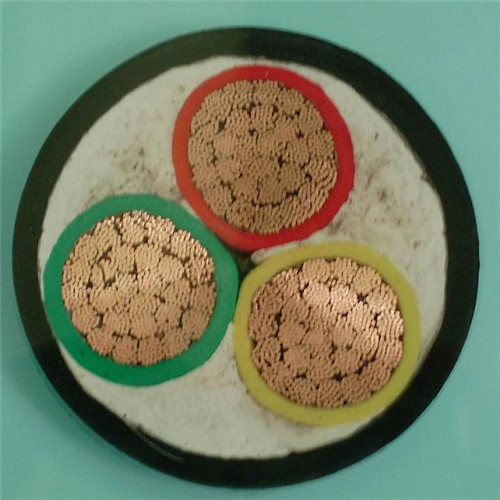

PVC Insulation PVC Sheath NYY Power Cable belongs to the low voltage cables voltage up to 0.6/1KV. They are used for power stations, industry and distribution boards and in subscriber networks.
Detailed cable structure as following:
NYY Cable (NYY-J / NYY-O)
Reference standard: VDE-0276 , IEC 60502
Conductor: Solid or stranded, plain copper conductor
Insulation : PVC
Outer sheath: PVC
J-type: With Green-yellow earth core
O-type: Without Green-yellow earth core
NAYY-J/NAYY-O Cable
Same as NYY , but the conductor material is aluminium
(N)YM(St)-J Cable
Reference standard: VDE-0276 , IEC 60502
Conductor: Solid or stranded, plain copper conductor
Insulation : PVC
Shield layer: Alu-plastic tape with solid tinned copper drain-wire
Outer sheath: PVC
J-type: With Green-yellow earth core
O-type: Without Green-yellow earth core
NYCY/ NYCWY Cable
Reference standard: VDE-0276 , IEC 60502
Conductor: Solid or stranded, plain copper conductor
Insulation : PVC
Filler(if any): PP rope
Inner sheath: PVC
Concentric conductor: Helical copper wires with copper tape
Outer sheath: PVC
J-type: With Green-yellow earth core
O-type: Without Green-yellow earth core
| Number of cores and mm2 per conductor | Approximate outside
in mm ca. | Copper weight
kg/km | Approximate weight
kg/km ca. |
| NYY-J Voltage Rating 0.6 / 1kV |
| 1 x 25 rm | 13 | 240.0 | 360 |
| 1 x 35 rm | 14 | 336.0 | 470 |
| 1 x 50 rm | 15 | 480.0 | 640 |
| 1 x 70 rm | 17 | 672.0 | 850 |
| 3 x 1.5 re | 12 | 43.0 | 200 |
| 3 x 2.5 re | 13 | 72.0 | 260 |
| 3 x 4 re | 15 | 115.0 | 330 |
| 3 x 6 re | 16 | 173.0 | 430 |
| 3 x 10 re | 18 | 288.0 | 590 |
| 3 x 16 re | 20 | 461.0 | 810 |
| 3 x 25 rm /16 re | 26 | 874.0 | 1,520 |
| 3 x 35 sm/16 re | 28 | 1,162.0 | 1,800 |
| 3 x 50 sm/25 rm | 31 | 1,680.0 | 2,500 |
| 3 x 70 sm/35 sm | 35 | 3,252.0 | 3,300 |
| 3 x 95 sm/50 sm | 40 | 3,216.0 | 4,400 |
| 3 x 120 sm/70 sm | 43 | 4,128.0 | 5,400 |
| 3 x 150 sm/70 sm | 48 | 4,992.0 | 6,700 |
| 3 x 185 sm/95 sm | 52 | 6,240.0 | 8,000 |
| 3 x 240 sm/120 sm | 59 | 8,064.0 | 10,400 |
| 3 x 300/150 sm | 65 | 10,080.0 | 13,000 |
| 4 x 1.5 re | 13 | 58.0 | 230 |
| 4 x 2.5 re | 14 | 96.0 | 300 |
| 4 x 4 re | 16 | 154.0 | 400 |
| 4 x 6 re | 17 | 230.0 | 510 |
| 4 x 10 re | 19 | 384.0 | 720 |
| 4 x 16 re | 22 | 614.0 | 1,050 |
| 4 x 25 rm | 28 | 960.0 | 1,650 |
| 4 x 35 sm | 28 | 1,344.0 | 2,000 |
| 4 x 50 sm | 31 | 1,920.0 | 2,700 |
| 4 x 70 sm | 35 | 2,688.0 | 3,600 |
| 4 x 95 sm | 40 | 3,648.0 | 4,800 |
| 4 x 120 sm | 43 | 4,608.0 | 5,900 |
| 4 x 150 sm | 48 | 5,760.0 | 7,300 |
| 4 x 185 sm | 53 | 7,104.0 | 9,000 |
| 4 x 240 sm | 60 | 9216.0 | 11,400 |
| 5 x 1.5 re | 14 | 72.0 | 270 |
| 5 x 2.5 re | 15 | 120.0 | 350 |
| 5 x 4 re | 17 | 192.0 | 480 |
| 5 x 6 re | 19 | 288.0 | 610 |
| 5 x 10 re | 21 | 480.0 | 880 |
| 5 x 16 re | 24 | 768.0 | 1,250 |
| 7 x 1.5 re | 15 | 101.0 | 300 |
| 10 x 1.5 re | 17 | 144.0 | 420 |
| 12 x 1.5 re | 18 | 173.0 | 460 |
| 14 x 1.5 re | 19 | 202.0 | 520 |
| 16 x 1.5 re | 20 | 230.0 | 570 |
| 19 x 1.5 re | 21 | 274.0 | 600 |
| 21 x 1.5 re | 22 | 302.0 | 650 |
| 24 x 1.5 re | 23 | 346.0 | 750 |
| 30 x 1.5 re | 25 | 432.0 | 800 |
| 40 x 1.5 re | 28 | 576.0 | 1,050 |
| 52 x 1.5 re | 31 | 749.0 | 1,450 |
| 61 x 1.5 re | 33 | 878.0 | 1,680 |
| 7 x 2.5 re | 16 | 168.0 | 420 |
| 10 x 2.5 re | 19 | 240.0 | 600 |
| 12 x 2.5 re | 21 | 288.0 | 630 |
| 14 2.5 re | 22 | 336.0 | 740 |
| 16 x 2.5 re | 23 | 384.0 | 810 |
| 19 x 2.5 re | 24 | 456.0 | 850 |
| 21 x 2.5 re | 25 | 504.0 | 950 |
| 24 x 2.5 re | 27 | 576.0 | 1,100 |
| 30 x 2.5 re | 29 | 720.0 | 1,300 |
| 40 x 2.5 re | 32 | 960.0 | 1,700 |
| 52 x 2.5 re | 36 | 1,248.0 | 2,200 |
| NYY-0 |
| 1 x 6 re | 9 | 58.0 | 140 |
| 1 x 10 re | 10 | 96.0 | 190 |
| 1 x 16 re | 11 | 154.0 | 240 |
| 1 x 25 rm | 13 | 240.0 | 360 |
| 1 x 35 rm | 14 | 336.0 | 470 |
| 1 x 50 rm | 15 | 480.0 | 640 |
| 1 x 70 rm | 17 | 672.0 | 850 |
| 1 x 95 rm | 19 | 912.0 | 1,120 |
| 1 x 120 rm | 21 | 1,152.0 | 1,370 |
| 1 x 150 rm | 23 | 1,440.0 | 1,700 |
| 1 x 185 rm | 25 | 1,776.0 | 2,100 |
| 1 x 240 rm | 28 | 2,304.0 | 2,700 |
| 1 x 300 rm | 30 | 2,880.0 | 3,200 |
| 1 x 500 rm | 39 | 4,800.0 | 5,400 |
| 2 x 1.5 re | 11 | 29.0 | 170 |
| 2 x 2.5 re | 12 | 48.0 | 220 |
| 2 x 4 re | 14 | 77.0 | 290 |
| 2 x 6 re | 15 | 115.0 | 360 |
| 2 x 10 re | 17 | 192.0 | 480 |
| 2 x 16 re | 19 | 307.0 | 660 |
| 3 x 15 re | 12 | 43.0 | 200 |
| 3 x 2.5 re | 13 | 72.0 | 260 |
| 3 x 4 re | 15 | 115.0 | 330 |
| 3 x 6 re | 16 | 173.0 | 430 |
| 3 x 10 re | 18 | 288.0 | 590 |
| 3 x 16 re | 20 | 461.0 | 810 |
| 4 x 1.5 re | 13 | 58.0 | 230 |
| 4 x 2.5 re | 14 | 96.0 | 300 |
| 4 x 4 re | 16 | 154.0 | 400 |
| 4 x 6 re | 17 | 230.0 | 510 |
| 4 x 10 re | 19 | 384.0 | 720 |
| 4 x 16 re | 22 | 614.0 | 1,050 |
| 4 x 25 rm | 28 | 960.0 | 1,650 |
| 4 x 35 sm | 28 | 1,344.0 | 2,000 |
| 4 x 50 sm | 31 | 1,920.0 | 2,700 |
| 4 x 70 sm | 35 | 2,688.0 | 3,600 |
| 4 x 95 sm | 40 | 3,648.0 | 4,800 |
| 5 x 1.5 re | 14 | 72.0 | 270 |
| 5 x 2.5 re | 15 | 120.0 | 350 |
re = round conductor, single wire rm = round conductor, multi wire sm = sectorial conductor
Also available in low smoke halogen free versions.
