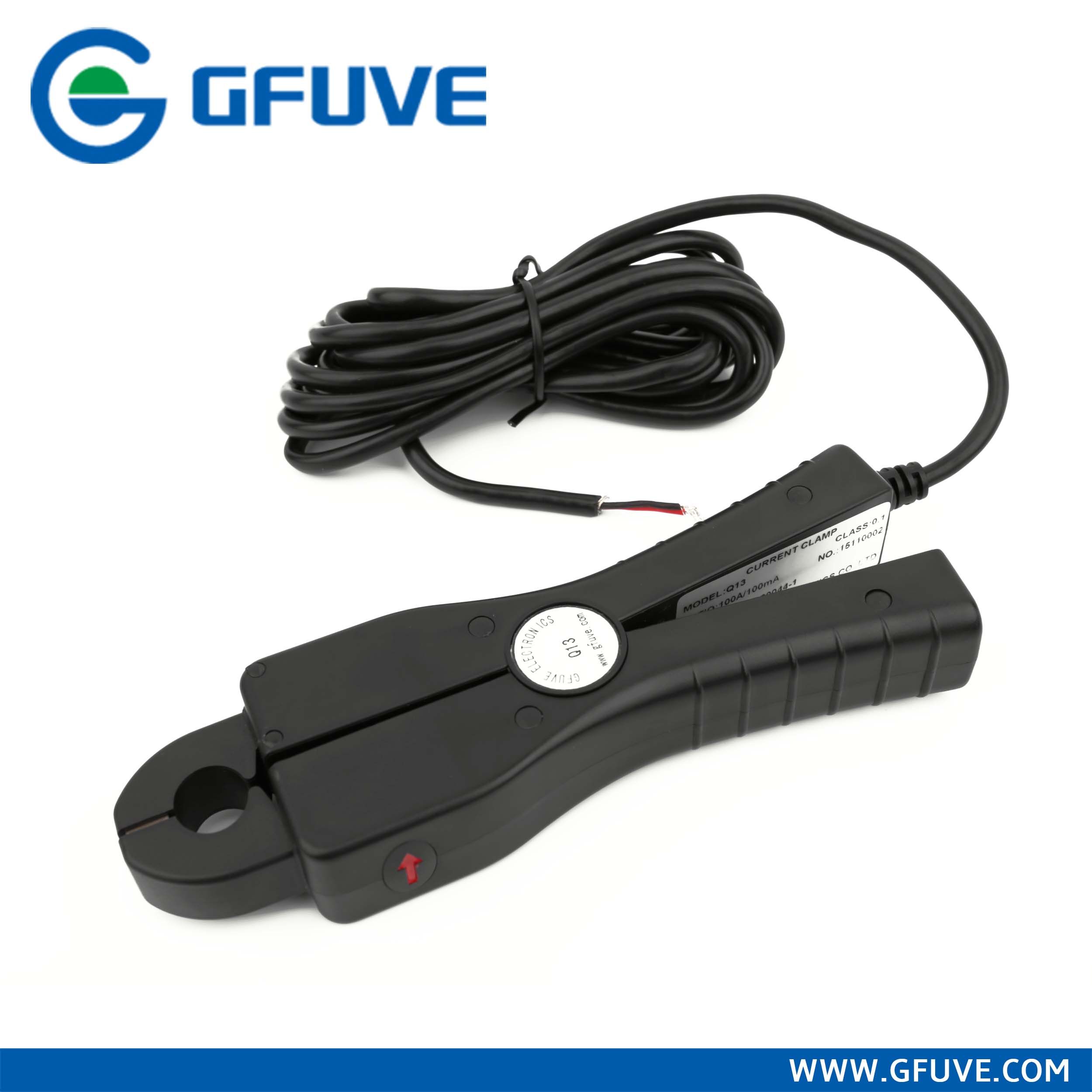

Q13 100A Max Clip on Current Sensor CT

Name: Q13 100A Max Clip on Current Sensor CT
Brand: all-electronics-online.com
SKU: 721862632
Availability: InStock
Rating: 4.8 (111 reviews)

Price:	US $ 100/Piece
Min Order:	3/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	Q13
Ratio:	1000: 1 or 2000:1 (Customized)
Accuracy Class:	0.1%, 0.2%
Primary Current:	0 - 100A AC
Secondary Current:	0 - 100mA AC (Customized)
Max. Cont. Input Current:	120A
Frequency Range:	40Hz-2000Hz
Dielectric Strength:	3kv 50Hz/60Hz at 1 Minute
Standard:	En 61010-1, En 61010-2-032, IEC60044-1
Weight (G):	300
Color:	Black
Application:	Instrument
Type:	Current Transformer
Phase:	Single

Product Description

Q13 100a max clip on current sensor ct
The Q13 is a high accuracy mini probe for measurements to 120A AC. This current probe uses a special magnetic core to provide higher accuracy and lower phase shift. The Q13 Series is an excellent probe to be used in power and low level current measurement applications.
Applications
1. Power quality measuring
2. Measuring around cable bundles
3. Power load monitoring
4. Waveform analysis
5. Energy meter calibrator
6. Measuring in breaker panels
7. HVAC
8. Residential and commercial sites
9. Data logging/recording
Features
1. Measurement range of 1mA to 120A AC
2. Improved ergonomic design and easy operation
3. High content nickel metal core
4. Low phase shift for power measurement
5. Small, compact size.
6. Jaw opening accommodates conductors up to 13mm diameter
7. Designed for DMMs, loggers, recorders and oscilloscopes
8. 40Hz to 10kHz response
9. 1mA/A AC output signals
10. Designed to EN 61010, 600V CAT III safety standard
11. UL, CE mark
Parameters

Electrical parameters
Ratio	1000: 1 or 2000:1 (customized)
Accuracy class	0.1%, 0.2%
Primary current	0 - 100A AC
Secondary current	0 - 100mA AC (customized)
Max. Cont. Input current	120A
Over voltage category	CAT III 600V
Frequency range	40Hz-2000Hz
Dielectric strength	3KV 50Hz/60Hz at 1 minute
Temperature range	-20°C to +55°C
Output	2.5 meter cable with D01 connector
Max. voltage not insulated conductors	600 V
Standard	EN 61010-1, EN 61010-2-032, IEC60044-1
Installation	Clamp type
Output mode	Lead output (2.5m)
Mechanical parameters
Dimensions (L x W x H) (mm)	45 x 160 x 25
Weight (g)	300
Holding wire diameter (mm)	φ13
Max. jaw opening (mm)	13
Color	Black
Material	PC+ABS+Polycarbonate, UL94 V0

Beijing GFUVE Electronics Co., Ltd. Was established in 2005. It combined science, industry and trade together as one high-tech enterprise. GFUVE mainly produces split core current transformer, high voltage ammeter recorder, IEC61850 test suite software, meter test equipment, current probe, reference standard meter, phantom load power source, electrical measurement instrument, relay test set, transformer test, handheld terminal and POS terminal, and power meter, power analyzer, intelligent digital meter, transducer, voltage transformer and current transformer models etc.

GFUVE is a leader manufacturer of energy meter test products and high voltage ammeter recorder in China. It is professional in energy meter test system, energy meter portable tester and related accessory of current probe. The product of high voltage ammeter recorder develops very quickly in the market. Our company has achieved certification to ISO9001. The products are sold to over 30 provinces in China and exported to overseas including South America, Middle East, South east and Africa.

We have been contributing ourselves to developing the durable and stable products for the usage of the power system. Contact us now for further business relationship. We are here to provide you the best service.
