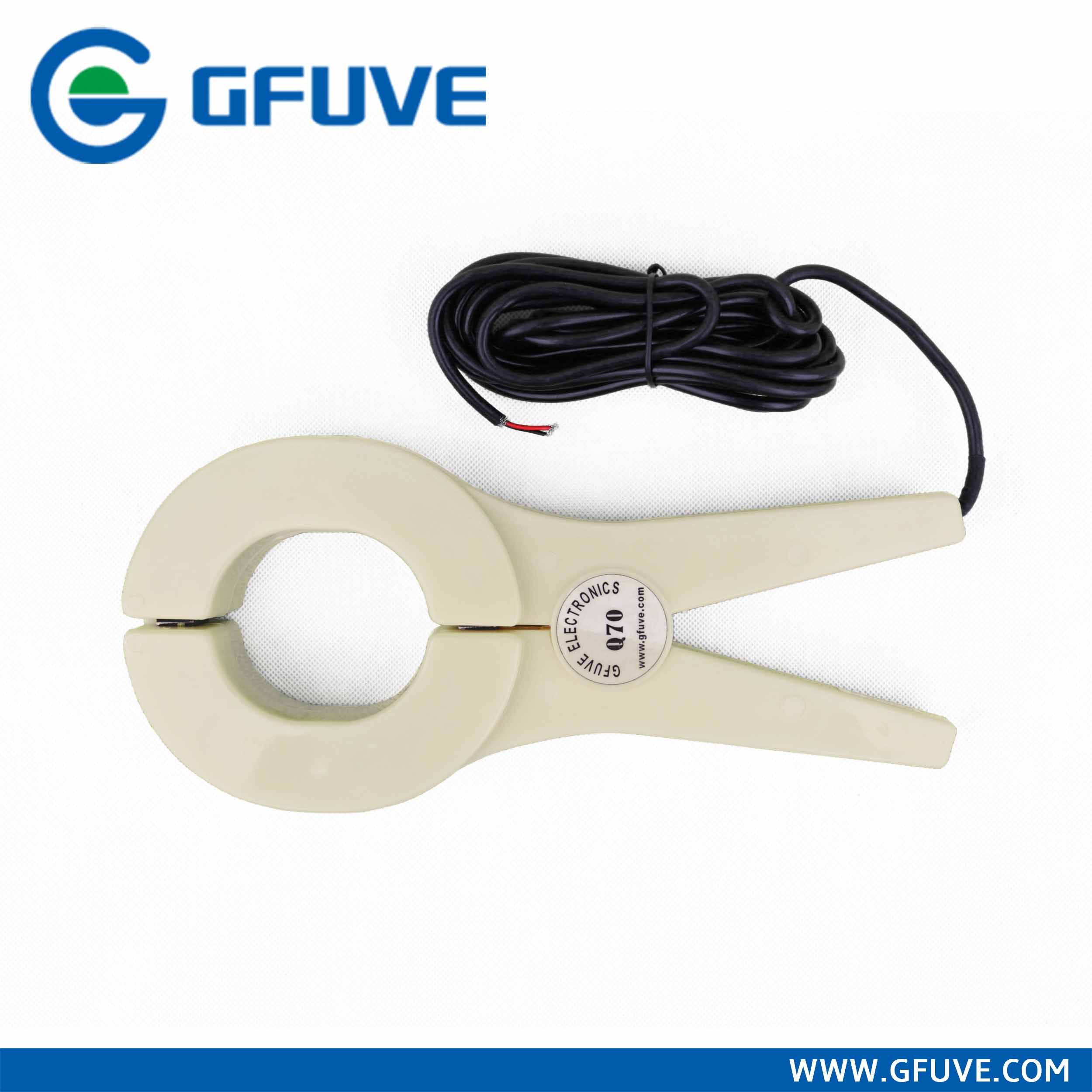

Q70 High Accuracy Clamp on Currnet Probe for Digital Oscilloscope

Name: Q70 High Accuracy Clamp on Currnet Probe for Digital Oscilloscope
Brand: all-electronics-online.com
SKU: 722113912
Availability: InStock
Rating: 4.6 (63 reviews)

Price:	US $ 35/Piece
Min Order:	3/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	Q70
Keyword:	Currnet Probes for Digital Oscilloscope
Model:	Oscilloscope Measuring Clamp on Current Probe
Ratio:	1000: 1 or 2000:1 (Customized)
Accuracy Class:	0.2%, 0.5%, 1%
Primary Current:	0 - 1000A AC
Standard:	En 61010-1, En 61010-2-032, IEC60044-1
Weight (G):	720
Max. Jaw Opening (mm):	60
Jaw Color:	White
Material:	PC+ABS+Polycarbonate, UL94 V0
Application:	Instrument
Type:	Current Transformer
Phase:	Single

Product Description

Q70 High accuracy clamp on currnet probe for digital oscilloscope
The model Q70 oscilloscope measuring clamp on current probe, it is suitable for 0-1000A current measurement, both cable and copper bus bar online measurement.
Features
It is suitable for 1000 A, the following cable, copper bus bar online measurement
Holding wire diameter: 60mm×70mm
Dimension: 122mm×275mm×35.5mm
Load capacity: mA output ≤4Ω, 1A output 0.1Ω, 5A output 2.5VA
Installation: clamp type
Output mode: lead output
Parameters

Electrical parameters
Ratio	1000: 1 or 2000:1 (customized)
Accuracy class	0.2%, 0.5%, 1%
Primary current	0 - 1000A AC
Secondary current	0 - 5A AC (customized)
Max. Cont. Input current	1200A
Over voltage category	CAT III 600V
Output signal (AC current)	500mA,1A,5A AC at nominal input current
Output signal (AC voltage)	500mV,1V,5V AC at nominal input current
Frequency range	40Hz-2000Hz
Dielectric strength	3KV 50Hz/60Hz at 1 minute
Temperature range	-20°C to +55°C
Output	2.5 meter cable with D01 connector
Max. voltage not insulated conductors	600 V
Standard	EN 61010-1, EN 61010-2-032, IEC60044-1
Installation	Clamp type
Output mode	Lead output(2.5m)
Mechanical parameters
Dimensions (L x W x H) (mm)	122 x 275 x 35.5
Weight (g)	720
Holding wire diameter (mm)	φ60 x 70
Max. jaw opening (mm)	60
Jaw Color	White
Material	PC+ABS+Polycarbonate, UL94 V0
