Qr540 Aluminum Trunk Cable

Name: Qr540 Aluminum Trunk Cable
Brand: all-electronics-online.com
SKU: 618484502
Availability: InStock
Rating: 4.3 (27 reviews)

Price:	US $ 0.6/Meter
Trade Terms:	FOB,CFR,CIF
Min Order:	1000/Meter
Pay Type:	L/C,T/T,Paypal,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	QR540
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Name:	Qr540 Trunk Cable
Center Conductor:	CCA
Application:	RF Cable
Conductor Material:	Aluminum
Cover Material:	PVC
Certification:	ISO
Type:	Trunk Cable
Model:	Qr540
Brand:	Softel

Product Description

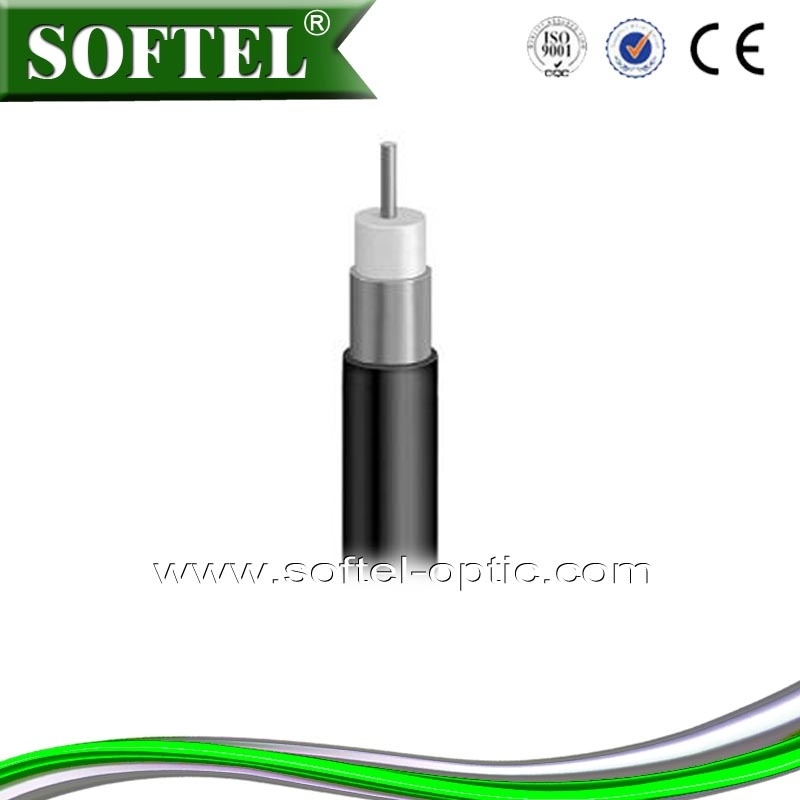

QR540 coaxial cable
1. Conductor insulated with a dielectric material
2. Surrounded by the other conductor

2014 NEW QR540 coaxial cable, QR500/540 cable/CCA material conductor, trunk cable/540 cable wth/without messager

QR 540M(QR 540M)
Description:

L center conductor: Φ 0.124(3.15mm) solid copper or CCA

L dielectric: Φ 0.514(13.05mm)foam PE

L shield: Aluminum tube, thickness 0.540(13.72mm)

L jacket: Φ 0.610 (15.49mm) (LDPE) thickness: 0.0357(0.89mm)

L messenger steelΦ 0.109(2.77mm)

L jelly/ADP: Per customer special requirement

Mechanical characteristic

L Minimum Bend Radius: 4.0(10.2cm)

L Maximum pulling tension=220Ibs. (100kgf)

Electrical performance

L Impedance: 75+2 Ohm

L Capacitance: 50+3pF/m

L Velocity of Propagation: 88%

L Nominal DC loop resistance@ 68° F: 4.27 Ohms/1000 ft. (14.01 Ohms/km)
