Hangzhou Softel Optic Co., Ltd. >> Qr540 Series CATV Trunk Coaxial Cable with Optional Messenger and Jacket

Qr540 Series CATV Trunk Coaxial Cable with Optional Messenger and Jacket

Qr540 Series CATV Trunk Coaxial Cable with Optional Messenger and Jacket
Price: US $ 0.815/Meter
Trade Terms: FOB,CFR,CIF
Min Order: 1000/Meter
Pay Type: L/C,T/T,D/P,Paypal,Money Gram
Prod Model: QR540
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Module Number: Qr540
Center Conductor: 3.15±0.01mm Solid Copper/Copper Aluminum
Dielectric: 13.03±0.05mm Foam PE
Outer Conductor: 13.72mm Aluminum Tube
Outer Conductor Thickness: 0.343mm
Jacket: 15.49+0.05mm PVC / PE
Jacket Wall Thickness: 0.89mm
Messenger(Optional): 2.77mm Steel
Jelly/Apd: Per Customer' Special Requirement
Application: Coaxial Cable
Conductor Material: BC/CCS/CCA/TC/CU/CCAG
Cover Material: PVC
Certification: CCC
Type: Coaxial Cable
Brand: Softel

Product Description

Hot Sale QR540 Series CATV Trunk Coaxial Cable with Optional Messenger and Jacket

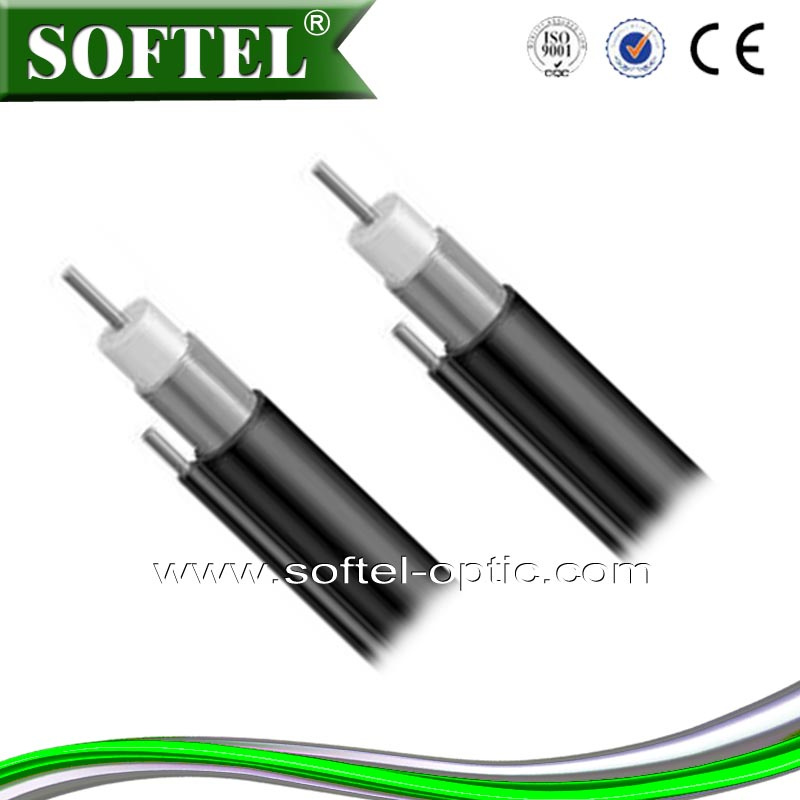

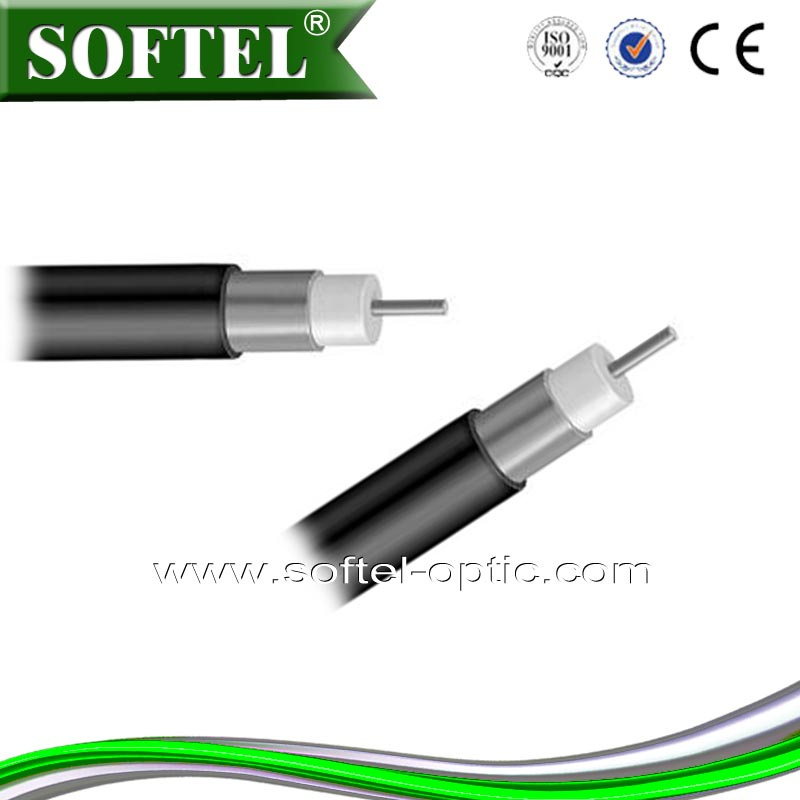

-Product Display



-Construction
Center conductor: 3.15±0.01mm Solid Copper/Copper Aluminum
Dielectric: 13.03±0.05mm foam PE
Outer Conductor: 13.72mm Aluminum Tube
Outer Conductor: 0.343mm
Jacket: 15.49+0.05mm PVC / PE
Jacket Wall Thickness: 0.89mm
Messenger(optional): 2.77mm Steel
Jelly/APD: Per Customer' Special Requirement

-Characteristics
Min. bending radius: 10.2mm(jacketed)
Max. pulling tension: 100kg
Min. thickness strength
Of messenger: 816kg
Impedance: 75+2Ohm
Capacitance: 50+3nF/km, 15.3+1pF/ft
Velocity of Propagation: 88%

-Nominal D.C. resistance @20
Copper clad:
Inner conductor 3.34ohms/km
Outer conductor 1.94ohms/km
Loop 5.28ohms/km


-Workshop


-Our Team

Hangzhou Softel Optic Co., Ltd. (Brand: SOFTEL) was established in 2006, which Located in the HangZhou Hi-Tech Development Zone. Taking advantage of the modern broadcast and optic fiber communication technology, we are specializing in R&D of CATV system equipment, and leading manufacturer of HFC broadband Optic Transmission equipment with strong R&D capability in this field.

We have more than 100 staff in which 10% of senior technicians. It has more than 1, 000 square meters standards production assembling line, we have strict QC procedure, each unit of our products will go through 3 layer QC procedure, material checking before production, stability and performance testing after production, packing checking before delivery.

Currently, we supplying to numerous agents, integrated dealers and equipment producers all over the world, most of our products move to South America, Russia and north European countries.

Through keen international business competition in good faith, all of our staffs feel big accomplishment & work under heavy responsibility. In addition, we are much proud of providing our invaluable customers with our high quality, high reliability, high efficiency, competitive products.
