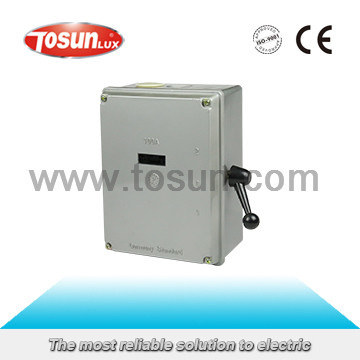

QS5 Cam Starter for Electric Motor

Name: QS5 Cam Starter for Electric Motor
Brand: all-electronics-online.com
SKU: 754885085
Availability: InStock
Rating: 4.9 (59 reviews)

Price:	US $ 1.2-45.5/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	100/Piece
Pay Type:	L/C,T/T,Paypal,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	QS5
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Mark:	I-O, I-O-I, I-O-2
Rated Current:	15-100A
Electrical Life:	80000 / 100000 Times
Frequency Of Operation:	180 / 200 Per Hour
Position Of Lever:	0-60 / 60-0-60
Rotary Number:	Single Button
Certification:	CE
Usage:	Vehicle
Standard:	Standard
Condition:	New

Product Description

Specification

Model	Mark	Rated current (A)	Motor control capacity(HP)	Electrical life (times)	Mechanical life ( times)	Frequency of operation (per hr)	Applications	Position of lever
QS5-15A	I-O	15	5.5	100000	250000	200	ON-OFF Switching	0-60
QS5-30A		30	10
QS5-15N	I-O-I	15	5.5				Forward & reverse	60-0-60
QS5-30N		30	10
QS5-15P/3	I-O-II	15	5.5				for 3 pole two circuits	0-60
QS5-30P/3		30	10
QS5-63A	I-O	63	22	80000	200000	180	ON-OFF Switching	0-60
QS5-100A		100	30
QS5-63N	I-O-I	63	22				Forward & reverse	60-0-60
QS5-100N		100	30
QS5-63P/4	I-O-II	63	22				for 4 pole two circuits	60-0-60
QS5-100P/4		100	30
