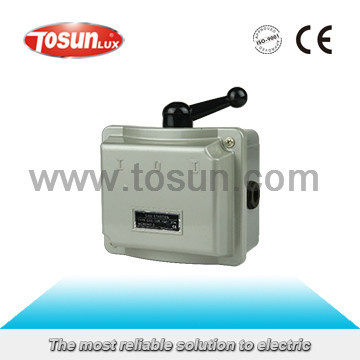

QS5 Cam Starter

Name: QS5 Cam Starter
Brand: all-electronics-online.com
SKU: 805203885
Availability: InStock
Rating: 4.6 (76 reviews)

Price:	US $ 1-5/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	QS5-15N
Electrical Life:	100000
Mechanical Life:	250000
Rotary Number:	Single Button
Usage:	Machinery
Standard:	Standard
Operation:	Protection Type
Certification:	CE
Condition:	New

Product Description

PRODUCT DESCRIPTION:

1. High quality QS Series Cam Starter is mainly used to start, stop, forward or backward directly three-phase asynchronous electric motor with AC 50Hz, voltage up to 500V and capacity up to 7.5KW.
2. It can also be used for changeover from one kind of circuit to the other.

SPECIFICATION:

Type	Mark	Rated Current (A)	Motor Control Capacity (HP)	Electrical Life (times)	Mechanical Life (times)	Frequency of Operation (per hr)	Applications	Position of Lever
QS5-15A	1-o	15	5.5	100000	250000	200	ON-OFF switching	0-60
QS5-30A		30	10
QS5-15N	1-o-1	15	5.5				Forward&Reverse	60-0-60
QS5-30N		30	10
QS5-15P/3	1-o-2	15	5.5				For 3 pole two circuits	60-0-60
QS5-30P/3		30	10
QS5-63A	1-o	63	22	80000	200000	180	ON-OFF switching	0-60
QS5-100A		100	30
QS5-63N	1-o-1	63	22				Forward&Reverse	60-0-60
QS5-100N		100	30
QS5-63P/4	1-o-2	63	22				For 4 pole two circuits	60-0-60
QS5-100P/4		100	30
