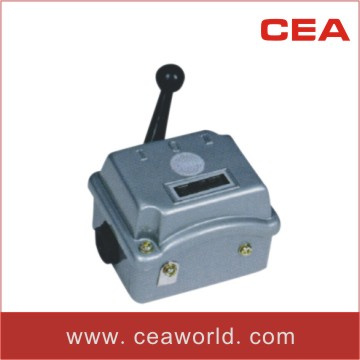

QS5 Cam Starters (Changeover Switches / Cam Switches/Rotary Switch)

Name: QS5 Cam Starters (Changeover Switches / Cam Switches/Rotary Switch)
Brand: all-electronics-online.com
SKU: 690466865
Availability: InStock
Rating: 4.8 (48 reviews)

Price:	US $ 1.031/Piece
Trade Terms:	FOB,CIF
Min Order:	1000/Piece
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	CEK5
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Rated Voltage:	500V
Capacity:	7.5kw
Other Type:	15A,30A,63A,100A
Usage:	Digital Products
Operation:	Knob
Condition:	New

Product Description

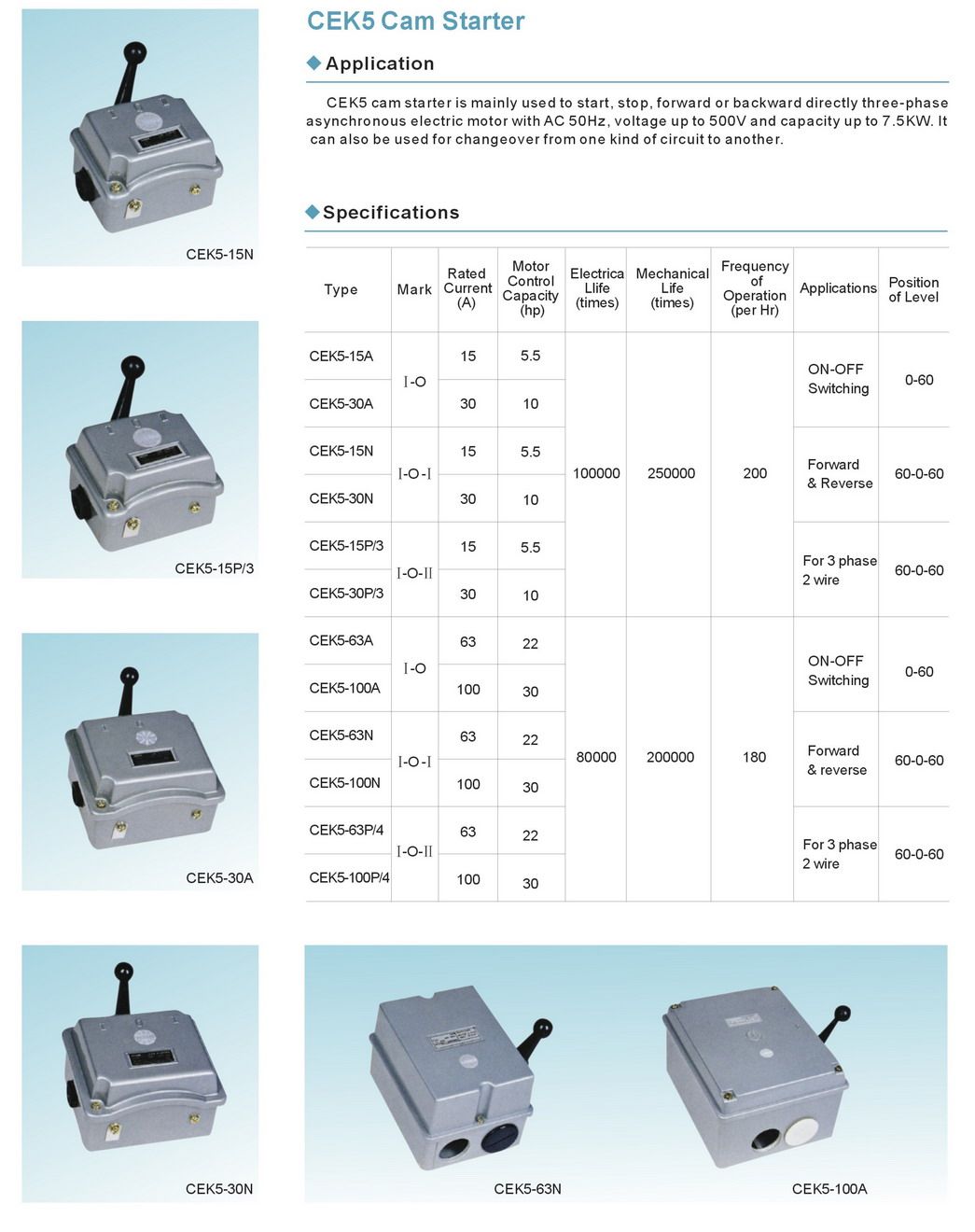

CEK5 cam starter is mainly used to start, stop, forward or backward directly threephase asynchronous electric motor with AC 50Hz, voltage up to 500V and capacity up to 7.5KW. It can also be used for changeover from one kind of circuit to another.

Products Detail

Mark	Rated Current (A)	Motor Control Capacity (hp)	Electrical Life (times)	Mechanical Life (times)	Frequency of Operation (per Hr)	Applications	Position of Level
I-O	15	5.5	100000	250000	200	ON-OFF Switching	0-60
	30	10
I-O-I	15	5.5				Forward & Reverse	60-0-60
	30	10
I-O-II	15	5.5				For 3 phase 2 wire	60-0-60
	30	10
I-O	63	22	80000	200000	180	ON-OFF Switching	0-60
	100	30
I-O-I	63	22				Forward & Reverse	60-0-60
	100	30
I-O-II	63	22				For 3 phase 2 wire	60-0-60
	100	30

Factory photos

Founded in 1999, CEA Group International Co., Ltd.Is being acknowledged as one of the most respected nationwide manufacturers and exporters of low voltage electrical apparatus in P.R of China.

The Group, comprising 5 factories, owns a production area of 50, 000m2 and employs more than 1, 000 staff.During the past 13 years, we invested abundant resources in both research and development and employee training programs.The company was ranked in the front of 100 tops of wenzhou private enterprises." CEA" is named as a famous trademark in domestic and overseas markets.Our company has took the lead in applying IS09001 Quality Management System and ISO14001 Environmenttal Management System.Many products are certified under international certificate, such as CB, CE, BS, VDE, UL, SONCAP, CCC.

Currently, we have manufactured and exported more than 160 varieties of products, with over 2000 types of low voltage electrical apparatus including all kinds of LED lighting, Circuit Breakers, Contactors, Relays, Starters, Switches, , Wire & Cable and Electrical Accessories etc.As a result of our high quality products and outstanding customer service, we have gained a global sales network reaching South East Asia, Middle East, South America, Africa, Europe.

We are fully aware of the fact that only "Versatile Staff, Distinctive Quality and Advanced Technology"enable us to survive and succeed in today's intensively competitive market.Hence, we will be with overall technology support, good service to meet the requirements of world.

Enquiries from both domestic and overseas customers are cordially welcomed.Just Tell Us Your Requirements and Let Us Do The Rest For You!
