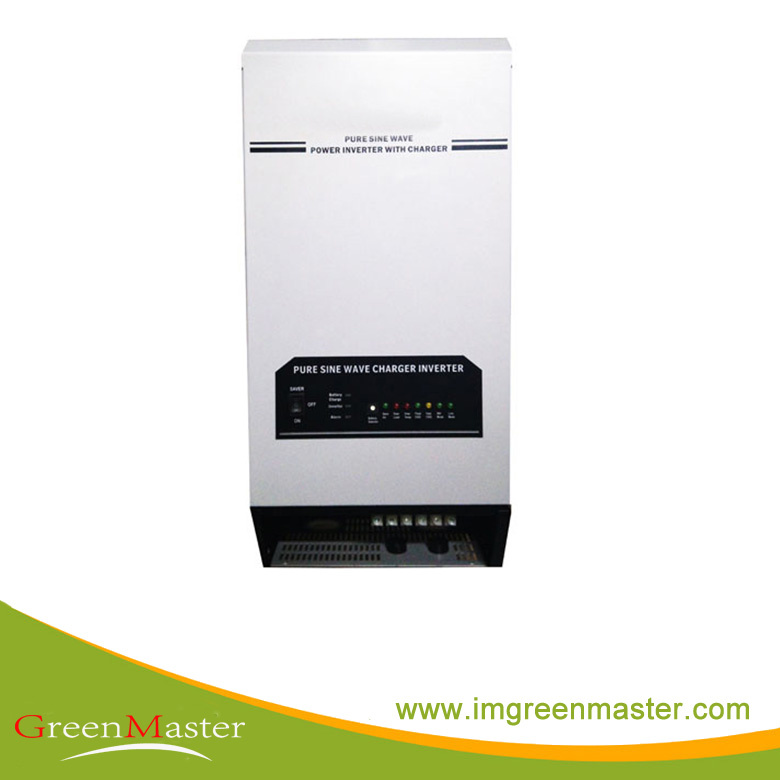

R-Psw4K-6kw Low Frequency Sine Wave Home UPS

Prod Model:	R-Psw4K-6kw Low Frequency Sine Wave Home UPS
Product Name:	R-Psw4K-6kw Low Frequency Sine Wave Home UPS
R-Psw1kw-3kw Low Frequency Sine Wave Hom:	4-6kw
Power Factor:	0.9~1.0
Static Power Capacity:	Max 12W

Product Description

R-PSW4K-6KW Low Frequency Sine wave Home UPS

* I/P: 220VAC or 110VAC

* O/P:220VAC  or 110VAC ± 10%

* Capacity:4KW/5KW/6KW

* Output:  PF 0.9-1.0, Pure sine wave

* Stand By Function

* Transfer Time <10 ms(typical)

* DC Voltage: 24/48VDC(4KW/5KW/6KW)

* *Ring Transformer ,70% less consume than EI Transformer



Key Features:

1.low frequency pure sine wave with Charger(HOME UPS)

2.Power saver Function ( Stand by)

3.High Power Factor0.9-1.

4.low DC input, 8KW,10KW, 12KW , 48VDC or 96VDC

5.adjustable charge current,50A-100Amp

6.Transfer Time 10ms. Computer will not shut off when Mains off suddenly.

7.Digital control Three stage charger, improve battery life

8.Battery Selector for charge of different battery

9.Full protection,short circuit,Overload,over Temp.,

10.Battery low/high Protection

11.LED and LCD display and alarm

12.Wall mounting

13.Rs232 communication function optional.

14.SNMP Net Agent function optional.

15.Remote control cable optional

16.LCD Display is optional

17.Adjustable charge current is option


Technical Specifications

Item	Model	R-PSW4K	R-PSW5K	R-PSW6K
Capacity	VA / Watts	4KVA/4KW	5KVA/5KW	6KVA/6KW
Surge rating (10s)		12KVA	15KVA	18KVA
Efficiency		>95% under AC mode,>88% under DC mode
Power Factor		0.9~1.0,
Static Power Capacity		Max 12W
Input	Normal voltage	220VAC/110V
	220V Voltage range	184-270V+-4%
	110V Voltage range	85-150V+-4%
	Frequency range	50Hz/60HZ -3 +5 Hz (Auto detection)
Output	Voltage (V)	220V/110V+-10%
	Frequency (Hz)	50Hz/60HZ +-0.3 Hz
	Wave form	Pure Sine Wave
	bypass without Battery	yes. AC MODE output from bypass
Transfer Time		10 ms (typical)
Overload capacity	DC Mode(SMPS load)	(110%(125%Load>150% ±10% for 20s
	AC Mode(SMPS load)	by breaker
Protection	Overload	Current limit under DC mode ,Breaker under AC mode
	Battery Protection	Over charge, Over discharge,DC Breaker,Alarm
	Over Temperature	Variable speed fan,LED lighting and alarm
	Back-Feed Protection	yes
	short Circuit.	by breaker.Faul after 10 secs
Battery/Charger	AC Charge range	95-127V,  194(164)--243V
	DC input	12VDC /24VDC or 48VDC,external Battery
	Charge Voltage	12VDC system,Boost voltage 14-15.5V selectable for different Battery. The others are multiple
	Charger Current	12-75AMP difference for different mode
	Charge Manage	digital control,Three stage charger
Display	LED	Line On/ Inverter on / Fast Charger / Float charge / Over Temp. trip / Over load trip / Power Saver on
	LCD	Option. BAT % , INPUT VAC HZ, OUTPUT VAC HZ, LOAD %
Audible Alarm		Battery Low,Battery High,Over Temp. Over load,Fail,Over charge
Optional		RS232 Communication,SNMP Net Agent,Remote Control, Adjustable charge current
Power Saver		below 25W when enabled.loading checking 2 time/sec.
Working Environment	Temperature	0°C to 40°C
	Noise	60dB max
	Humidity	5% to 95%
PCS/CTN		1	1	1
Package Size	WxDxH (mm)	705*320*303	705*320*303	705*320*303
Net /Gross Weight		35/38	38/41	40/43
