| Prod Model: |
RT |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Warranty: |
12 Months |
| Display: |
LED/LCD Indicators |
| Frequency: |
50Hz/60Hz |
| UPS Type: |
Rack Mount Type |
| Phase: |
Single Phase |
| Type: |
On-line |
| Protection: |
Overvoltage |
| Brand: |
Upsen |
Product Description

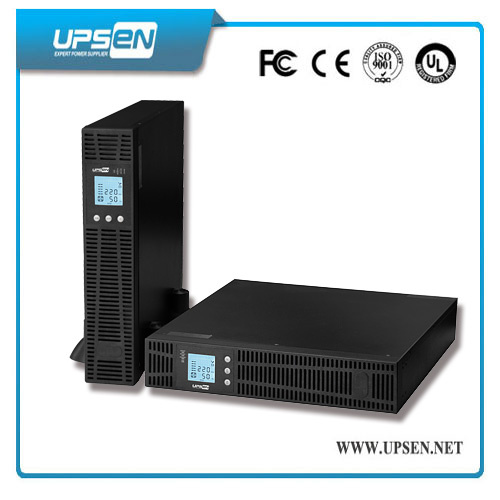

Rack mount 19" high frequency online UPS with lcd display
High Frequency Online UPS Rack Tower Star Series RT 1K-10KVA(1Ph in/1Ph out)
Key Features:
1:Full digital control (DSP)
2:Rack Mount - Tower Convertible
3:Self-detection when UPS start-up
4:Input neutral and live wires reverse detection
5:Diverse options of accessories, intelligent management
6:Comprehensive protection for the total unit
7:friendly and intuitive interface, full protection for the equipment
8:Allowable start UPS by cold start or direct current start
9:It provides the best power source guarantee for the load equipments for users.
10:Emergency Power off (EPO), timely protect your ups without battery
11:Intelligent slot optional: USB /SNMP /Dry contact Board
12:Active Input Power Factor Correction (PFC), UPS can correct the input power factor. Under full load, the input power factor can reach over 0.95 so that the electric environment of the users will not be polluted.
Applications
Servers, Military,Medical Systems,Network sensitive electronic equipment,Astronautics,Electronic & Telecom
,Army Technology,Securities System,Sensitive Electronic Equipment,Wind Power System etc.
Technical Specification
MODEL(RT Series) | RT1K | RT1KL | RT2K | RT2KL | RT3K | RT3KL | RT6KL | RT10KL |
| Input | Rated Capacity | 1KVA/800W | 2KVA/1600W | 3KVA/2400W | 6KVA/4800W | 10KVA/8000W |
| Voltage | 90 ± 5 ~290 ± 5Vac | 176 ~ 276Vac |
| Current | 6A(max) | 12A(max) | 16A(max) | 31A(max) | 60A(max) |
| Frequency | 40 ~ 60 Hz |
| Power factor | Conformity EN60555-2(≥0.95) | ≥0.95(MAX) |
| Output | Voltage | 220Vac ( 1 ± 2%) | 220Vac ( 1 ± 1%) |
| Current | 4.55A | 9.1A | 13.6A | 27.3A | 54A |
| Frequency | (50 ± 2)Hz | (50 ± 1)Hz |
| Power Factor | 0.8 lag |
| Waveform | Sine Wave |
| Waveform | Linear ≤ 7% when RCD 100% loading (Non-line) |
| Distortion | Linear ≤ 3% when RCD 100% loading (line) |
| Overload protection | 105%< <125% → 50s | 100%-125%, 1 minutes to |
| 125%< <150% → 25s | transfer to bypass; >150%, |
| >150% → 300s | 100ms to transfer to bypass |
| Transfer Time | Oms |
| Type of Battery | Sealed lead acid maintenance-free |
| External Battery Voltage | 3x7 Ah | 36Vdc | 6x7 Ah | 72Vdc | 8x7 Ah | 96Vdc | 192Vdc/240Vdc |
| Working | Operating | 0-40ºC |
| Environment | Temperatures(ºC) |
| Relative | 0-90(%) |
| Temperature(ºC) |
| Altitude | <1500m |
| Communication | 9pin D trpe comector (RS232) |
| Size (WXDXH) mm | 482x450x88 | Standard Type (3U): 482x680x132.5 | 482x680x132.5 |
| Long Backup Type (2U): 482x450x88 |
| Weight (kg) | 14.5 | 8 | 22 | 9.8 | 26 | 9.8 | 20 | 25 |
