| Prod Model: |
Rack Mount Online UPS |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Nominal Voltage: |
110115//120VAC or 220/230/240VAC |
| Input Power Factor: |
0.97 |
| Frequency: |
46~54Hz or 50Hz ± 0.2Hz |
| Output Power Factor: |
0.7/0.8 Optional |
| Phase: |
Single Phase |
| Type: |
On-line |
| Protection: |
Short Circuit |
Product Description
Product Description

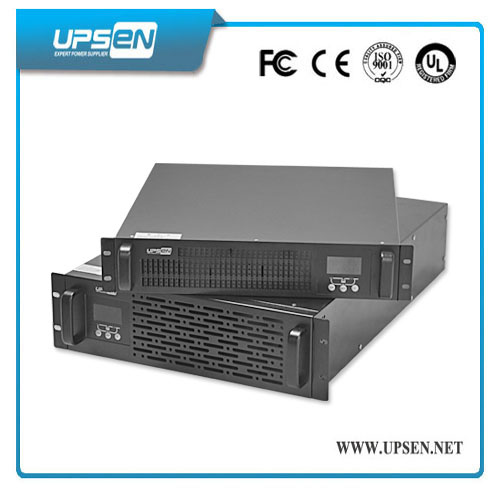

3U Rack UPS with Pure Sine Wave Output and Long Backup time
1.Rack Mount online UPS for north America
2.Rack Mount online UPS with good service
3.Rack Mount online UPS is 19 inch 2u 3u
4.Rack Mount online UPS is 1k-10kVA with high quality
UPS Applications
RM Series 1kVA~10kVA High Frequency Rack Mount Online UPS is specially designed for
Servers, data-center critical network devices, sensitive electronic equipment, telecom, bank,
Hospital, bureau, traffic, public security, ATM and so on.
UPS Key Features
1: True online double conversion technology with advanced Microprocessor Control
2: PWM Technology with IGBT
3: LED/LCD Indicators display Detailed Real-Time UPS Status and parameters.
4: Set Output Voltage, Frequency parameter and bypass function on the display.
5: Advanced MCU microprocessor control technology, ensure long life reliability.
6: Wide input voltage range, Zero transfer time
7: Rack mount 19"design 2U/3U Height to save space
8: Excellent Protection against over voltage, over load, over current, over charge and so on.
9: Input L and N lines reverse wiring detection, Auto start when AC back.
10: DC start function, Input PFC revise function.
11: Humanization bypass output, can be adjustable.
12: Smart RS232 communication with monitoring software
13: Intelligent slot available for AS-400 Dry contact and SNMP card Remote control
14: Strong antijamming capability
15: Available to work with generators.
16: Lightning, surge, short circuit, Network/fax/modem surge protection
Rack Mount Star Series RM1K-10K |
| Model | RM1K | RM2K | RM3K | RM1KL | RM2KL | RM3KL | RM6KL | RM10KL |
| Input | Phase | Single Phase with Ground |
| Nominal Voltage | 110115//120Vac or 220/230/240Vac | 220/230/240Vac |
| Voltage Range | 60-138VAC or 115 ~ 300VAC | 176 ~ 276VAC |
| Frequency Range | 46 ~ 54Hz(default), user adjustable within 40~60Hz | 46 ~ 54Hz |
| Power Factor | 0.97 | 0.98 |
| Connection | IEC320-10A inlet | IEC320-16A inlet | IEC320-10A inlet | IEC320-16A inlet | Terminal Block |
| Output | Phase | Single Phase |
| Voltage | 110/115/120Vac or 220/230/240VAC ± 2% | 110/115/120Vac or 220/230/240VAC± 1% |
| Frequency | 46~54Hz or 50Hz ± 0.2Hz (Line mode) | 46~54Hz (Line mode) |
| 50Hz ± 0.2Hz ( Battery mode) | 50Hz ± 0.05Hz ( Battery mode) |
| Waveform | Pure Sine Wave |
| Power Factor | 0.7/0.8 Optional |
| Overload Capability | 108%~150% for 30 sec., 150% for 300 ms | 105%~130% for 10 min.,130% for 1 min. |
| Current Crest Ratio | 3:1 |
| Connections | IEC320 -10A * 4 | IEC320-10A and Terminal Block | IEC320 -10A * 4 | IEC320-10A and Terminal Block | IEC320-10A * 4 and Terminal Block |
| Bypass | Automatic Transfer | on overload and UPS failure |
| Before UPS Power-on | Default "NO", user adjustable to "YES" | Yes |
| Voltage Range | 80~264VAC (Default), user adjustable within 80~286VAC | 176 ~ 261VAC |
| Transfer Time | 0 ms; less than 4 ms from inverter to bypass and vice versa | Zero |
| LED /LCD indicators | Load level / Battery level, Battery , Utility Power, Inverter, Bypass, Overload, Fault |
| Audible Alarm | Bypass, On battery mode, Battery low, Overload, Fault |
| Communications | RS-232 Serial Interface |
| Intelligent Slot; |
| OPTIONS: WEBPOWER SNMP/WEB card, AS400 card or WinPower CMC) |
| Network Surge Protection | RJ45 I/O port available for network or Fax/Modem |
| Environmental | Operating Temperature | 0 ~ 40°C |
| Operating Humidity | 20 ~ 90% non-condensing |
| Main Unit | Net Weight (Kg) | 16.3 | 10.3 | 11.2 | 9.1 | 11.5 | 12.3 | 18.3 | 20.3 |
| Dimensions (W x D x H) mm | 482 x 420 x 88 (2U) | 482 x 420 x 88 (2U) or (3U Internal Batteries) | 482 x 420 x 88 (2U) | 482.6 x 600 x 130 (3U) |
| Battery Pack | Type | Internal Batteries | External Battery Pack |
| Nominal DC Voltage | 36VDC | 72VDC | 96VDC | 36VDC | 72VDC | 96VDC | 240VDC |
| Battery Numbers & Capacity | 3Pcs *12V7.2Ah | 6Pcs *12V7.2Ah | 8Pcs *12V7.2Ah | Depending on the capacity of external battery packs |
| Backup Time (Full load) | 5 min | 7min (with 1 BP) | 5 min (with 1 BP) |
|
| Recharge Time | 5hrs to 90% | 5hrs to 90% | 5hrs to 90% |
| Charging Current (Max.) | 1.0A | 1.0A | 1.0A | 8A±1A | 4.2A |
| Charging Voltage | 41.1Vdc±0.6V | 110Vdc±0.4V | 41.1Vdc±0.6V | 110Vdc±0.4V | 274Vdc±1%V |
| Net Weight (Kg) | --- | 25.3 | 25.3 | --- | --- | --- | --- |
| Dimensions (W x D x H) mm | --- | 482 x 420 x88 (2U) | 482 x 420 x88 (2U) | --- | --- | --- | --- |
| *Specification is subject to change without prior notice. |
