Re-Y (C) Y PVC Insulated PVC Sheathed Cwb Shield Instrument Cables

Re-Y (C) Y PVC Insulated PVC Sheathed Cwb Shield Instrument Cables
Price: US $ 0.8-50/Meter
Min Order: 500/Meter
Pay Type: L/C,T/T
Prod Model: Re-Y(C)Y
Rated Voltage: 300/500V
Refer Standard: BS En 50288-7,,IEC 60502-1
Core: 1-40
Type: Insulated
Conductor Material: Copper
Insulation Material: PVC
Conductor Type: Solid or Stranded
Application: Computer,Electrical Appartus,Instrument
Range Of Application: Computer,Electrical Appartus,Instrument
Brand: Jl

Product Description

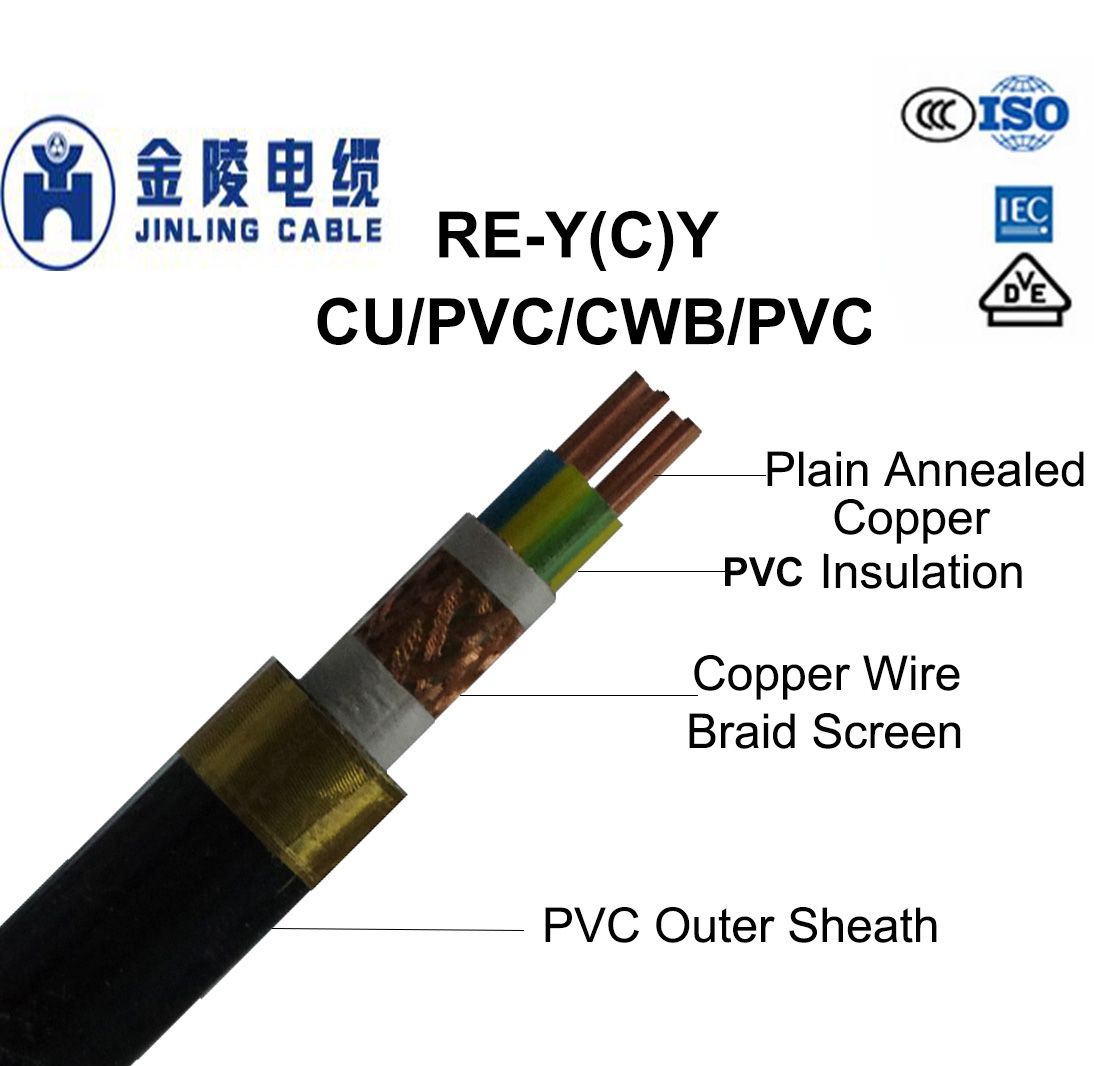

Structure:
Copper Conductor, PVC Insulated, Tinned copper wire braid(CWB) screened PVC Sheathed Instrumentation cable
Standards:
BS EN 50288-7,,IEC 60502-1

APPLICATION:
These cables are designed to connect electrical instrument circuits and provide communication services in and around process plants (e.g. petrochemical industry etc.). Not suitable for direct burial applications.

PhysIcal and Thermal Properties
Conductor: Annealed copper solid Class 1 or plain copper stranded Class 2
Voltage Rating: 300V/500V
Test Voltage:1200V/2000V
Temperature range During operation (fixed state): -30°C - +70°C
Temperature range During Installation (Mobile state): -5°C - +50°C
Minimum bending radius: 7.5 X Overall Diameter


Electrical Data:

ConductorInsulationMutual Capacitance
Nominal Cross SectionResistanceResistance
at 20°Cat 20°C

 max.min.max.
mm2ohm/kmMohm.km pF/m

0.536.75000115
0.75255000115
118.55000115
1.512.35000115

Cable Parameter:

No.x2xCross SectionNominal Overall DiameterApprox. Weight
No.x2xmm2Kg/kmKg/km
0.5mm2, Multipair
1x2x0.508.3110
2x2x0.5010.7143
4x2x0.5011.1159
5x2x0.5011.9181
6x2x0.5013.6230
8x2x0.5014.2264
12x2x0.5016.4343
16x2x0.5018.2418
20x2x0.5019.7487
24x2x0.5021.1557
0.75mm2, Multipair
1x2x0.758.2119
2x2x0.7511.4160
3x2x0.7511.9185
4x2x0.7512.7214
6x2x0.7514.6278
8x2x0.7515.4324
12x2x0.7517.8427
16x2x0.7519.8526
20.x2x0.7521.5623
24x2x0.7523.1714
1mm2, Multipair
1x2x1.08.8135
2x2x1.012.3184
3x2x1.012.8214
4x2x1.013.7251
6x2x1.015.6326
8x2x1.016.4382
12x2x1.019511
16x2x1.021.2636
20.x2x1.023.5775
24x2x1.025.3892
1mm2, Multipair
1x2x1.511.5215
2x2x1.514.5300
3x2x1.515.5342
4x2x1.516.5385
6x2x1.519.5535
8x2x1.521.5652
12x2x1.524.6879
16x2x1.326.81090
20x2x1.530.51324
24x2x1.534.41589
