| Prod Model: |
GW9C |
| Breaking Capacity: |
High |
| Type: |
Current Fuse |
| Usaga: |
High Voltage |
Product Description

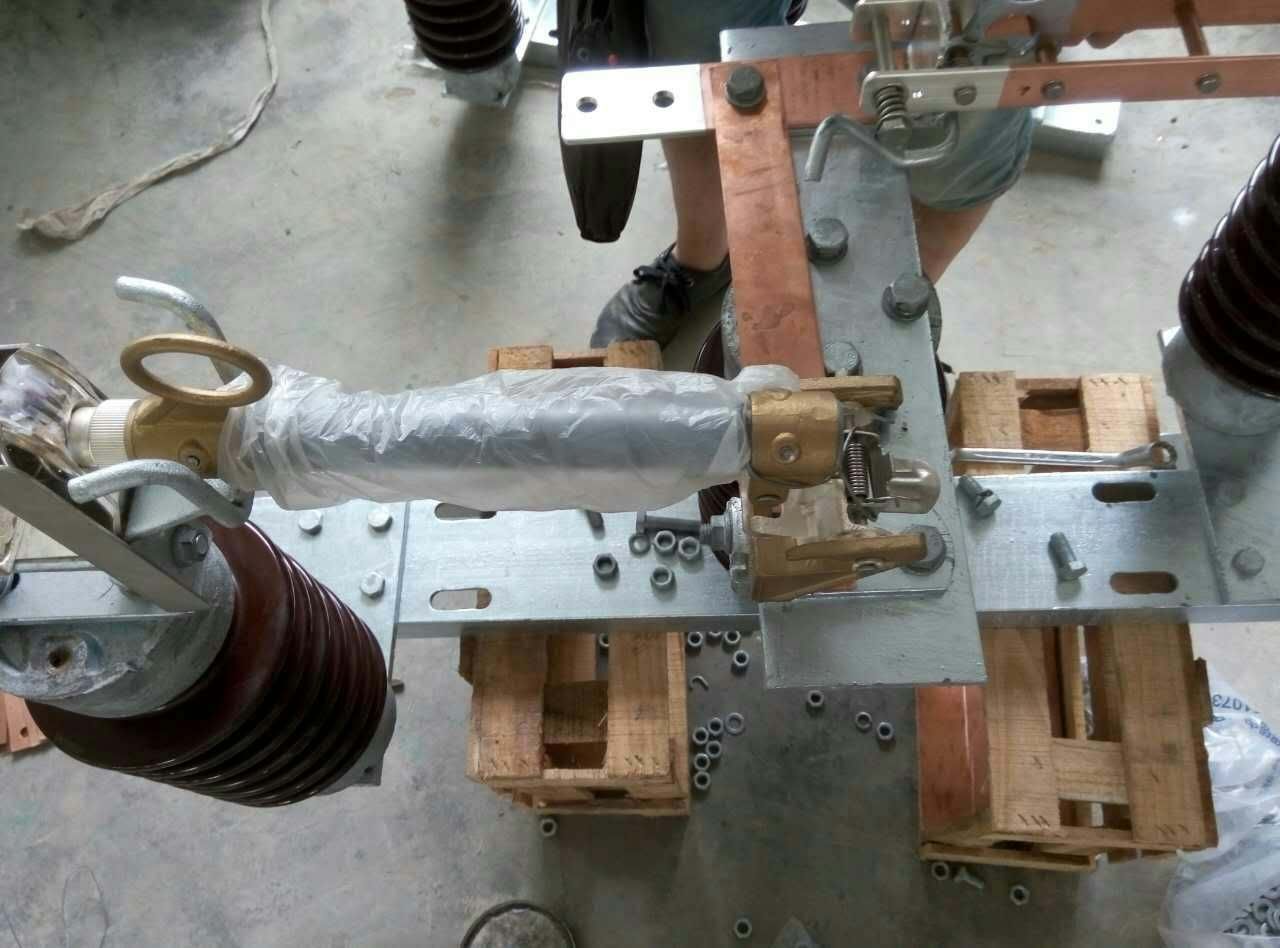

Fuse Disconnect Switch
Voltage: 15kV and 27 kV
Current: 100 A or 200 A fuseholder rating, 600 A disconnect switch rating
Fuse Interrupting Capacity: 15 kV and 27 kV, 100 or 200 A fuseholder 7,100 A Symmetrical
Momentary: 28 kA momentary on switch
BIL: 110 kV and 150 kV BIL
Insulators: ANSI standard station post - A ,B,C
Base: Galvanized structural steel channel
Terminals: Two bolt bridge type for 666.6 MCM ACSR
Adapters to convert to ANSI standard two-hole terminal pads available upon request at additional charge
Companion Switch
Voltage: 27 kV and 15 kV
Current: 600 A continuous
Momentary: 40 kA momentary on switch
BIL: 110 kV and 150 kV BIL
Application: For use when there is a maximum requirement for safety and continuity of service The fused GW9C bypass disconnect combination provides safe isolation of the CHZ4 while maintaining service continuity with a fuse protected circuit
Features: The cutout portion of the combination is a base mounted HX, and will accommodate both 100 A and 200 A fuseholders, The disconnect switches have 600 A continuous rating

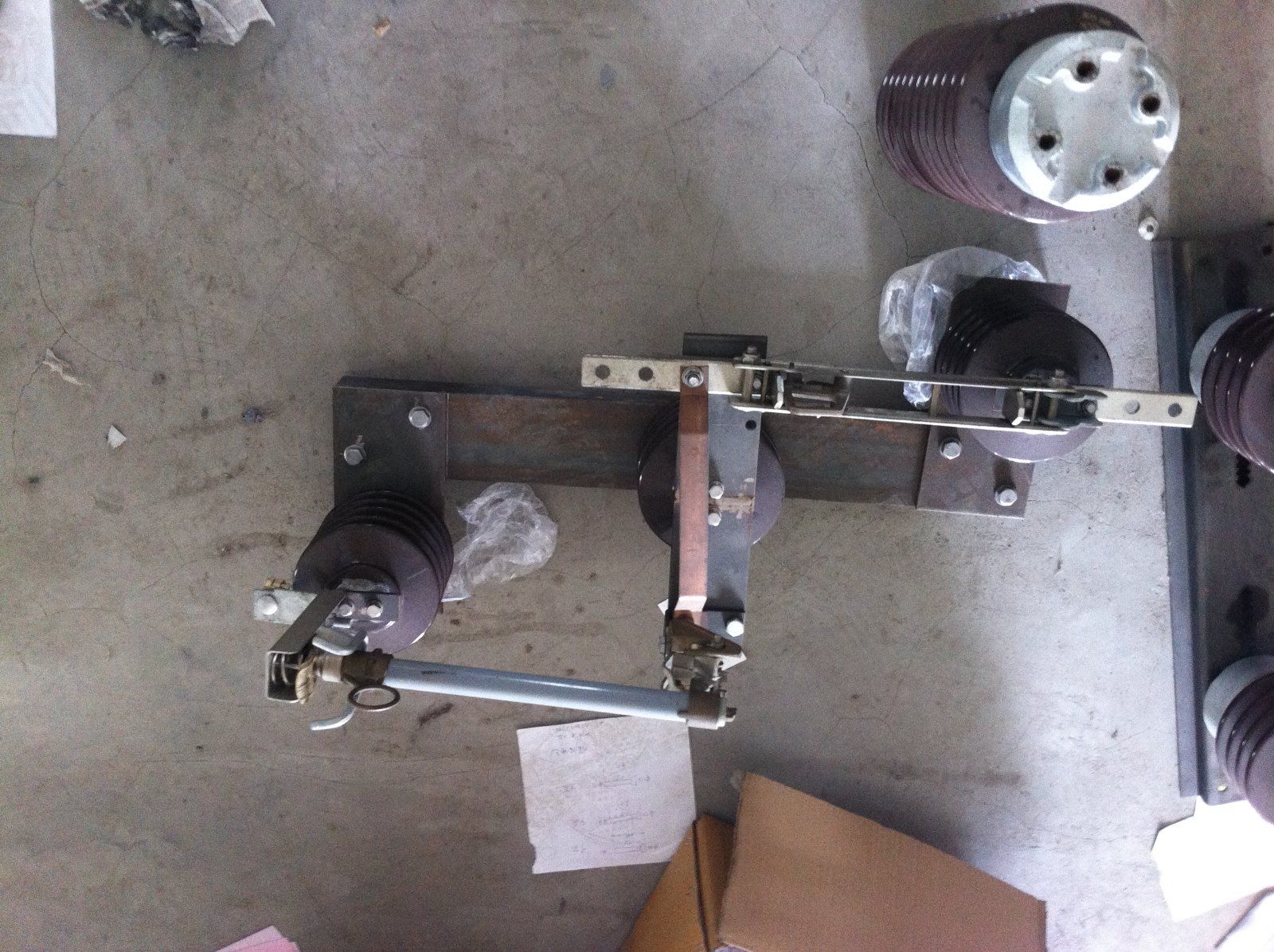

The bypass disconnect combination consists of:
1, A fuse cutout and a single pole disconnect switch mounted in
tandem on a common base
2, A separately mounted single pole companion disconnect switch
The fuse cutout provides the bypass component of the combination The disconnect switches provide for isolation of the Vaccum circuit recloser
Operation: With the oil circuit recloser in the closed position (in preparation for maintenance):
1. Place the fuseholder in hinge clip and close the cutout into the
bypass position
2. Open the oil circuit recloser
3. When both disconnect switches are opened, the vaccum circuit recloser is isolated and bypassed
Ningbo Hyuan Power Industry Co., Ltd was found in 2006, It is a professional company which is involved in Complete supply, Designing, Consulate and Service of Substation up to 245kv and of Distribution Automation up to 245kv
Our product is including of:
1.15KV/27KV/38KV, 50Hz/60Hz, 630A/1250A The Most advanced Recloser in the world for Pole mounted and Substation Mounted with Protocol IEC61850/DNP3.0 according to IEEE/ANSI/IEC standard;
2.15KV/27KV/33KV/66KV/123KV/145KV/150KV/170KV/245KV, 50Hz/60Hz, 1250A/2000A/3150A, Three phase Outdoor Isolator/Disconnector with Double Break at side /Central Single Break for Level/Vertical Mounted on Pad Substation or Power Tower;
3.15KV/27KV/33KV/66KV/123KV/145KV/150KV/170KV/245KV, 50Hz/60Hz, 1250A/2000A/3150A, Outdoor Three phase /Single phase SF6/Vacuum Circuit Breaker with Three Phase Common Operation /Single Phase Seperate Operation;
4.15KV/27KV/38KV/66KV/123KV/145KV/150KV/245KV, 50Hz/60Hz, MR2000/1(5)A, Outdoor Oil/Resin/Capacitor Current transformer, Voltage Transformer up to 5 cores;
5.15KV/27KV/38KV/66KV/123KV/145KV/150KV/245KV, 50Hz/60Hz, 100kvar to 100Mvar capacitor bank for pad mounted and Pole mounted;
6.15KV/27KV/38KV/66KV/123KV/145KV/150KV/245KV, 50Hz/60Hz Power Transformer up to 200mva and reactor up to 200Mvar;
7.400V/6KV/15KV/27KV/38KV, 50Hz. 60Hz, indoor AC control and Protection switchgear panel for substation and Distribution system;
8.48VDC/110VDC/220VDC 50Hz/60Hz Lead-Acid/Ni-CD Battery bank with Charger up to 2000AH;
9.15KV/27KV/38KV/66KV/123KV/145KV/150KV/245KV, 50Hz/60Hz Cable heat srink/cold shrink Terminal and Joint with joint box
10.33KV/66KV/145KV 50Hz/60Hz dead tank GCB /HGIS and compact GIS;
11.11KV/33KV, 50Hz/60Hz, 9/11/17/32 steps ON LOAD TAP CHANGER for Power Ttansformer
12. RTU remote terminal unit for VCB, SWITCHGEAR AND RECLOSER WITH IEC61850/DNP3.0 Protocol
Our Mian service is including of:
1. Designing, Complete Supply, Conssate and Commission of 33KV/66KV/145KV/245KV 60Hz/50Hz substation including of GCB, DS, CT PT, LA, Transformer, Cable, Control & Protection Panel, Earthing Grounding system,
SCADA system, Steel grid tower;
2. Desinging, Complete Supply, consulate and Commission of 33kv/66kv/145kv/230kv 60Hz/50Hz Distribution automatic system including of recloser, sectionaliser, fault indicator, RTU, GPRS, and management software
We are rich experience in substation and automatic distribution system for 10years, our business had been involve in the world I including of Bangladesh, Indonesia, malasia, Pakistan, zimbia, zembewei, Peru, Ecuador ect over the world.
Customerizer will be welcome, Speciall required wil be welcome, we have good experience to proposal you and support you to success in business.
All the goods from HEMG will be guaranteed within 2 years, in specially, it will be 5 years.
For Above 1 million Order, We will send our engineer to work in site untill runing in good conditions.
