| Prod Model: |
Reiz 850 |
| Amplifier Type: |
2 Channels Power Amplifier |
| Frequency Response: |
20Hz-20kHz |
| Power Handling: |
850watts |
| Sensitivity(1W/1m): |
1.55V |
| Channels Number: |
2 |
| Power Voltage: |
AC220V or AC110V |
| Power Plug: |
European, American, Asia or Customise |
| Protection: |
Full Protection |
| Installation Space: |
2u |
| Size: |
56cm X 61cm X14.5cm |
| Type: |
Professional Amplifier |
| Usage: |
KTV System |
| Used For: |
Professional |
| Tube Type: |
Transistor Amplifier |
| Function: |
Amplifier Combined |
| Voltage: |
AC 220V |
| Conductive Mode: |
D |
| Element Number: |
Transforma Amplifier |
| Output Number: |
2 |
| Sound Channel: |
2 |
Product Description

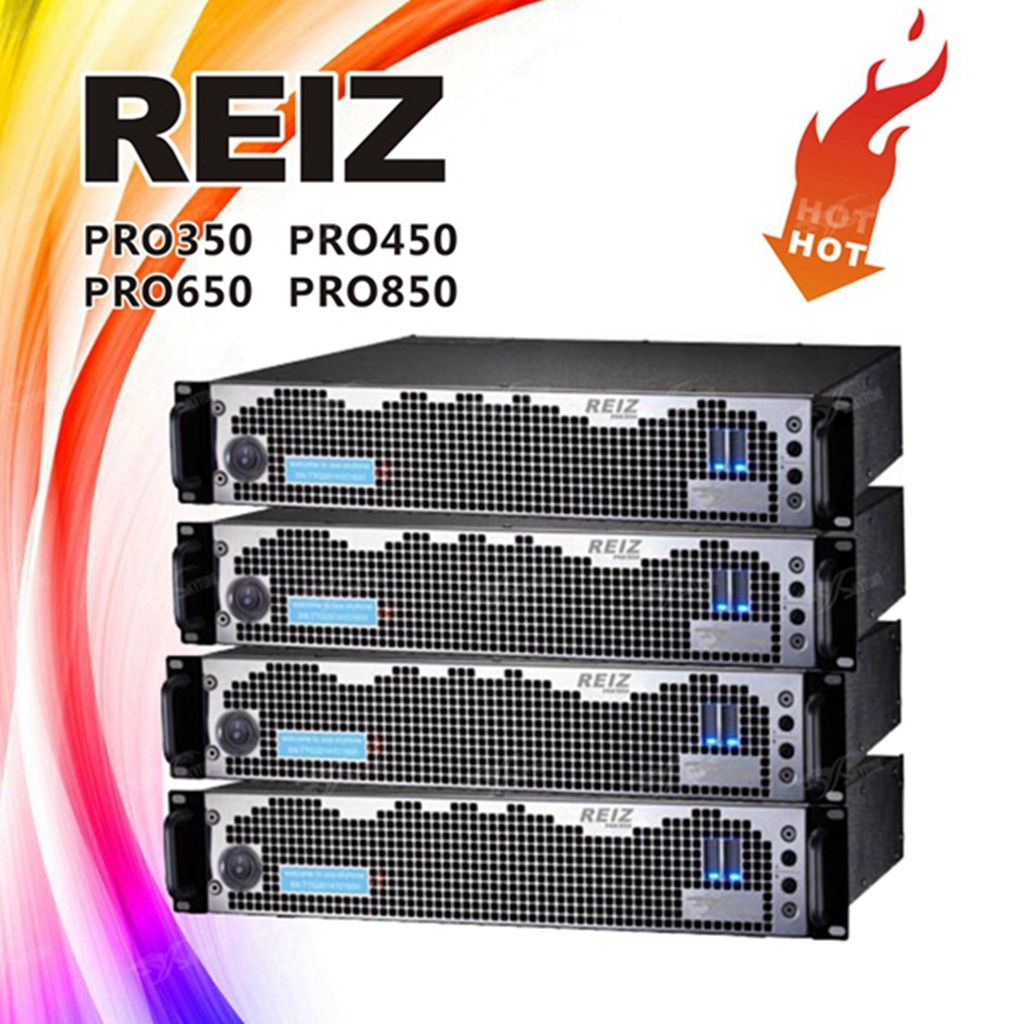

Reiz 850 DJ Power Amplifier 850Wx2 This series audio amplifier is Skytone audio new designed power amplifier, it has digital electric circuit, with a super oxygen-free copper transformer inside, which keeps the amplifier more stable.
2U install space with light weight.
This series power amplifier can perfectly drive subwoofer and work for several hours
Quality transistor and transformer make the amplifier better.
Reiz series power amplifier features:1. LCD display helps you check the amplifier temperature and working time.
2. Filtering power plug: connecting wireless microphone, mixer, processor ect, have filtering function.
3. Volume control: two channels can be controlled at same time.
4. Cables: Using Pure copper cable with Polytetrafluoroethene(PTFE) Insulationofacable, high temperature, resistance heavy current, Non- Oxidation for long time using.
5.Using Advanced Welding Procedure,preventing oxidation and poor connect, fuse for preventing DC overload
6.JICON large volume capacitor from listed state-owned enterprise, wide frequency
7.Powerful in low frequency, the delicate mid-high frequency highlights the appealing wide-range of frequency
8.Intelligent fans: dust-removing while powered on, the fans smoothly start working when temperature reaching 40 degrees , silent mode at normal times to prolong the service life.
Reiz 850 Power amplifier specifications:| Technical Specification | REIZ850 |
| PMPO(peak ) | 4 ohms Bridge | 3279 |
| 8 ohms Bridge | 2486 |
| 4 ohms Stereo | 2550 |
| 8 ohms Stereo | 1275 |
| Rated power (20Hz-20KHz) | 4 ohms Bridge | 2486 |
| 8 ohms Bridge | 1658 |
| 4 ohms Stereo | 1105 |
| 8 ohms Stereo | 850 |
| safe protection | Dc protection | √ |
| Short circuit protection | √ |
| Overheat Protection | √ |
| Input Overload Protection | √ |
| Output Overload Protection | √ |
| Frequency Response(1W 8ohms) | 20Hz-20KHz(±3dB) |
| Sensitivity (8ohms 1KHz) | 0.775v |
| Installation space | 2U |
| Cooling system | Intelligent system,automatic adjustment according to chang
-ing temperature |
| Size(WXHXD) | 56cm X 61cm X14.5cm |
| Net Weight | 17kg |
| After-sales service | 1 years Warranty (non-artificial Damage) |

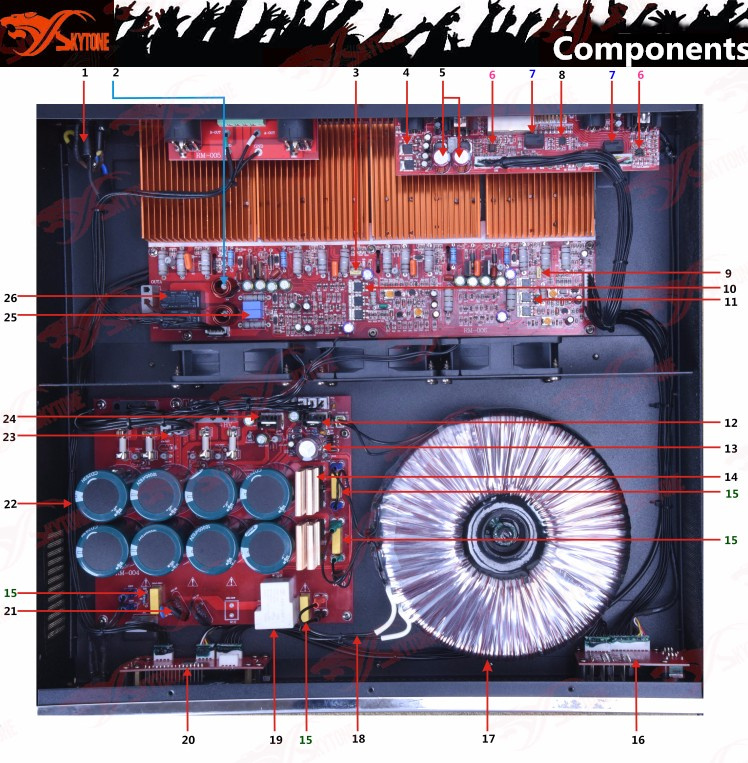

Product details:Details informations for the componments:
1.Two filtering power sockets, can plug in wireless microphone, processor, ect, with anti-EMI function
2.Pure copper , high-power output inductor , / Ensure output having a large dynamic range.
3.High-class French Thomson feedback capacitor which is important for the subtleness and width of mid-high frequency .
4.Original On Semi compound zener-transistor/ stabilized voltage power-supply of preceding stage.
5.ELNA DUOREX RJH hifi capacitor (purple body with gold letter, transparent sound, moderate speed,low distortion, high resolution) / stabilized voltage power-supply filtering of preceding stage.
6.Original America ADI OP275G hifi dual op-amp / preceding stage amplification.
7.LCR0202 linear optocoupler / amplitude limit.
8.America NS LM4562MA/ HI-FI top-level dual op-amp / preceding stage amplification.
9.High-class France Thomson feedback capacitor: delicate,soft and listenable voice without restlessness.
10.Original ON Semi MJD340G & MJD350G high-class special-used triode transistor / On Semi advantage: high-voltage resistance /Sound quality powerful, clear and delicate.
11.Intelligent fans: dust-removing while powered on, the fans smoothly start working when temperature reaching 40 degrees , / silent mode at normal times to prolong the service life.
12.Smart fans controlling MOS (metal oxide semiconductor).
13.Original Japan NCC (NIPPON CHEMI-CON) capacitor: long service life, high-voltage resistance,high capacity.
14.MOTOROLA bridge rectifiers & customized-mold radiator: Using multiple parallel rectifier bridge, low resistance, high loading capacity, large dynamic on LF.
15.Taiwan TENTA brand X2 safety capacitor: to prevent EMI (electromagnetic interference) caused by transformer.
16.Color LED level display.
17.High quality oxygen-free copper transformer.
High-power, super-dielectric strength, high voltage resistance, Long-time oxidation-resistance.
18.The whole amplifier uses pure copper cables coated with PTFE, heat-resistance, strong current-resistance, Long-time oxidation-resistance.
19.Xiamen HONGFA brand soft-starting relay.
20.LCD display driver and CPU control-module.
21.high-power soft-starting NTC: To Prevent the boot impact upon power grid.
22.JICON large volume capacitor from listed state-owned enterprise, wide frequency, 10000uf, 63V.
Powerful in low frequency, the delicate mid-high frequency highlights the appealing wide-range of frequency.
23.Fuse for preventing DC overload: Using Advanced Welding Procedure, preventing oxidation and poor connection.
24. Display Screen voltage-stabilizing IC / Wide range voltage-stabilizing IC.
25.Philips safety capacitor: To prevent the self-excitation caused by long distance audio cable
transmission.
26.Panasonic Output Relay: Boot with mute protection, DC protection.
Package1.One power amplifier fill in one carton case.
2.Rack case, based on your quantity requirements.
