Remote Fuel / Engine Cut off Sos Key GPS Xt-007g Waterproof GPS / GSM Tracker Tracking Two-Way Communication Device

Prod Model:	XT-007G
Power Supply:	DC 7-24V/3A
Backup Battery:	Rechargeable 750 mAh Battery (3.7V)
Dimension:	88*50*20mm
Weight:	87g
Type:	GPS Tracker
Use:	Automotive&Hand Held
Operating Principle:	Mixed Type
Port Number:	Multiplex Multi-purpose Channel
Model:	Integration Type
Carrier Frequency:	Dual-Frequency
Chip:	SiRF
Screen Size:	No Screen
Brand:	E-Track
Certification:	Ce

Product Description

Products Overview:

XT-007G is a waterproof multi-functional and hybrid GPS/GPRS tracker for vehicle,
Motorcycle and personal.

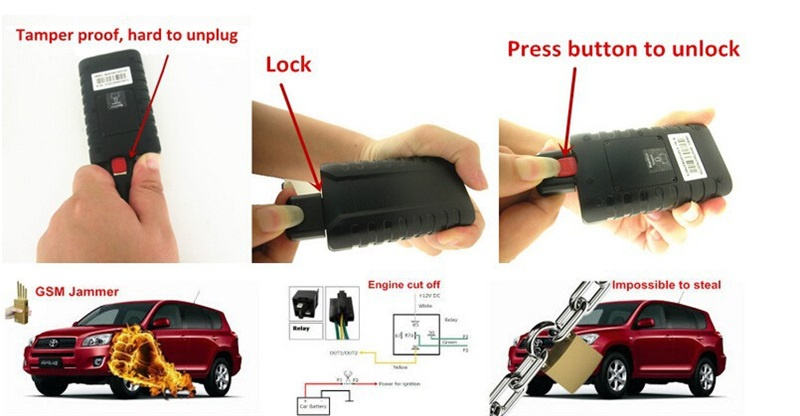

XT-007G is waterproof (close to IP67). It has SOS alarm, cut-off external power alarm, vibration alarm, over speed alarm,

Geo-fence alarm, remove machine alarm, Background surveillance, Two way
Communication (additional),

Data logger, etc. It has 2 digital outputs, 3 digital inputs and 2 analog inputs for different reports and applications. Data logger can instantly store the GPRS data which could not send out normally and resend the data when GPRS is reconnected.


The device has anti-interference function. When the ACC is off, once the device detects the
Interference, it will cut off the fuel and engine automatically.




Features and Functions:

Water resistance (close to IP67)

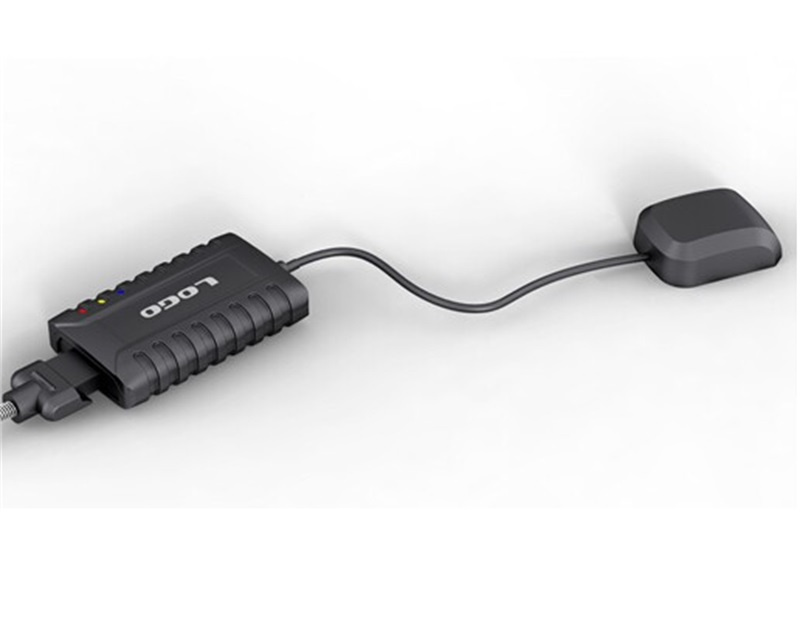

Built-in GPS & GSM antenna (external GPS antenna optional)

SMS/GPRS (TCP/UDP) communication

SMS/GPRS tracking (support TCP & UDP, HTTP is ready soon)

Real time tracking

Track by interval/demand

Background voice surveillance

Two way communication(optional)

Power saving mode

SOS alarm

ACC detection

Oil detection

Remote fuel/engine cut off

Geo-fencing alarm

Over speed alarm

Motion sensor

Low power warning

Built- in backup battery

External power cut off alarm

Remove off tracker alarm

"No GPS" signal warning

Data logger (built-in 8M flash memory)

Support FOTA (firmware on the Air)

3G-sensor

Hit alarm

AGPS

Anti-interference

For Your Safety:

Correct Connection
When connecting with other device, read carefully its manual so as to carry out correct installation. Do not connect it to other incompatible devices.

Chosen Accessories
Use our chosen accessories to avoid damage to XT-007.

Hidden Installation
In order to avoid damage by external force intentionally, please install XT-007 in a hidden place.

Protect from blasting
Follow related restrictions. Do not use XT-007 when blasting is in progress.

Repair and service
Only qualified engineer with technical support can repair XT-007.

Water resistance
XT-007 is water resistant (close to IP67).




Red LED- Power
Always on
Charging
1s on and 3s off
Normally work
Blue LED- GSM
0.3s on and 0.3s off
GSM module initializing
Always on
GSM module can't register network
1s on and 3s off
GSM module is registered network
0.1s on and 3s off
GSM module is registered network and GPRS function works well
Orange LED- GPS
0.3s on and 0.3s off
GPS module initializing
1s on and 3s off
GPS module works well, but GPS position is not fixed
0.1s on and 3s off
GPS module works well and GPS position is fixed
Buttons
SOS Button
Press it for 3 seconds to make a call and/or send a SMS to authorized numbers.
Other connectors
Switch
Turn on/off device
GPS+GLONASS Antenna interface
Built-in GPS+GLONASS antenna, external GPS+GLONASS antenna (optional)
SIM Card Holder (Inside)
Insert SIM card here
Mini USB Port
Used for charging, firmware update, configuration on PC
Input/Output Interface
Distinguish the inputs and outputs from color
Color
PIN
Function
Red
VCC
DC In (power input)
Input voltage: 7.5V ~ 24V/3A
Black
GND
Ground
Green
OUT1
Relay output 1
Yellow
OUT2
Relay output 2
Blue
AIN1
Analog input 1 (input voltage: 0 ~ 3V), normally use for Fuel Detection.
Grey
AIN2
Analog input 2 (input voltage: 0 ~ 3V)
Orange
SOS
To connect the SOS button
Brown
IN1
Digital input 1 (positive triggering)
White
IN2
Digital input 2 (positive triggering)
Purple
ACC
Digital input 3 (positive triggering), normally use for Ignition Detection.
Pink
SPK+
Speaker



Tracking Platform: 3 months for free!

Items	Specification
Power Supply	DC  7 - 24 V/ 3A
Backup  Battery	Rechargeable  750  mA h  battery (3.7V),
Normal Power Consumption	50mA
Working Time	normal vehicle & personal mode	7 hours (GPRS interval: 40 seconds)
Dimension	88*5 0 *20MM
Weight	87 g
Operating  T emperature	Built in battery  - 25 ° C  to  +60 °C  standard( -40 ° C  w/optional battery)
Humidity	5% to 95% Non-condensing
GSM  M odule	Quad Band GSM 850/900/1800/1900Mhz
GPS Chipset	GPS +GLONSSS  SKYTRAQ  Chipset
GPS Sensitivity	-1 65  dB
C/A Code	1.023 MHz chip rate
Channels	48  channel all-in-view tracking
Position Accuracy	<  10  M   CEP
Velocity Accuracy	0.1 M/S
Time Accuracy	1 us synchronized to GPS time
Reacquisition	0.1 ms
Hot  S tart	3  sec ., average
Cold (warm)  Start	39  sec ., average
Altitude Limit	18,000 meters (60,000 feet) max.
Velocity Limit	514 meters/second (1000 knots) max.
Acceleration Limit	Less than 4g
LED	3 LED lights to show power (red) , GPS (yellow) , GSM (blue) .
Button	SOS  button for making phone  SOS  calls   and sending  SOS  SMS
Interface	2 digital  output s ; 3 digital inputs ;  2  analog  inputs .
