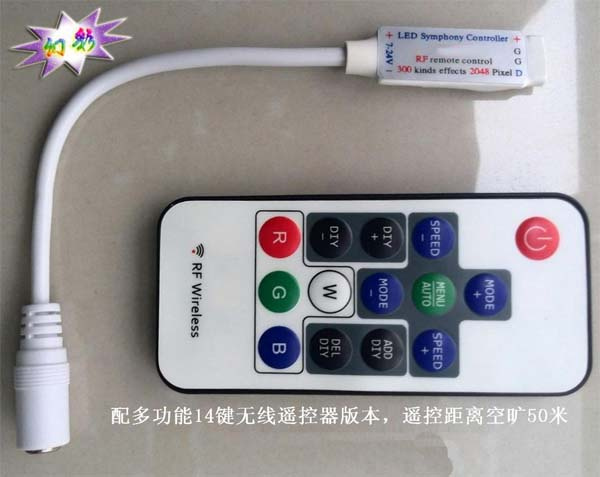

RF Controller with Chasing14key (GN-LED2013-Chasing-14KEY)

Prod Model:	GN-LED2013-Chasing-14KEY
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Usage:	Control The LED Lamp
Application:	LED Products
Signal Transmission:	RF Remote Control
Certification:	CE
Universal:	Not Universal
Transmission Distance:	50-100m
Voltage:	12V

Product Description

Product Description
RF controller adopts the advanced micro control unit, it is used for controlling a variety of lamp whose source of light is LED. For instance, point source of light, flexible light strip, wall washer lamp, glass curtain wall light and so on; At the same time, it has many advantages such as convenient connection, simplicity to use and others. According to the actual need of customers, it can carry out jumpy changing, gradual changing, stroboflash and other effects of change.

TechnicalParameters

Working voltage: DC5V, DC12V
Working current: < 10 mA
Working temperature: - 20 - - 60 ° C
Measure: L29 * W12 * H3 mm
Weight: 0.02 kg
Effect model: 300 species, covering all the iridescence controller effect on the market
Mode of operation: 14 key multifunctional RF wireless remote control (433.92 MHZ)
Maximum control points: 2048 points
Distance is the Controller from the point of the lamp article: < = 30 meters
Remote control distance: 50 meters in the empty space (14 key multifunctional RF remote control)
