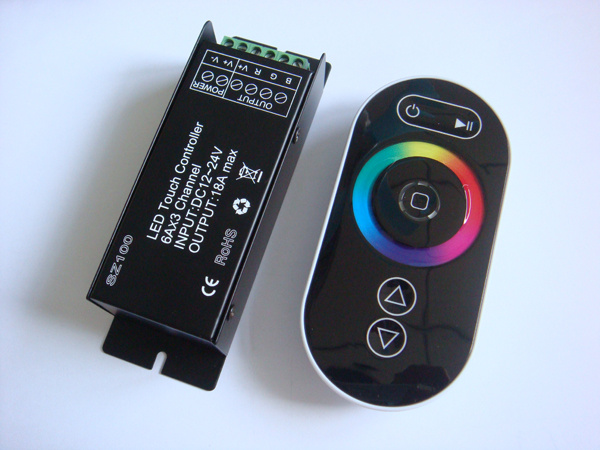

RF Touch Controller of CE (GN-CTL007)

Prod Model:	GN-CTL007
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Usage:	Control The LED Lamp
Application:	LED Products
Signal Transmission:	RF Remote Control
Certification:	CE
Universal:	Universal
Transmission Distance:	50-100m
Voltage:	12V
Material:	Metal
Battery Type:	AAA Battery

Product Description

Product Description
RF touch controller adopts the advanced micro control unit, it is used for controlling a variety of lamp whose source of light is LED. For instance, point source of light, flexible light strip, wall washer lamp, glass curtain wall light and so on; It has many advantages such as touch remote control, easy connection and simplicity to use. Meanwhile, you can adjust brightness, static color choices and various dynamic changes in lighting effects through wireless touch remote control. And according to the actual need of customers, it can carry out jumpy changing, gradual changing, stroboflash and other effects of change.

TechnicalParameters
Working temperature: -20-60° C
Supply voltage: 12V~24V
0utput: 3channels
Connecting mode: Common anode
External dimension: L127*W42*H33mm
Packing size: L135*W55*H40 mm
Net weight: 270g
Gross weight: 310g
Static power consumption: <1W
Output current: <6A(each channel)
Output power: 12V: <144W, 24V: <288W
Frequency of RF remote control: 433.9MHz
