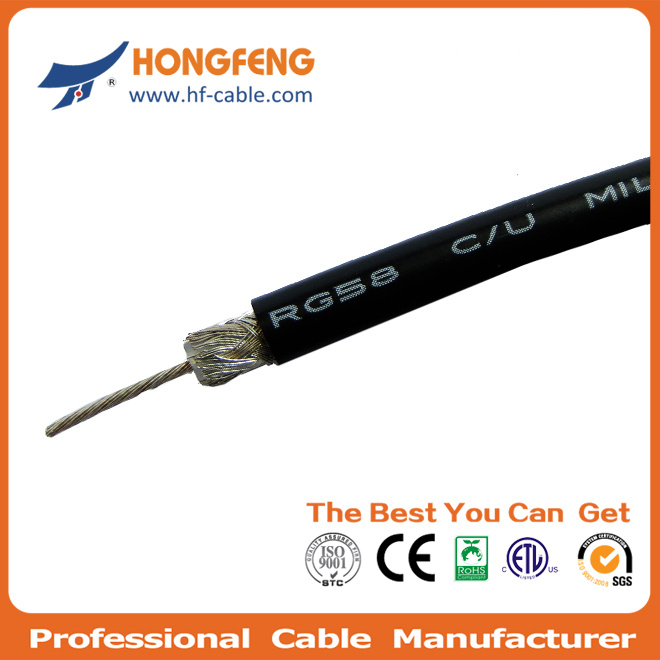

| Prod Model: |
RG58 |
| Number Of Conductor 1: |
19*0.18 mm Tc |
| Dielectric: |
2.95 mm Solid PE |
| Shielding: |
128*0.12 mm Tc |
| Shielding Coverage: |
95% |
| Jacket: |
4.95 mm PVC/FEP/TPE |
| Coaxial Cable Rg58: |
Rg58 Coaxial Cable |
| Application: |
Car Application |
| Cover Material: |
PVC |
| Certification: |
ETL |
| Type: |
Coaxial |
| Conductor Material: |
Tc |
Product Description
Our services:1, Good quality guarantee
2, CE. RoHS. ETL. ISO
3, Factory Price
4, OEM is ok
5, Short delivery time
Construction:19*0.18+0.004mm TC (Tinned copper) + 2.95+0.10mm SPE + 128*0.12*95% TC braiding + 4.95+0.12mm PVC
| Cable Type | RG58A/U | RG58U | RG58C/U |
| Impedance | 50 + 3 Ω | 50 + 3 Ω | 50 + 3 Ω |
| Nominal Capacitance | 100 pF/m | 94 pF/m | 100 pF/m |
| Velocity of Propagation | 66% | 66% | 66% |
| Insulation Resistance | >2000 MΩ.KM | >2000 MΩ.KM | >2000 MΩ.KM |
| Inner conductor resistance | 37.5 Ω/KM | 35.0 Ω/KM | 37.5 Ω/KM |
| Outer conductor resistance | 17 Ω/KM | 16.5 Ω/KM | 16.5 Ω/KM |
| Test/Operating voltage(Max.) | | 5KV/2KV | 5KV/2.5KV |
| Operating Temperature range | -30 C - +70 C | -30 C - +70 C | -30 C - +70 C |
| Screening effectiveness(100-900MHz) | >55 dB | >55 dB | >55 dB |
| | | | | |
| Return Loss | RG58A/U | RG58U | RG58C/U |
| 30 - 300 MHz | > 27 dB | > 26 dB | > 27 dB |
| 300 - 600 MHz | > 23 dB | > 25 dB | > 23 dB |
| 600 - 900 MHz | > 22 dB | > 24 dB | > 22 dB |
| | | | | |
| Frequency (MHz) | Attenuation (dB/100m) |
| | RG58A/U | RG58U | RG58C/U |
| 50 | 9.7 | 9.1 | 10.8 |
| 100 | 13.9 | 13.1 | 16.0 |
| 200 | 20.4 | 19.4 | 24.0 |
| 400 | 30.0 | 28.4 | 37.7 |
| 500 | 34.2 | 32.2 | 41.3 |
| 600 | 37.9 | 35.7 | 49.7 |
| 860 | 46.9 | 44.8 | 64.2 |
| 1000 | 51.8 | 49.0 | 70.0 |
Verified Information This information was Verified by Bureau Veritas and is valid for the following period: 2013/09/28 --- 2014/09/27
The information below covers both the Gold Supplier and its related companies, which are defined according to china laws and regulations, and which will also be clearly displayed in the full report >>
The competitive advantage of product line:
Coaxial Cable, it mainly exports to South America, Western Europe and Southern Asia. It is certified by CE and can be manufactured according to clients' requirements.
Production Capacity:
Product Line Name | Production Line Capacity | Actual Units Produced(Previous Year) |
|---|
| Coaxial Cable (for Communication) | 10,000 Kilometers/Month | 120,000 Kilometers |
Export Market Distribution:
Market | Revenue(Previous Year) | Total Revenue (%) |
|---|
| North America | confidential | 3.0 |
| South America | confidential | 28.0 |
| Eastern Europe | confidential | 8.0 |
| Southeast Asia | confidential | 7.0 |
| Africa | confidential | 1.0 |
| Western Europe | confidential | 11.0 |
| South Asia | confidential | 28.0 |
| Domestic Market | confidential | 14.0 |
Production Machinery:
Machine Name | Brand & Model No. | Quantity | Number of Year(s) Used | Condition |
|---|
| Extruding Machine 1 | SJ65*34 | 3 | 5.0 | Acceptable |
| Extruding Machine 2 | SJ65*28 | 3 | 5.0 | Acceptable |
| High Speed Braider | GSB-1A | 68 | 5.0 | Acceptable |
| Doubling Winder | No Information | 6 | 5.0 | Acceptable |
Testing Machinery:
Machine Name | Brand & Model No. | Quantity | Number of Year(s) Used | Condition |
|---|
| RF Network Analyzer | B714ET | 1 | 5.0 | Acceptable |
| LCR Bridge | JC2812A | 1 | 5.0 | Acceptable |
| Density Tester | MP3002 | 1 | 5.0 | Acceptable |
| Pull Force Tester | JPL-2500N | 1 | 5.0 |
Our Product Range:
1) 75 Ohm Coaxial Cable:
RG59, RG6, RG7, RG11, etc.
2) 50 Ohm Coaxial Cable:
RG58, RG142, RG174, RG178, RG213, RG214, RG316, etc.
3) MIL-C-17 Military Standard Cable:
RG59 A/U, RG59 B/U, RG6 A/U, RG11 A/U, RG58 A/U, RG58 B/U, RG58 C/U, RG213, RG214, etc.
4) Trunk Distribution Cable:
P3.412 JCA/JCAM, P3.500 JCA/JCAM, P3.565JCA/JCAM, QR320 JCA/JCAM, QR540 JCA/JCAM.
5) RF Coaxial Cable:
1/2', 1/4', 1/8', 7/8', 1-1/4',1-5/8', 1-7/8', LMR195, LMR200, LMR300, LMR400, LMR500, LMR600, 3D-FB,4C-FB,5D-FB, 7D-FB, 8D-FB, 10D-FB, etc.
6) Network Cables & LAN Cable:
CAT3, UTP/FTP CAT5, UTP/FTP/SFTP CAT5e, UTP/FTP CAT6, UTP/FTP CAT6a, UTP/FTP CAT7, etc.
7) Composite Cable:
RG59+2C Siamese Cable, RG6+2C Siamese Cable, 2RG59+2RG6, 2RG6+2CAT5e, etc.
8) British Standard Coaxial Cable:
BT3002, CT100, CT125, CT165, URM57, URM67, URM70, etc.
9) Japanese Standard Coaxial Cable:
1.5C-2V, 2.5C-2V, 3C-2V, 3C-2VR, 4C-2V, 5C-2V, 7C-2V, 10C-2V, 3D-2V, 5D-2V, 8D-2V, 10D-2V, etc.
10) French Standard Coaxial Cable:
11VATC/PATC, 17VATC/PATC, 19VATC/PATC, 21VATC/PATC, 25VATC/PATC, KX6/A, KX8, etc.
11) Alarm Cable, Control Cable:
Unscreened PVC Jacketed Alarm Cable, Screened PVC Jacketed Alarm Cable.
12) Optic Fiber Cable
GYXTW, GYXTC8S, GYTC8A, GYTA, GYFTY, GYTA53, GYXTC8S, GYXTS, Indoor Fiber Cable, etc.
