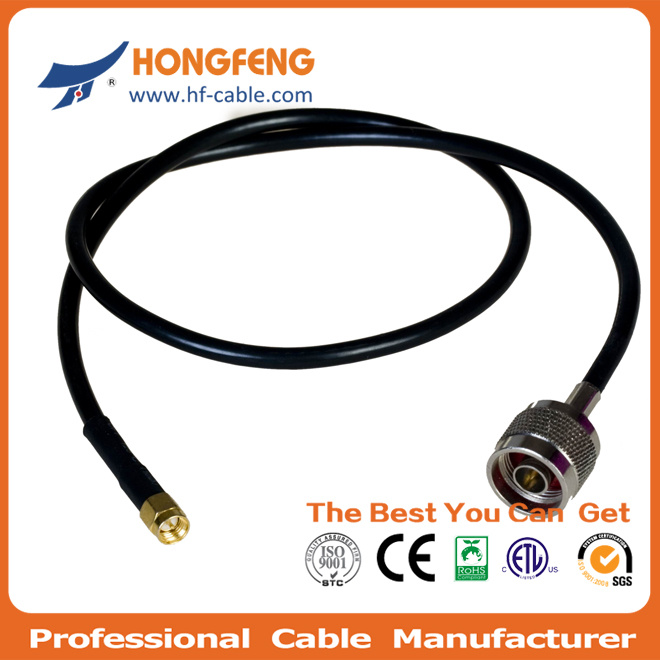

| Prod Model: |
RG58 cable |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Number Of Conductor 1: |
19*0.18 Mm Tc |
| Dielectric: |
2.95 Mm Solid PE |
| Shielding: |
128*0.12 Mm Tc |
| Shielding Coverage: |
95% |
| Jacket: |
4.95 Mm PVC/FEP/TPE |
| Coaxial Cable Rg58: |
Rg58 Coaxial Cable |
| Application: |
Car Application |
| Cover Material: |
PVC |
| Certification: |
ETL |
| Type: |
Coaxial |
| Conductor Material: |
Tc |
Product Description
Our services:
1, Good quality guarantee
2, CE. RoHS. ETL. ISO
3, Factory Price
4, OEM is ok
5, Short delivery time
Construction:
19*0.18+0.004mm TC (Tinned copper) + 2.95+0.10mm SPE + 128*0.12*95% TC braiding + 4.95+0.12mm PVC
Main products:
1) RG series Coaxial Cable: Rg59, RG6, rg7, rg8, rg11, RG58, rg142, rg174, rg178, rg213, rg214, RG316, etc;
2) JIS series Coaxial Cable: 1.5C-2V, 2.5C-2V, 3C-2V, 3C-2VR, 4C-2V, 5C-2V, 7C-2V, 10C-2V, 3D-2V, 5D-2V, 8D-2V, 10D-2V, etc;
3) Vatc series Coaxial Cable: 17vatc, 19vatc, 21vatc, 25vatc, kx6a, kx8;
4) TRUNK Cable: 412, 500, 540;
5) LMR SERIES: LMR200, LMR400, LMR600;
6) Network Cables: LAN Cable CAT3, LAN Cable CAT5, LAN Cable CAT5e, LAN Cable CAT6, LAN Cable CAT7;
7) Combined Cable: Siamese Cables: RG59+2C, RG6+LAN cable.
Note: If the specification is not you need, please tell me and I will offer you price according your requirements.
| Cable Type | RG58A/U | RG58U | RG58C/U |
| Impedance | 50 + 3 Ω | 50 + 3 Ω | 50 + 3 Ω |
| Nominal Capacitance | 100 pF/m | 94 pF/m | 100 pF/m |
| Velocity of Propagation | 66% | 66% | 66% |
| Insulation Resistance | >2000 MΩ.KM | >2000 MΩ.KM | >2000 MΩ.KM |
| Inner conductor resistance | 37.5 Ω/KM | 35.0 Ω/KM | 37.5 Ω/KM |
| Outer conductor resistance | 17 Ω/KM | 16.5 Ω/KM | 16.5 Ω/KM |
| Test/Operating voltage(Max.) | | 5KV/2KV | 5KV/2.5KV |
| Operating Temperature range | -30 C - +70 C | -30 C - +70 C | -30 C - +70 C |
| Screening effectiveness(100-900MHz) | >55 dB | >55 dB | >55 dB |
| | | | | |
| Return Loss | RG58A/U | RG58U | RG58C/U |
| 30 - 300 MHz | > 27 dB | > 26 dB | > 27 dB |
| 300 - 600 MHz | > 23 dB | > 25 dB | > 23 dB |
| 600 - 900 MHz | > 22 dB | > 24 dB | > 22 dB |
| | | | | |
| Frequency (MHz) | Attenuation (dB/100m) |
| | RG58A/U | RG58U | RG58C/U |
| 50 | 9.7 | 9.1 | 10.8 |
| 100 | 13.9 | 13.1 | 16.0 |
| 200 | 20.4 | 19.4 | 24.0 |
| 400 | 30.0 | 28.4 | 37.7 |
| 500 | 34.2 | 32.2 | 41.3 |
| 600 | 37.9 | 35.7 | 49.7 |
| 860 | 46.9 | 44.8 | 64.2 |
| 1000 | 51.8 | 49.0 | 70.0 |
Verified Information
This information was Verified by Bureau Veritas and is valid for the following period: 2013/09/28 --- 2014/09/27
The information below covers both the Gold Supplier and its related companies, which are defined according to china laws and regulations, and which will also be clearly displayed in the full report >>
The competitive advantage of product line:
Coaxial Cable, it mainly exports to South America, Western Europe and Southern Asia. It is certified by CE and can be manufactured according to clients' requirements.
Production Capacity:
Product Line NameProduction Line CapacityActual Units Produced(Previous Year)
|
| Coaxial Cable (for Communication) | 10,000 Kilometers/Month | 120,000 Kilometers |
Export Market Distribution:
MarketRevenue(Previous Year)Total Revenue (%)
|
| North America | confidential | 3.0 |
| South America | confidential | 28.0 |
| Eastern Europe | confidential | 8.0 |
| Southeast Asia | confidential | 7.0 |
| Africa | confidential | 1.0 |
| Western Europe | confidential | 11.0 |
| South Asia | confidential | 28.0 |
| Domestic Market | confidential | 14.0 |
Production Machinery:
Machine NameBrand & Model No.QuantityNumber of Year(s) UsedCondition
|
| Extruding Machine 1 | SJ65*34 | 3 | 5.0 | Acceptable |
| Extruding Machine 2 | SJ65*28 | 3 | 5.0 | Acceptable |
| High Speed Braider | GSB-1A | 68 | 5.0 | Acceptable |
| Doubling Winder | No Information | 6 | 5.0 | Acceptable |
Testing Machinery:
Machine NameBrand & Model No.QuantityNumber of Year(s) UsedCondition
|
| RF Network Analyzer | B714ET | 1 | 5.0 | Acceptable |
| LCR Bridge | JC2812A | 1 | 5.0 | Acceptable |
| Density Tester | MP3002 | 1 | 5.0 | Acceptable |
| Pull Force Tester | JPL-2500N | 1 | 5.0 |
