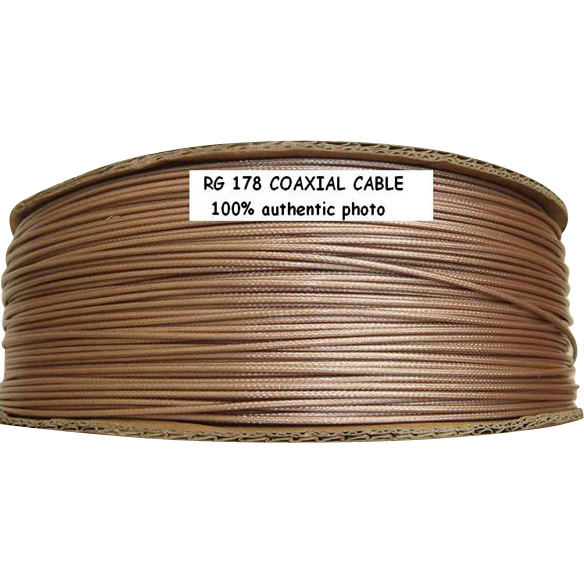

Rg178 Coaxial Cable (WMM008)

Name: Rg178 Coaxial Cable (WMM008)
Brand: all-electronics-online.com
SKU: 721272005
Availability: InStock
Rating: 4.4 (34 reviews)

Price:	US $ 0.001-1/Meter
Trade Terms:	FOB,CFR,CIF
Min Order:	20000/Meter
Pay Type:	L/C,T/T,D/P,Paypal,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	RG178 Coaxial Cable
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Model Name:	Rg178 Coaxial Cable
Number Of Conductors:	1
Al Foil:	Al Foil( Bonded or Unbonded)
Advantage:	Great Service
ODM/OEM:	Available
MOQ:	30km Rg178 Coaxial Cable
Free Sample:	Available
Sample Time:	One Day for Our Available Model
Certification:	UL
Application:	Coaxial Cable
Conductor Material:	BC/CCS/CCA/TC/CU/CCAG
Cover Material:	PE
Type:	Coaxial

Product Description

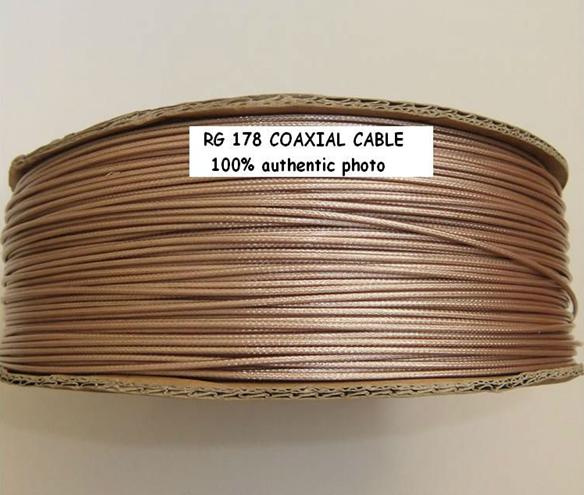

RG178 Coaxial Cable WMM008
1.free sample, short time delivery
2.good quality, competitive price
3.CE RoHs UL certification

Sample Charge:

1. Sample Charge: according to your quantity. Sampling time:1 day

2. Sample Charge: according to your design. Sampling time: 7 days

Why are we so proud of ourselves?

1. Always find good quality materials in lower prices to save cost for you.

2. Always use good materials to ensure good quality products for you.

3. 6 years production experience makes us easy to improve the delivery time for you.

4. 6 years export experience makes us to ensure good sale service for you.

Our Innovation

1.Quality & Service At WEIMAI, our priority has always been providing our clients

with great quality products and superior customer service.

2.Quick Leadtime We're dedicated to providing the quickest turnaround times and

work very Hard to ensure that all of your deadlines are met.

3.Unbeatable Prices We continuously strive to find ways of reducing our production

costs, and passing the savings over to you!

4.Brand Awareness The goal of any strong brand is achieve a level of awareness that

instills the idea of quality and value into all of your potential customers.

5.Special Offers In order to maintain our competitive edge, we are constantly running

special offers on our products.Contact our sales team to see how we can help you save

a lot of money.

Item	Material	Diameter(Inch/mm)
Inner Conductor	Silver Plated Copper Clad Steel	7/0.004+/-0.001	7/0.10+/-0.02
Dielectric	PTFE	0.033+/-0.002	0.84+/-0.05
Shield	95% Silver Plated Copper Braid	0.051+/-0.003	1.30+/-0.08
Jacket	FEP	0.071+/-0.004	1.80+/-0.10

Capacitance(pF/m)	96.5
Impedance(Ω)	50+/-2
Velocity of Propagation(%)	69.5
Conductor DCR(Ohm/km)	800.5
Outer Shield DCR(Ohm/km)	47.9
Max Operating Frequency (MHz)	3000.0
Max Operating Voltage (VRMS)	1000.0
Corona Extinction Voltage (VRMS)	1000.0
Voltage Withstand (VRMS)	2000.0
Spark Test (VRMS)	2000.0
Operating Temp Range(°c)	-55 to 200

Frequency(MHz)	Max Attenuation(dB/100ft)	Max Attenuation(dB/100m)
10	5.6	18.4
50	10.5	34.4
100	14.0	45.9
200	19.0	62.3
400	28.0	91.9
700	37.0	121.4
900	42.5	139.4
1000	46.0	150.9
3000	81.0

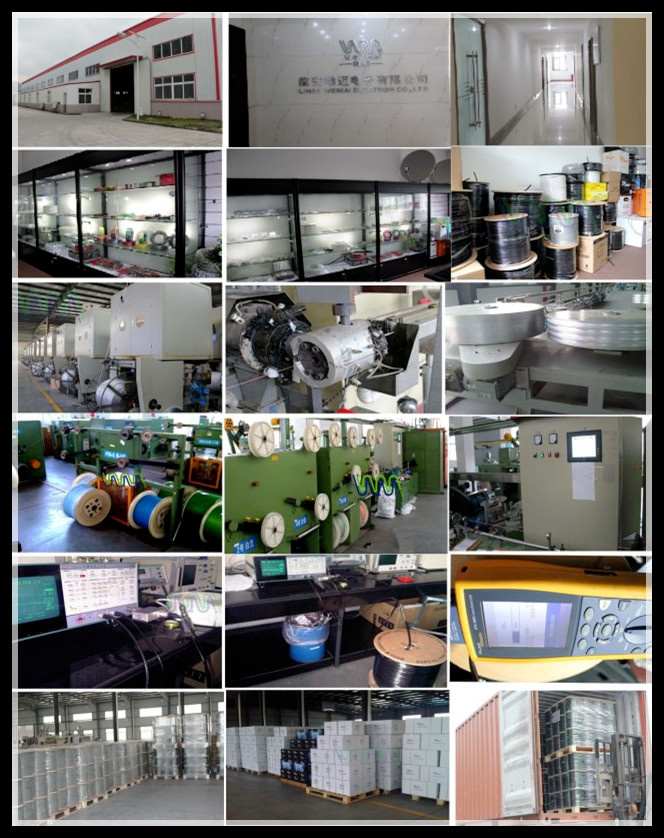

Linan Weimai Electron Co., Ltd is a manufacturer with more than 6 years

Experience in the communications cable industry in China. With an experien-

Ced and professional team, we have exported our products to many countries

And regions all over the world, especially European countries, North Americ-

An, Asia and the Middle East. We can professionally manufacture and supply

Coaxial cables, LAN cables, alarm cables, telephone cables Speaker Cable,

Audio RCA Cable, Scart cable, Flexible RVV Cable and the cable assembly

etc, and many are approved by CE, RoHS. Current production capacity is

About 180, 000, 000 meters per year. Our factory is located in Lin an city, enjoying great convenience toShanghai and Ningbo Sea Port. We have advanced testing machines, ToTest Attenuation, Return Loss Ect. We carefully test cables under ISO 9001-2000 quality management before shipping to the customers. We welcome

Customers, business associations and friends from all parts of the word to

Contact us and seek cooperation for mutual benefits
