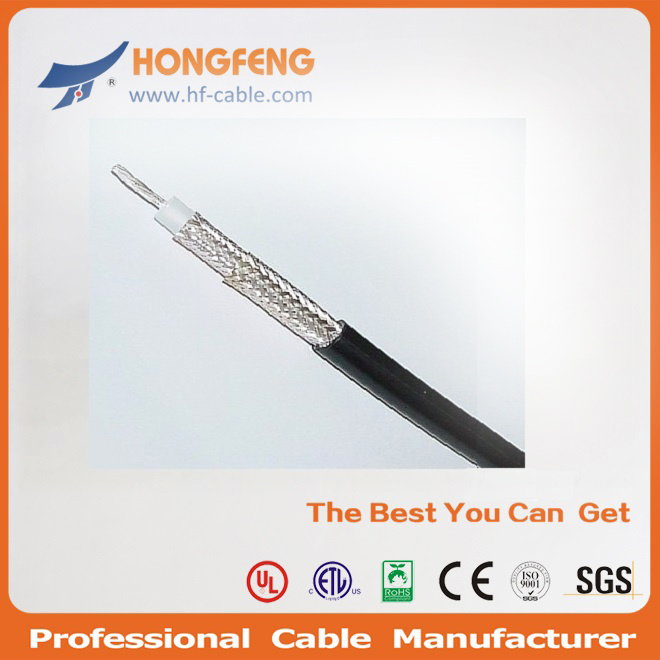

Rg393 Silver Copper Teflon Double Braiding Coaxial Cable

Name: Rg393 Silver Copper Teflon Double Braiding Coaxial Cable
Brand: all-electronics-online.com
SKU: 789659925
Availability: InStock
Rating: 5 (141 reviews)

Price:	US $ 7500-25000/Meter
Min Order:	10000/Meter
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	RG393
H.S. Code:	85442000
Application:	RF Cable
Cover Material:	PE
Certification:	UL
Wire Core Material:	Silver Plated Copper
Type:	Coaxial
Conductor Material:	Silver Plated Copper

Product Description

RG393/U

1.silver copper coaxial cable

2.good quality

3.good packing

4.quick lead time

Construction Specification
	Material	Diameter(mm)
1. Inner Conductor	Silver Plated Copper	7×0.792
2. Dielectric	PTFE	7.24
3. Outer Conductor	Double Silver Plated Copper Braid	8.50
4. Jacket	FEP	9.91

Electrical Characteristics
Impedance(Ohm)	50
Capacitance(pF/m)	96
Velocity(%)	70
Bending Radius(mm)	51
Max.Oper. Voltage(VMS)	5000
Max.Oper. Frequency (MHz)	11000
Operating Temp.	-55-+200

Attenuation(Typical)
Frequency(MHz)	Attenuation(dB/m)
100	0.066
400	0.141
1000	0.236
3000	0.463
5000	0.640
11000	1.089

Packaging & Shipping

1)Packing Lengths:

100m/roll, 200m/roll, 305m/roll, 100yard/roll, 200yard/roll, 300yard/roll

other lengths available according to client's request;

2) Inner packing: Wooden reel, plastic reel, and paper reel available.

3) Outer packing: Carton box, pull out box, pallet available.

4) Other packing available according to client's request.

Contact Information

Mr. Leo

Hangzhou Hongfeng Cable Co., Ltd.

www.hf-cable.com

www.hf-cable.com.cn

Tel: +86-571-58615552

Fax: +86-571-63816227

Mb: +86-18268847560

Our company, hongfeng industry, a professional cable manufacturer, is located in hangzhou, a city which is not only famous for its fabulous scenery, and also known for the center of the manufacture industry. And also we get close to the Shanghai port and ningbo port. This makes our company an unique position offering and delivering the cable overseas. We are dediacated to providing high quality coaxial cable and LAN twisted pair cable.

We offer whole range of coaxial cable and LAN twisted pair cable. Coaxial cable includes RG6 series, RG58series, RG59series, RG7series, RG11series, QR series, 500 series. And network cable CAT7 series, CAT 6 series, CAT 5 series.

We provide consistent high quality products at competitive prices. We have an products controlling teams, which monitors the manufacturing process and checks all the products before shipment. Our professional customer's service are ready to provide you with all necessary consultations and solve any problems related to our products.
