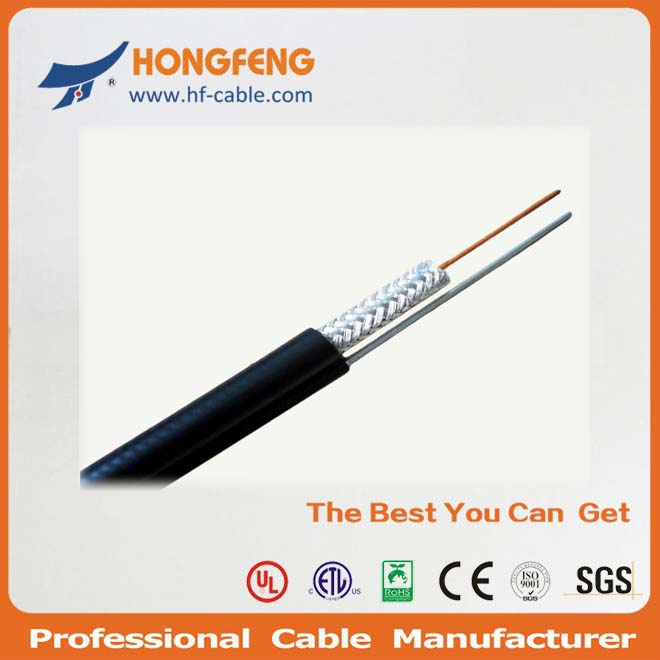

75 Ohm Telecommunication Standard Shield CATV RF RG6 Coaxial Cable

Name: 75 Ohm Telecommunication Standard Shield CATV RF RG6 Coaxial Cable
Brand: all-electronics-online.com
SKU: 722624925
Availability: InStock
Rating: 4.5 (48 reviews)

Price:	US $ 1km
Trade Terms:	FOB,CFR,CIF
Min Order:	30km
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	rg6, RG59, rg11
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Jacket:	PVC
Jacket Color:	Black/White/Color
Impedance:	75 Ohm
Braid Shied Material:	Bc, Tc, CCA, CCS, Al-Mg(60%-95%)
Inner Conductor:	CCS, CCA, Cu
Inner Conductor Diameter:	1.02mm
Certificate:	ISO9001, Cl2/CATV/Cm UL
Dielectric:	4.57mm
Insulation Material:	Bonded/Non Bonded
Jacket Diameter:	6.91mm
Application:	Coaxial Cable
Conductor Material:	BC/CCS/CCA/TC/CU/CCAG
Cover Material:	PVC
Certification:	RoHS
Type:	Coaxial Cable

Product Description

1. RG6 Specifications:
1) Inner Conductor: CCS, CCA, CU
2) Dielectric: Foam PE or Solid PE
3) Al Foil: Bonded, Non-bonded, Single, Double
4) Braiding Wire Material: Cu, Al-Mg, TC
5) Braiding Wire Diameter: 0.12mm, 0.15mm, 0.16mm
6) Braiding Net: 48, 64, 72, 80, 96, 128 and more
7) Coverage: 40%, 50%, 60%, 80%, 90% and more
8) PVC Degree: 60, 65, 68, 70, 75
9) Jacket: PE or PVC
10) OEM and Customer's designation are welcome

Such as: 1.02mm B. C Conductor; Foamed PE Dielectric; Bonded Al Foil& 64/0.12mm Al braid; 6.91 PVC jacket white

RG6 Coaxial Cable Introduce and Parameter: 75 Ohm
		SHIELD SHIELD	TRI-SHIELD	QUAD-SHIELD
CONDUCTOR	MATERIAL	BC/CCS	BC/CCX	BC/CCX
CONDUCTOR	Nom. Dia	18AWG	18AWG	18AWG
DIELECTRIC	MATERIAL	Foamed PE	Foamed PE	Foamed PE
DIELECTRIC	Nom. Dia	4.57mm	4.57mm	4.57mm
SHIELD	MATERIAL	AL Foil+AL Braiding	AL-Foil+Braiding of AL +AL-Foil	(AL-Foil+Braiding of AL)*2
	COVERAGE	40%-90%	40%-90%	40%/60%
	METERIAL	PVC/PE	PVC/PE	PVC/PE
JACKET	Nom. Thick.	0.80mm	0.80mm	0.86mm
JACKET	Nom. Dia	6.91mm	6.91mm	6.91mm

Our company, hongfeng industry, a professional cable manufacturer, is located in hangzhou, a city which is not only famous for its fabulous scenery, and also known for the center of the manufacture industry. And also we get close to the Shanghai port and ningbo port. This makes our company an unique position offering and delivering the cable overseas. We are dediacated to providing high quality coaxial cable and LAN twisted pair cable.

We offer whole range of coaxial cable and LAN twisted pair cable. Coaxial cable includes RG6 series, RG58series, RG59series, RG7series, RG11series, QR series, 500 series. And network cable CAT7 series, CAT 6 series, CAT 5 series.

We provide consistent high quality products at competitive prices. We have an products controlling teams, which monitors the manufacturing process and checks all the products before shipment. Our professional customer's service are ready to provide you with all necessary consultations and solve any problems related to our products.
