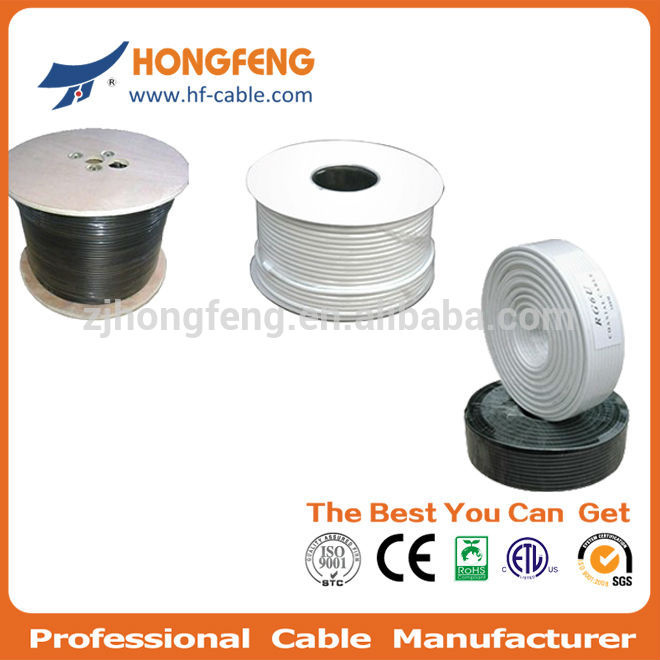

Rg142 PTFE FEP Coaxial Cable

Name: Rg142 PTFE FEP Coaxial Cable
Brand: all-electronics-online.com
SKU: 789660615
Availability: InStock
Rating: 4.7 (91 reviews)

Price:	Negotiable/Meter
Min Order:	5000/Meter
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	RG142
Number Of Conductor 1:	Tc/Spc 0.94 mm
Dielectric:	2.95 mm PE/PTFE Insulation
Shielding:	96*0.10mm Cu/Tc/ Spc Wire
Outer Conductor:	4.83 mm
Jacket:	4.953 mm FEP/TPE
Application:	RF Cable
Certification:	ETL
Cover Material:	FEP
Type:	Coaxial
Conductor Material:	Tc/Spc

Product Description

Our services:
1, Good quality guarantee
2, CE. ROHS. ETL. ISO
3, Factory Price
4, OEM is ok
5, Short delivery time

1. Construction:

Material Diameter(mm)
Inner conductor Silver-plated Copper clad steel wire 0.94
Insulation Layer PTFE-Polyflon 2.95
Outer Conductor silver-plated copper wire braiding 4.35
Jacket FEP-Neoflon 4.95

2. Electrical Characteristics:

Charecteristic impedance 95 ohm
Rated capacitance 102pf/m
Velocity of propagation 69.5%
Operating temperature -55° C~+200° C
Operating frequency 1~124000MHz
Minimum bending radius 50mm
Voltage Standing Wave Ratio(VSWR)1~3000MHZ≤ 1.151~6000MHZ ≤ 1.20

3. Nominal Attenuation:

Attenuation(Typical)
Frequency(MHz)	Attenuation(dB/m)
100	0.453
400	0.912
1000	1.457
3000	2.572

Main products:

1) 75 Ohm Coaxial Cable:
RG59, RG6, RG7, RG11, etc.

2) 50 Ohm Coaxial Cable:
RG58, RG142, RG174, RG178, RG213, RG214, RG316, etc.

3) MIL-C-17 Military Standard Cable:
RG59 A/U, RG59 B/U, RG6 A/U, RG11 A/U, RG58 A/U, RG58 B/U, RG58 C/U, RG213, RG214, etc.

4) Trunk Distribution Cable:
P3.412 JCA/JCAM, P3.500 JCA/JCAM, P3.565JCA/JCAM, QR320 JCA/JCAM, QR540 JCA/JCAM.

5) RF Coaxial Cable:
1/2', 1/4', 1/8', 7/8', 1-1/4',1-5/8', 1-7/8', LMR195, LMR200, LMR300, LMR400, LMR500, LMR600, 3D-FB,4C-FB,5D-FB, 7D-FB, 8D-FB, 10D-FB, etc.

6) Network Cables & LAN Cable:
CAT3, UTP/FTP CAT5, UTP/FTP/SFTP CAT5e, UTP/FTP CAT6, UTP/FTP CAT6a, UTP/FTP CAT7, etc.

7) Composite Cable:
RG59+2C Siamese Cable, RG6+2C Siamese Cable, 2RG59+2RG6, 2RG6+2CAT5e, etc.

8) British Standard Coaxial Cable:
BT3002, CT100, CT125, CT165, URM57, URM67, URM70, etc.

9) Japanese Standard Coaxial Cable:
1.5C-2V, 2.5C-2V, 3C-2V, 3C-2VR, 4C-2V, 5C-2V, 7C-2V, 10C-2V, 3D-2V, 5D-2V, 8D-2V, 10D-2V, etc.

10) French Standard Coaxial Cable:
11VATC/PATC, 17VATC/PATC, 19VATC/PATC, 21VATC/PATC, 25VATC/PATC, KX6/A, KX8, etc.

11) Alarm Cable, Control Cable:
Unscreened PVC Jacketed Alarm Cable, Screened PVC Jacketed Alarm Cable.

12) Optic Fiber Cable
GYXTW, GYXTC8S, GYTC8A, GYTA, GYFTY, GYTA53, GYXTC8S, GYXTS, Indoor Fiber Cable, etc.

Note: If the specification is not you need, please tell me and i will offer you price according your requirements.

Contact:

Mr. Leo

Hangzhou Hongfeng Cable Co., Ltd.

www.hf-cable.com

www.hf-cable.com.cn

Tel: +86-571-58615552

Fax: +86-571-63816227

Mb: +86-18268847560

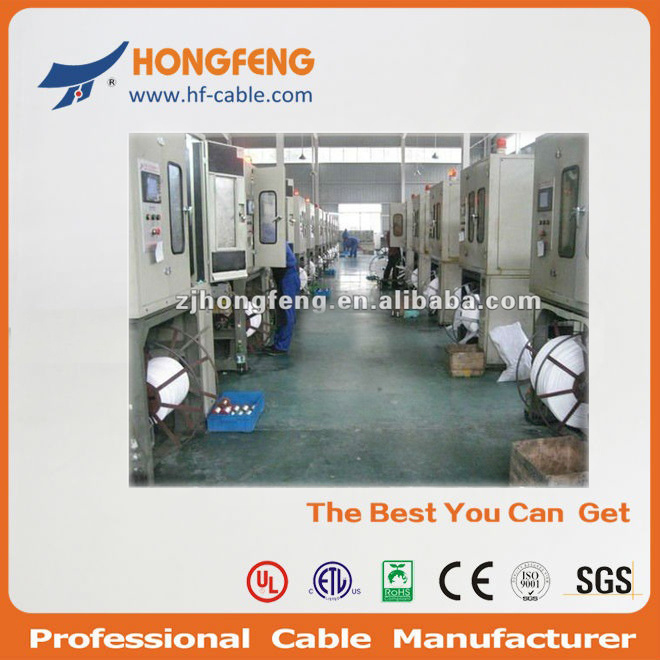

Our company, hongfeng industry, a professional cable manufacturer, is located in hangzhou, a city which is not only famous for its fabulous scenery, and also known for the center of the manufacture industry. And also we get close to the Shanghai port and ningbo port. This makes our company an unique position offering and delivering the cable overseas. We are dediacated to providing high quality coaxial cable and LAN twisted pair cable.

We offer whole range of coaxial cable and LAN twisted pair cable. Coaxial cable includes RG6 series, RG58series, RG59series, RG7series, RG11series, QR series, 500 series. And network cable CAT7 series, CAT 6 series, CAT 5 series.

We provide consistent high quality products at competitive prices. We have an products controlling teams, which monitors the manufacturing process and checks all the products before shipment. Our professional customer's service are ready to provide you with all necessary consultations and solve any problems related to our products.
