Hangzhou Softel Optic Co., Ltd. >> Rg58/Rg59 Bc/CCS Quad-Shield House Drop Coaxial Cable From High Technology Manufacture in China

Rg58/Rg59 Bc/CCS Quad-Shield House Drop Coaxial Cable From High Technology Manufacture in China

Rg58/Rg59 Bc/CCS Quad-Shield House Drop Coaxial Cable From High Technology Manufacture in China
Price: US $ 0.026/Meter
Trade Terms: FOB,CFR,CIF
Min Order: 1000/Meter
Pay Type: L/C,T/T,D/P,Paypal,Money Gram
Prod Model: RG58
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
MOQ: 20km
Module Number: Rg59/6
Dielectric: 4.57+ 0.05mm Foam PE
Center Conductor: 1.02mm + 0.01mm
Shield: Bonded Al Foil
Outer Conductor Thickness: 0.343mm
Braid Coverage: 60%
Jacket: 6.91+0.05mm PVC
Messenger: 1.30mm
Jelly/Apd: Per Customer' Special Requirement
Application: Coaxial Cable
Conductor Material: BC/CCS/CCA/TC/CU/CCAG
Cover Material: PVC
Certification: CCC
Type: Coaxial Cable
Model: RG6 Rg11
Brand: Softel

Product Description

RG58/RG59 BC/CCS Quad-Shield House Drop Coaxial Cable from High Technology Manufacture in China

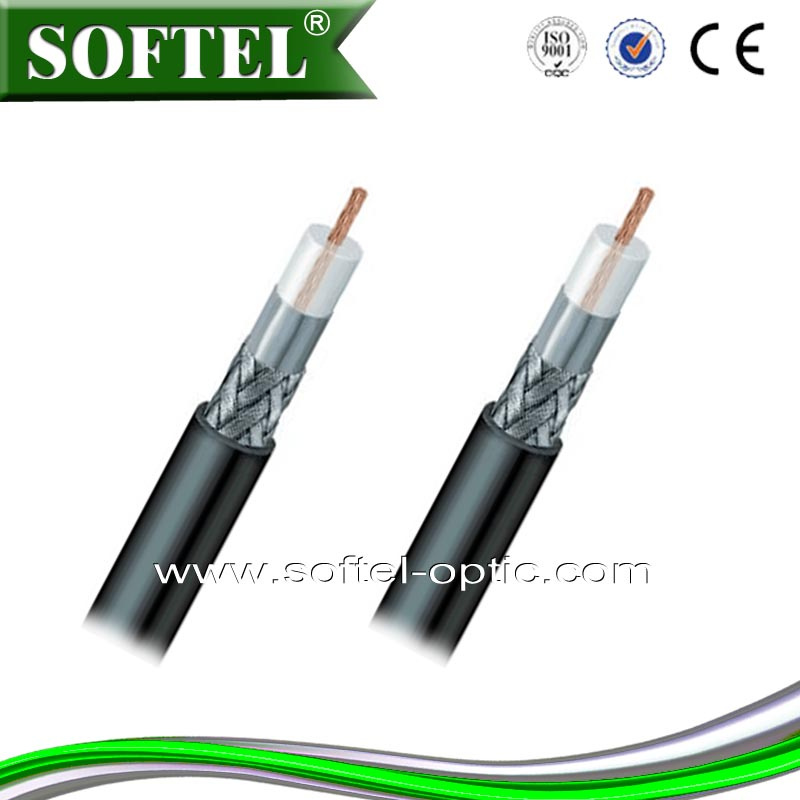

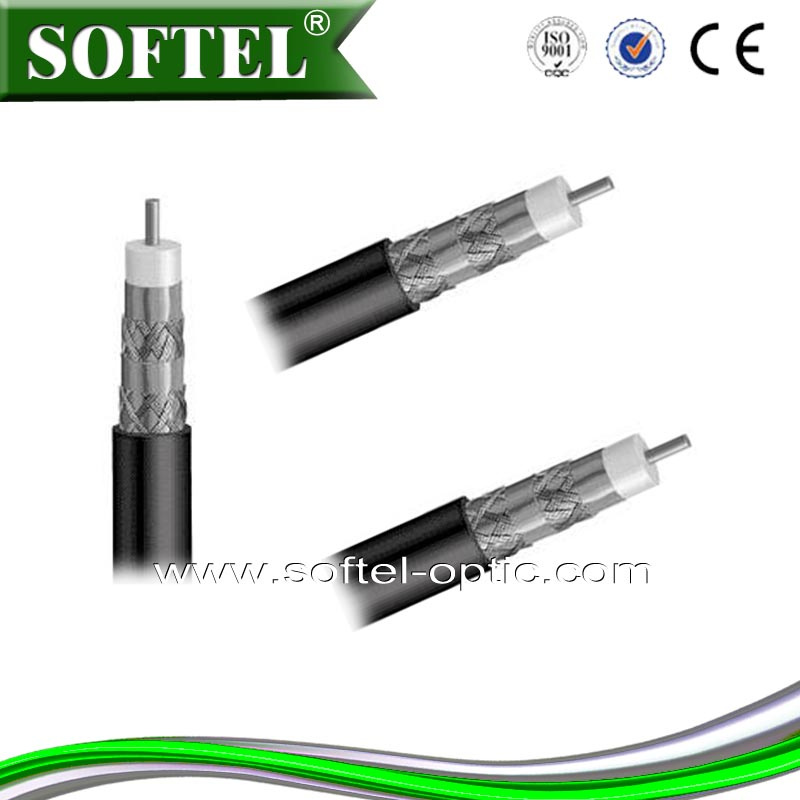

-Product Display



-Construction
-Characteristics
Sparker test: 4000VAC

Impedance: 75+2 Ohm

Capacitance: 54+3pF/m

Velocity of Propagation:85%

Return Loss: 20dB min (5-2300MHz)

-Nominal D.C. resistance @20

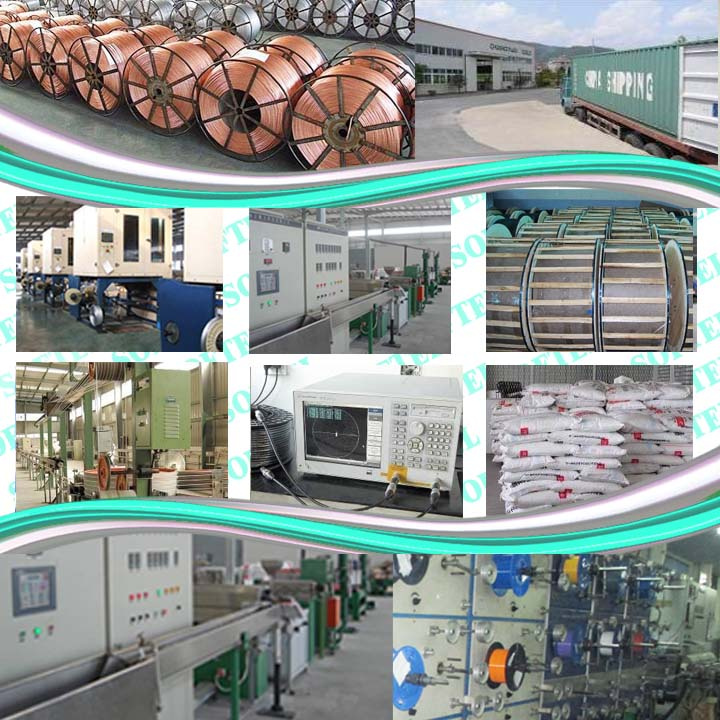

-Workshop


-Our Team

Hangzhou Softel Optic Co., Ltd. (Brand: SOFTEL) was established in 2006, which Located in the HangZhou Hi-Tech Development Zone. Taking advantage of the modern broadcast and optic fiber communication technology, we are specializing in R&D of CATV system equipment, and leading manufacturer of HFC broadband Optic Transmission equipment with strong R&D capability in this field.

We have more than 100 staff in which 10% of senior technicians. It has more than 1, 000 square meters standards production assembling line, we have strict QC procedure, each unit of our products will go through 3 layer QC procedure, material checking before production, stability and performance testing after production, packing checking before delivery.

Currently, we supplying to numerous agents, integrated dealers and equipment producers all over the world, most of our products move to South America, Russia and north European countries.

Through keen international business competition in good faith, all of our staffs feel big accomplishment & work under heavy responsibility. In addition, we are much proud of providing our invaluable customers with our high quality, high reliability, high efficiency, competitive products.
