Rg59 Siamese Cable Rg59+2c

Name: Rg59 Siamese Cable Rg59+2c
Brand: all-electronics-online.com
SKU: 704479875
Availability: InStock
Rating: 4.6 (38 reviews)

Price:	Negotiable/Meter
Trade Terms:	FOB
Min Order:	5000/Meter
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	siamese cable
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Impedance:	75ohm
Power Cable:	Red and Black Color
Application:	Coaxial Cable
Conductor Material:	BC/CCS/CCA/TC/CU/CCAG
Cover Material:	PVC
Certification:	UL
Type:	Coaxial
Model:	Rg59+2c
Brand:	Hf

Product Description

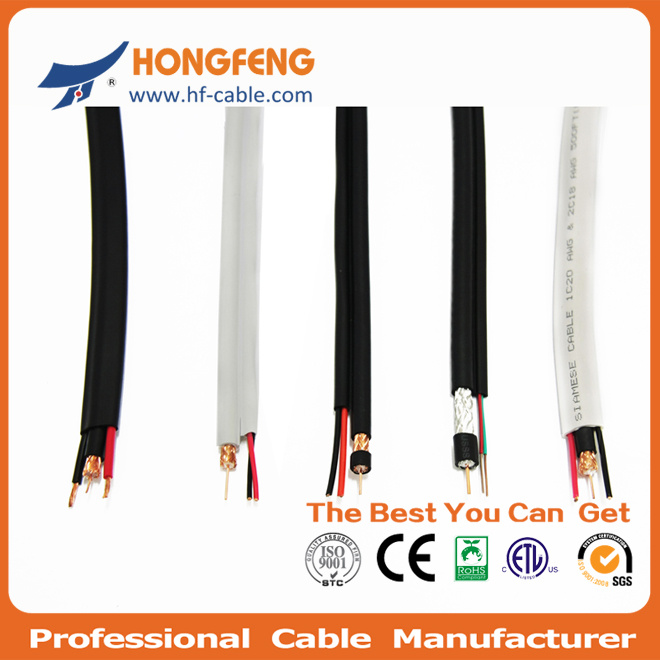

RG59 SIAMESE coaxial cable with 2 power wire

Product Description:
RG59+2C(RG59 Coaxial Cable + Power Cable)
0.83mmCCS+3.66mmFPE+Bondal AL FOIL+50%-95%CCA Braiding+6.1mmPVC+2*18AWG CCA Power cable(7*0.37mmCCA)
(7*0.37mmCCA)

RG59 Siamese coaxial cable is a heavily shielded cable which contains a COAX video and pair of 18 guage 2 conductor power in one jacket.

RG59 siamese coaxial cable

Advantage:

1) durable and can be run in long distances without interference. You can also cut each security camera run the exact length that you need.

2)You will need to attach BNC connectors to each end of the RG59 coax part of the cable for the CCTV video transmission.

3) BNC connectors are available in twist on, crimp on, and compression types.

4) 500 foot spools of RG59 are also available.

5)allows installers to run both the video and power to security cameras using a single cable run

Center Conductor:

0.81 + 0.005mm Solid Copper

Dielectric:

3.66 + 0.05mmFoam PE

Braid Coverage:

95% Copper

Jacket:

6.1 + 0.10mm PVC

Jacket Thickness:

0.0381mm

2-18

Center Conductor:
2-18 AWG Stranded Copper (7X0.38mm)
Dielectric: Solid PE 1.85mm
Jacket: (2-18): 3.81mm

2) Characteristics

Spark Test: 2000 VAC

Dielectric Strength: Conductor to Shield: 2000VDC

Impedance:	75 + 3 Ohm
Capacitance:	16.0pF. /Ft. Nom.
Velocity of Propagation:	84%
DCR: Conductor:	10.5 Ohms/1000Ft. (Nom. ) Coax
	6.6 Ohms/1000Ft(Nom. ) 18 AWG
Return Loss:	20dB min (5-860MHz)
	15dB min(860-2500Mhz)
SRL:	20dB (10-350MHz) 100% Swept Tested
