RG6 Cable with Messenger Cable

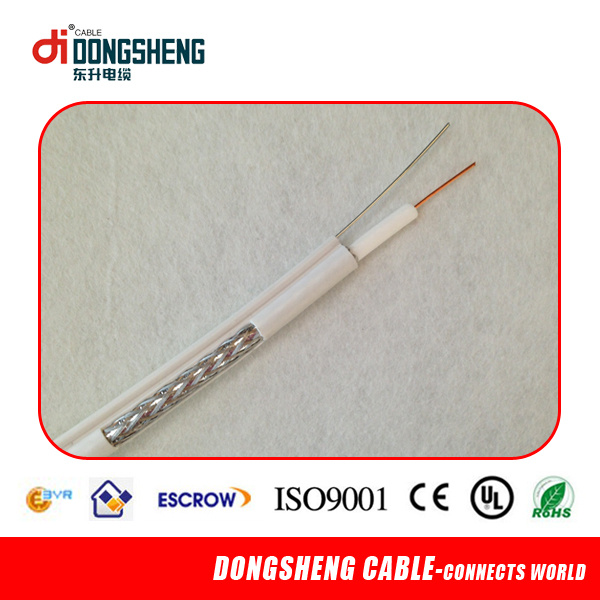

Name: RG6 Cable with Messenger Cable
Brand: all-electronics-online.com
SKU: 763137785
Availability: InStock
Rating: 4.9 (27 reviews)

Price:	US $ 0.01/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	100/Box
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	DSC-RG6 Cable With Messenger Cable
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Belden Cable Coaxial RG6 Quad Shield:	18AWG CCS/Cu
Commscope RG6 Coaxial Cable:	18AWG CCS/Cu
Coaxial Cable:	RG6 Messenger Cable
Application:	Submarine Cable
Conductor Material:	BC/CCS/CCA/TC/CU/CCAG
Cover Material:	PVC
Certification:	UL
Type:	Belden Cable Coaxial RG6 Quad Shield
Model:	Belden Cable Coaxial RG6 Quad Shield
Brand:	DSC

Product Description

RG6 Cable with Messenger Cable

RG6 Cable

RG6 Coaxial Cable,RG6, RG6 Triple Cabo Coaxial,RG6 Quad Kabel, RG6 Steel Messenger Cable

Product Spec

RG6 Coaxial Cable		TYPE:	RG6
Construction
Item	Material			Diameter(mm)
Center Conductor	Copper Clad Steel/BC			1.02
Dielectric	Foam PE			4.57
1st Shield	Bonded Aluminum Foil Copper Foil			4.75
2nd Shield	Aluminum Wire Braid CCA Wire Braid BC Wire Braid TC Wire Braid			3×16×0.12 40% 4×16×0.16 60% 6×16×0.12 75% 7×16×0.16 95% 10×16×0.12 95%
3rd Shield	Aluminum Foil or			AL Foil
Jacket	PVC			7.06 ROHS,UV,UL,LSZH
Messenger	Galvanized Steel			1.30
Electrical Charateristics
Impedance(Ω)				75±3
Capacitance(pF/m)				52±2
Velocity of Propagation(%)				85.0
Shielding Effectiveness
5-1000MHZ(dB)				≥90%
Return Loss
5-1000MHZ(dB)				≥22
1000-2000MHZ(dB)				≥20

Attenuation @68°F.(20 ºC )
@Frequency(Mhz)	Max Attenuation(dB/100ft)			Max Attenuation(dB/100m)
5	0.58			1.90
55	1.60			5.25
187	2.85			9.35
211	3.05			10.00
400	4.15			13.61
500	4.66			15.29
750	5.65			18.54
865	6.10			20.01
1000	6.55			21.49
1500	8.20			26.80
1800	8.80			28.90
2200	9.80			32.20
3000	11.50			37.60

Packing: 305m/wooden drum or 500m/wooden drum,
Customer's requirement also be welcomed

Other Cables:

1) Lan Cable / Network Cable UTP/ FTP /SFTP Cable Cat5e Cat6 Cat3

2) Telephone Cable,Telephone Drop Cable, PTT298 Cable , PTT299 Cable

3) Security Alarm Cable / Fire Alarm Cable

4) Optical Fiber Cable

5) Speaker Cable / Power Cable / Electrical Cable / Multi-Core Cable

6) Siamese CCTV Cable RG59+2C , KX6+2C , RG6+2C

7) Trunk Cable QR750 QR540 QR500 QR412

8) KoaxialKable CT100,CT165, KX6, KX8,17VATC,19VATC,SAT703,SAT602

9) 75 ohm Coaxial Cable RG6 RG59 RG7 RG11

10) 50 ohm Coaxial Cable RG174 RG58 RG8 RG213 RG214 RG223

11) 50ohm Cable LMR195 LMR200 LMR240 LMR300 LMR400 LMR500 LMR600

12) 75 ohm Coaxial Cable 3C-2V, 5C-2V, 4C-FB, 5C-FB

13) 50 ohm Coax Cable 3D-FB,4D-FB,5D-FB,7D-FB,8D-FB,10D-FB

14) Mini Coax Cable: RG591885A,8218 Cable,1.37mm,0.81mm ect

15) Cabo Coaxial RG6 RG59 RG11 QR500 RF4mm

16) Telecom Cable BT3002, PCM Cable, Multi-Core Coax Cable

17) Coaxial Cable Connector(BNC,RCA,Female, Male)

18) Indoor TV Antenna, Outdoor TV Antenna,Satellite Antenna

19) CATV Transimitter, CATV Amplifier,CATV Receiver

Contact information:

Mr Andy
Cell Phone: 0086-15867183819

DSC Located at the city of Lin'an, Hangzhou, Hangzhou Lin'an Dongsheng Cable Co., Ltd. is 28km away from Hangzhou City, covering an area of 30000 square meters, with beautiful landscape and convenient communication facilities.

Since 1991, 24 year cable experience, our rapid development helps us to be the industry leader. Our company has passed ISO9001 quality system certification & UL certification, and had foreign trade license. Our company is on the top with comprehensive strength.

Main products in our company cover LAN Network Cables Cat5e CAT6 Cat3, Coaxial CCTV/CATV Cable RG6 RG59 RG11 RG59-2C QR500 RG58 RG213 LMR400 KX6 19VATC CT100 SAT703 ect. Telephone Cable, Alarm Cable and Cable Accessories

Our motto is "Keeping pace with the time, and going up like the sun", just as our company's name, Dongsheng, suggests. We are looking forward to establishing long term & mutually beneficial business relationship with you.
