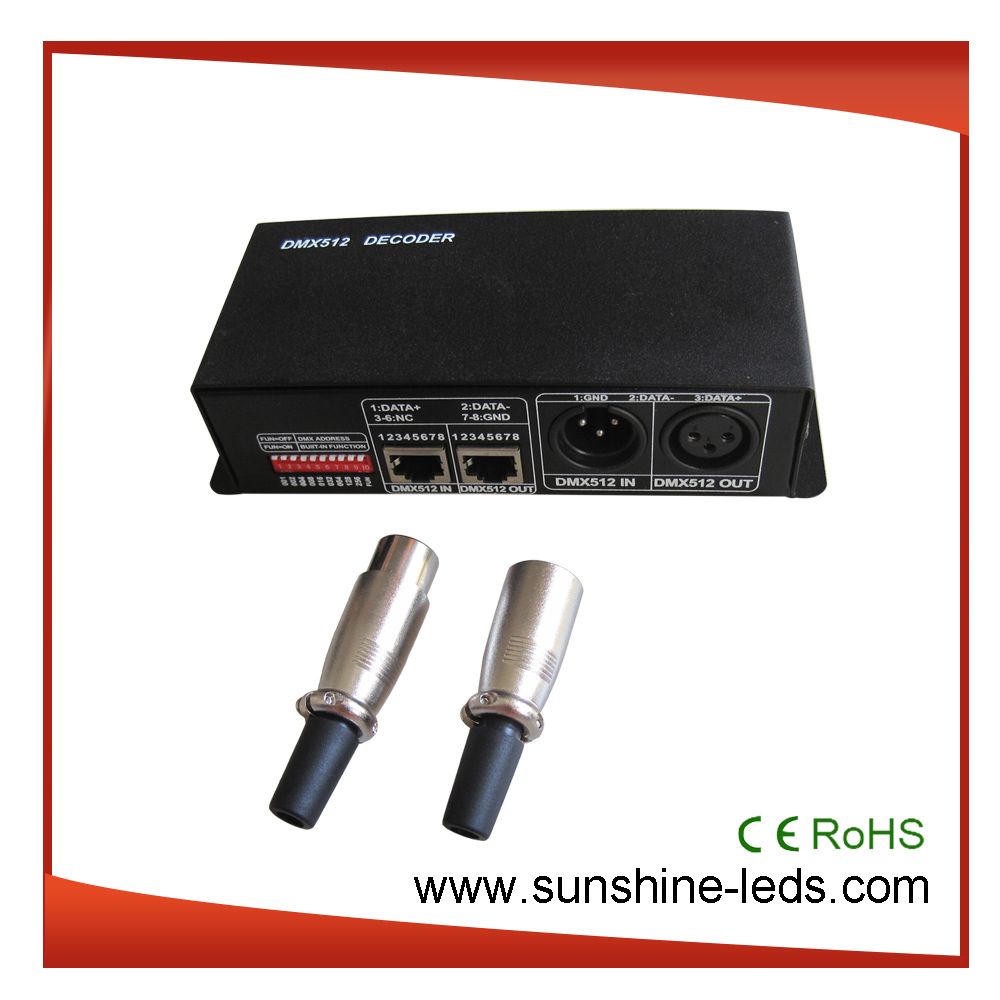

RGB DMX LED Remote Controller for RGB LED Strip Light

Prod Model:	SU-DMX512-4CH
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Output:	4 Channels
Supply Voltage:	12V, 24V
Connectiing Mode:	Common Anode
Output Current:	<8 a
Output Power:	Max 768W
Certificate:	CE&RoHS
Warranty:	2 Years
Item Type:	DMX LED Controller
Static Power Consumption:	< 1 a
Working Temperature:	-20-60
Type:	Button
Signal Transmission:	DMX LED Controller
Application:	LED Lighting

Product Description

Rgb dmx led remote controller for RGB led strip light

Led controller, led remote controller, rgb led controller, Rf Led Controller, led controller wifi, led remote control, remote controlled led bracelet, rgb led controller wifi


Summarization:

DMX common controller adopts the advanced micro control unit, it receives standard DMX-512 digital
Control signal and transformed it into PWM signal for driving LED; You could connect DMX module with DMX
Digital console to achieve dimming or various changes in procedures.


Technical Parameters

Working temperature: -20-60
Supply voltage: 5V~24VDC
Output: 4 channels
External dimension: L165W68H40(mm)
Packing size: L180W95H60(mm)
Net weight: 320g
Gross weight: 355g
Static power consumption: <1W
Output current: Each channel 8A
Output power: 5V: <160W, 12V: <432W, 24V: <768W


Direction for use

DMX address code settings
Each DMX common controller occupied 4 DMX addresses, adopt coding switch set address, it is a Binary
Numerical code switch which is setting DMX original address code from 1 to 9, 1 is the lowest, and 9 is the
Highest, 511 address codes could be setted in all. DMX original address code equal aggregate value of the
Coding switch value from 1 to 9, dial the coding switch upwards(ON is setted 1), the value of bit can be gotten, on
The contrary, the value of bit is 0.
DMX signal can be received when coding switch FUN(10)=OFF(ON is setted 0).
1. Example 1:
Look at the following picture, if you want to set 37 as the address code, you can only dial down the first, the third
And the sixth code switch, the aggregate value of coding switch value from 1 to 9 is 32+4+1, that is, the original
Address code of DMX512 is 37.
