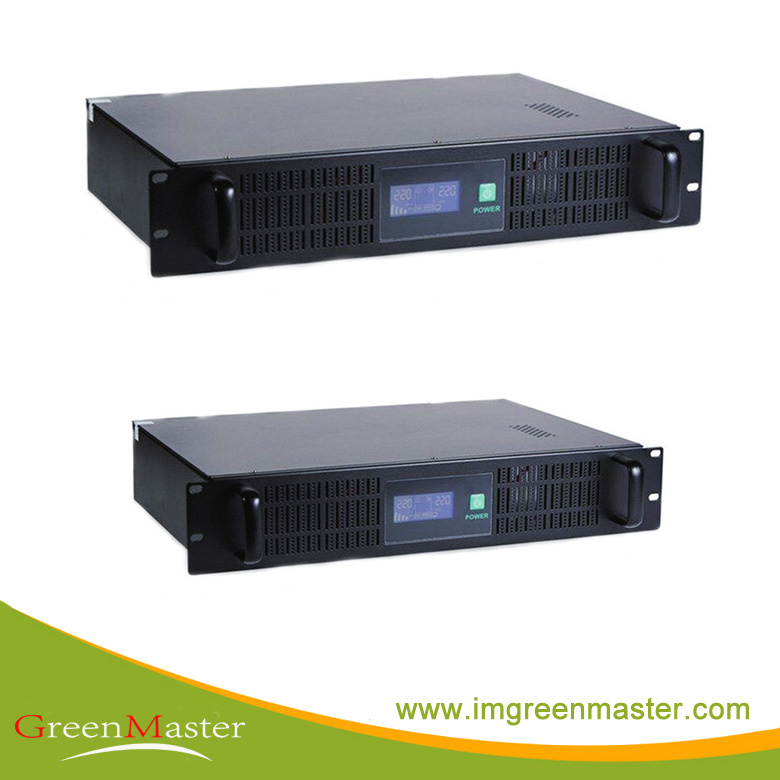

Rsmd 1000-1500va Line Interactive UPS

Name: Rsmd 1000-1500va Line Interactive UPS
Brand: all-electronics-online.com
SKU: 839230595
Availability: InStock
Rating: 4.7 (105 reviews)

Price:	US $ 71.8-74.32/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	RSMD1000-1500VA
Product Name:	Rsmd 1000va-1500va Line Interactive UPS
Size:	455195330mm
Input:	75-150 or 145-290+-5VAC
Phase:	Single Phase
Type:	Line Interactive
Protection:	Overvoltage
Classification:	UPS
Output Capacity:	Depend on Capacity
Brand:	Greenmaster

Product Description

RSMD 1000-1500VA Line Interactive UPS

* I/P: 220VAC or 110VAC , O/P:220VAC or 110VAC ± 5%

* Capacity:1000VA/1500VA

* Output: PF 0.6, Modified sine wave

* Transfer Time:4-6ms normal ,max 8 ms

* DC Voltage: 24VDC

* Bat.:1KVA :2PCS 7.2AH,1.5KVA:2PCS 9AH

* Full Bridge, CPU Control,USB

Key features:

1.CPU Control, SMD Technology

2.Boost and Bluck AVR

3.Protection for Short circuit ,overload and battery low voltage

4.LED indication and audible alarm function

5.Silence Setup

6.Intelligent battery management

7.AUTO Restart function when AC recovers

8.Off charge function

9.Cold start function

10.RJ11/RJ45 is option

11.USB is option

12.LCD display is option

TECHNOLOGY SPECS

ITEM	MODEL	RSMD1000	RSMD1500
Capacity		1KVA/600W	1.5KVA/900W
Input	Input Voltage	75-150 or 145-290+-5VAC
	Input Frequency	50/60HZ+-5% (AUTO Sensing)
Output	Wave Form	Modified Sine Wave
	Output Voltage	120/220/230/240VAC;50-127V,100-255V
	Transfer Time	4~6ms normal ,Max8Ms
	Output Frequency	50.0/60Hz±1.0Hz (Battery Mode),follow Main while AC Mode
Battery And Charger	Battery protection	FUSE
	DC Voltage	24VDC
	Standard UPS	2*7AH	2*9AH
	Battery
	Backup time	30-60Minutes(1PC+15 inch CRT)	40-80Minutes(1PC+15 inch CRT)
LED Display		LED display for AC/ DC mode and Fault. LCD is option
LCD Display		I/P OP VAC HZ , BAT %, Load % ,Work mode,Alarm
Alarm		Alarm while DC mode/ Battery low / Overload /Battery replacement.
Enviromental Characteristics	Ambient Temp.	0 to 40 degree celsius
	Relative Humidity	0% to 90%
	Storage Temp.	-15 to 40 degree celsius
	Noise Level	40dB(Max)
Product Size		455195330	455195330
