| Prod Model: |
Patchcord |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Cable Length: |
1m.3m.5m or Customized |
| Operating Temperature: |
-40c~+80c |
| Fiber Mode: |
Single Mode or Multi-Mode |
| Cable Diameter: |
1.8/2.0/2.8 |
| Operation Wavelenghth(Nm): |
1310/1550nm |
| Export Markets: |
Global |
| Insertion Loss: |
0.2dB |
| Connector Type: |
FC/St/Sc/LC |
| Application: |
FTTH, FTTB, LAN, CATV |
| Type: |
Single-mode Fiber |
| Connection Structure: |
SC |
| Certification: |
CCC |
| Core: |
Simplex Duplex Quard |
| Brand: |
Takfly |
| Sheath Material: |
PVC, LSZH |
Product Description

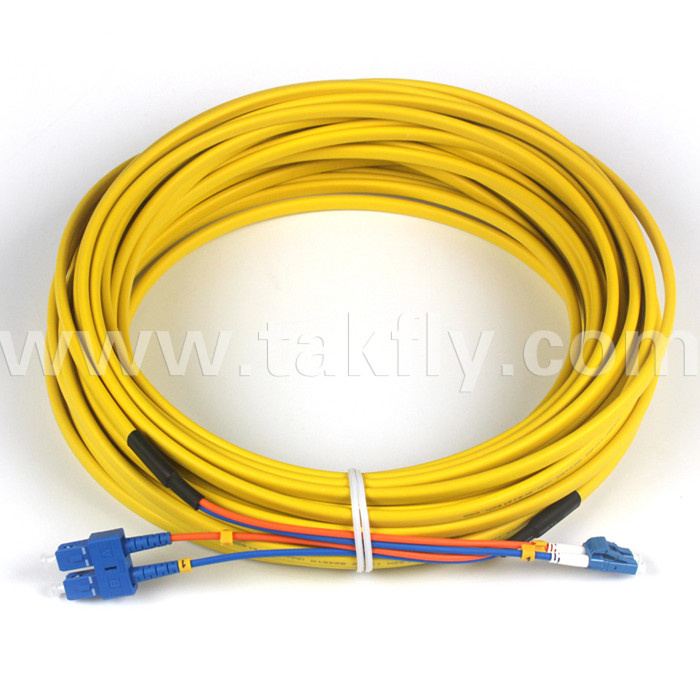

Ruggedised Flat Twin Duplex Fiber Optic Patchcord
Application:
1.Adopted to indoor distribution.
2.As pigtail of communication equipment.
3.Suitable for communication equipment served.
4.Can be installed conveniently and perated simply.
Characteristics:
1. Two single-fiber as basic unit .flat twin configuration.
2.Single-cable with independent strength member.
3.Tight buffer.(900um or 600um)
Order options:
1. Fiber type: single mode or Multi mode
2. Outer jacket: PVC or LSZH
3. Aramid yarn: Chinese yarn or Kevlar yarn
4. Cable size: tight buffer size(find it on the first table)
Technical Parameters:
Out sheath
Diameter |
Tight buffer
Diameter |
Weight |
Minimum allowable Tensile Strength
(N) |
minimum allowable Crush Load
(N/100mm) |
Minimum Bending Radius
(MM) |
Storage
temperature |
(MM) |
(MM) |
(KG) |
short term |
long term |
short term |
long term |
short term |
long term |
(°C) |
3.0×5.0 |
1.8 |
56.00 |
800 |
300 |
1000 |
500 |
20D |
10D |
-20+60 |
3.2×5.6 |
2.0 |
68.00 |
800 |
300 |
1000 |
500 |
20D |
10D |
-20+60 |
5.0×8.0 |
2.8 |
87.00 |
800 |
300 |
1000 |
500 |
20D |
10D |
-20+60 |
Optical Characteristics: |
Fiber Sort |
Multimode |
G.651 |
A1a:50/125 |
Graded-index fiber |
A1b:62.5/125 |
Singlemode |
G.652(A,B,C) |
B1.1:Conventional fiber |
G.652D |
B2: Zero dispersion shifted |
G.655 |
B1.2 :Cut-off wavelength shifted |
G.657(A1,A2 ,B3) |
B4: Main technical data for positive
dispersion shifted single-mode fiber |
Fiber Cladding:
Fiber Type (Core/Dladding Dimension) |
8.3/125, 50/125, 62.5/125 |
Transmission Characteristics:
Fiber Mode |
SMF |
50/125 |
62.5/125 |
Wavelength |
1310/1550(nm) |
850/1300(nm) |
850/1300(nm) |
Max Attenuation (dB/km) |
0.45/0.30 |
3.5/1.5 |
3.5/1.5 |
AVG. Attenuation (dB/km) |
0.40/0.25 |
3.0/1.0 |
3.0/1.0 |
Min Bandwidth (MHz/km) |
-- |
400/400 |
160/500 |
Environmental Characteristics:
Storage/Operating Temperature |
-20ºC~+60ºC |
For any question, pls feel free to contact us. Your inquiry is expected! Warmly welcom you to inquiry us for this product
