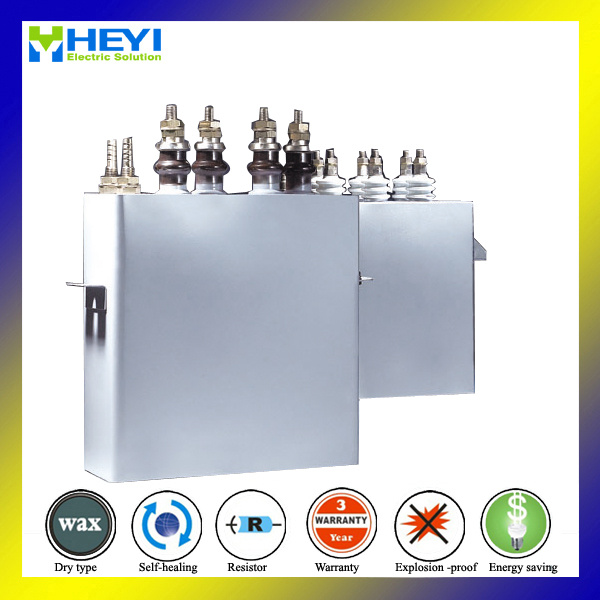

Rwf Electrothermal Capacitor Sh Capacitor

Prod Model:	RWF0.75-1000-40S
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Material:	Anti Rust Metal Sheet
Terminal Connection:	Porcelain Bushing Y Type
2400Hz Capacitor Function:	Reduce Reactive
Medium:	Wax Type
Release Electricity Time:	30 Second
Anti Explosion:	Explosion Device Inside
2400Hz Capacitor Type:	Self Healing High Voltage
IEC Standard:	IEC60831
Phase:	2400Hz Capacitor Three Phase
Handle Sample Time:	5 Days
Type:	Polypropylene Capacitor
Application:	High Voltage
Capacitance:	>100uf
Package Type:	Surface Mount

Product Description

RWF Electrothermal capacitor sh capacitor
RWF Electrothermal capacitor sh capacitor specification

ite	Specification	Voltage	Kvar	Hz	Rated UF	A	B	h	H	weight
1	RFM40.25-500-3S	0.25	500	3	424.4	440	165	310	403	33
2	RFM20.375-160-8SB	0.375	160	8	22.64	303	120	200	293	13
3	RFM20.375-250-20S	0.375	250	20	14.15	303	120	175	268	11
4	RFM 0.375-750-1S	0.375	750	1	848.8	440	205	435	528	56
5	RFM20.5-400-40S	0.5	400	40	6.366	303	120	270	363	15
6	RFM20.5-640-20S	0.5	640	20	20.37	303	120	300	393	18
7	RFM50.65-1000-0.5S	0.65	1000	0.5	753.4	440	205	400	493	53
8	RFM30.65-1000-1S	0.65	1000	1	376.7	336	142	415	508	31
9	RFM30.65-1000-8S	0.65	1000	8	47.09	336	142	240	333	13
10	RFM20.75-160-8SB	0.75	160	8	5.659	303	120	200	293	12
11	RFM20.75-250-2.5S	0.75	250	2.5	28.29	303	120	200	293	12
12	RFM20.75-320-8S	0.75	320	8	11.32	303	120	200	293	12
13	RFM20.75-360-1S	0.75	360	1	101.9	303	120	240	333	14
14	RFM220.75-360-1S	0.75	360	1	101.9	303	120	270	363	15
15	RFM20.75-360-50S	0.75	360	50	2.037	303	120	200	293	12
16	RFM20.75-500-2.5S	0.75	500	2.5	56.59	303	120	220	313	13
17	RFM20.75-560-4S	0.75	560	4	39.61	303	120	240	333	14
18	RFM20.75-640-8S	0.75	640	8	22.64	303	120	175	268	11
19	RFM30.75-720-1S	0.75	720	1	203.7	336	142	270	363	19
20	RFM320.75-720-1S	0.75	720	1	203.7	336	142	310	403	23
21	RFM30.75-750-0.5S	0.75	750	0.5	424.4	336	142	515	608	38
22	RFM40.75-1000-0.5S	0.75	1000	0.5	565.9	440	165	400	493	42
23	RFM30.75-1000-1S	0.75	1000	1	282.9	336	142	360	453	26
24	RFM320.75-1000-1S	0.75	1000	1	282.9	336	142	410	503	31
25	RFM330.75-1000-1S	0.75	1000	1	282.9	336	142	450	543	33
26	RFM60.75-1000-1S	0.75	1000	1	282.9	336	165	375	468	33
27	RFM30.75-1000-2.5S	0.75	1000	2.5	113.2	336	142	270	363	19
28	RFM30.75-1000-8S	0.75	1000	8	35.37	336	142	220	313	18
29	RFM30.75-1000-30S	0.75	1000	30	9.431	336	142	240	333	19
30	RFM30.75-1500-1S	0.75	1500	1	424.4	336	142	515	608	38
31	RFM40.75-1500-1S	0.75	1500	1	424.4	440	165	350	443	40
32	RFM30.75-1500-2.5S	0.75	1500	2.5	169.8	336	142	340	433	24
33	RFM40.75-2000-1S	0.75	2000	1	565.9	440	170	400	493	41
34	RFM420.75-2000-1S	0.75	2000	1	565.9	440	170	465	558	48
35	RFM40.75-2000-6S	0.75	2000	6	94.31	440	165	240	333	26
36	RFM40.8-2000-1.5S	0.8	2000	1.5	331.6	440	165	350	443	40
37	RFM31.0-1000-1S	1	1000	1	159.2	336	142	360	453	26
38	RFM21.0-1000-20S	1	1000	20	7.958	303	120	240	333	14
39	RFM31.175-2000-2.7S	1.175	2000	2.7	85.39	336	142	350	443	25
40	RFM41.2-1000-0.5S	1.2	1000	0.5	221	440	165	325	418	33
41	RFM421.2-1000-0.5S	1.2	1000	0.5	221	440	165	360	453	41
42	RFM31.2-1000-1S	1.2	1000	1	110.5	336	142	300	393	22
43	RFM41.2-1200-0.7S	1.2	1200	0.7	189.5	440	165	300	393	30
44	RFM41.2-1500-0.5S	1.2	1500	0.5	331.6	440	165	465	558	44
45	RFM421.2-1500-0.5S	1.2	1500	0.5	331.6	440	165	495	588	50
46	RFM51.2-2000-0.5S	1.2	2000	0.5	442.1	440	205	435	528	56
47	RFM41.2-2000-1S	1.2	2000	1	221	440	165	360	453	40
48	RFM51.4-2000-0.5S	1.4	2000	0.5	324.8	440	205	425	518	55
49	RFM 1.5-1000-0.2S	1.5	1000	0.2	353.7	440	205	495	588	67
50	RFM3 1.5-1000-1S	1.5	1000	1	70.74	336	142	340	433	24
51	RFM3 1.5-2000-2.5S	1.5	2000	2.5	56.59	336	142	400	493	30
52	RFM3 1.6-1000-0.5S	1.6	1000	0.5	124.3	336	142	450	543	33
53	RFM 1.6-2000-0.5S	1.6	2000	0.5	248.7	440	205	390	483	52
54	RFM 1.6-3000-0.5S	1.6	3000	0.5	373	440	205	560	653	70
55	RFM 1.7-1500-0.25S	1.7	1500	0.25	330.4	440	205	610	703	78
56	RFM 1.7-3000-0.5S	1.7	3000	0.5	330.4	440	205	590	683	72
57	RFM 2.0-3000-4S	2	3000	4	29.84	440	165	350	454	38
58	RFM5 2.2-2000-0.5S	2.2	2000	0.5	131.5	440	205	435	539	56
59	RFM 2.4-2000-0.5S	2.4	2000	0.5	110.5	440	205	435	539	56


RWF Electrothermal capacitor sh capacitor advantage
1.20 years global leading profession manufacture of power capacitor
2.Metallized polypropylene film work with 20 degree the whole day
3.Import auto machine wind the film core in order confirm the core quality
4.each core will test the capacity by auto machine
5.Each products will put explosion proof device and release resistor
6.OEM is warmly welcome
 7.Convenient : 45 minutes to wenzhou airport

RWF Electrothermal capacitor sh capacitor  function
1.voltage : rated voltage not more than 3.6kV,
2.release heat method : water cooling pipe for reduce the heat
3.frequency range :the AC power system frequency 50kHz
4.function :designed to improve the induction heating, melting, mixing and casting device and power factor like applications.

RWF Electrothermal capacitor sh capacitor Payment terms
1. 30% T/T advance , the balance against to the copy B/Lor LC at sigh
2. The other specific issues can negorate.
3. Pls confirm the details with us before do the prepayment.

RWF Electrothermal capacitor sh capacitor Packing information
1. Inside foam package ,outside strong paper package
2. 2pcs/per CTN
3. G/N.W: 40/38kg
4. We can packing as your required,good looking design

Why choose RWF Electrothermal capacitor sh capacitor
1).ISO9001,SGS,Gold golden supplier
2) Monthly Production Capacity -- 100000 Pcs
3)All goods examined before delivery by 10 QC staff
4)Prompt Reply Within 12 Hours
5)8000 square meters work environment
