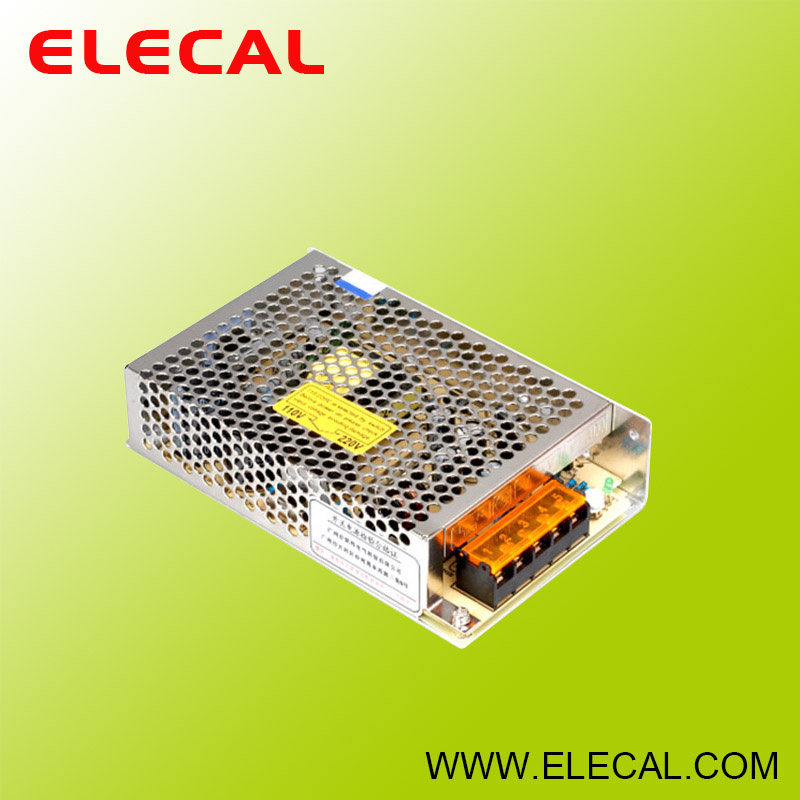

S-50 Single Output Switching Power Supply

Name: S-50 Single Output Switching Power Supply
Brand: all-electronics-online.com
SKU: 828877485
Availability: InStock
Rating: 4.9 (140 reviews)

Price:	Negotiable/Piece
Min Order:	1/Piece
Pay Type:	T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	S-50
Frequency Range:	47-63Hz
Warranty:	2 Years
Certification:	CE
Output Type:	Single Output
Output Power:	50W/51W
Input Voltage:	85 -132VAC /170 - 264VAC
Brand:	Elecal

Product Description

MODEL		S-50-5	S-50-12	S-50-15	S-50-24
OUTPUT	DC VOLTAGE	5V	12V	15V	24V
	RATED CURRENT	10A	4.2A	3.4A	2.1A
	CURRENT RANGE	0-10A	0-4.2A	0-3.4A	0-2.1 A
	RATED POWER	50W	50.4W	51W	50.4W
	RIPPLE & NOISE (max.) Nott^	75mVp-p	100mVp-p	100mVp-p	100mVp-p
	VOLTAGE ADJ. RANGE	475-5.5V	10.8-13.2V	13.5-16.5V	22.6 - 26.4V
	VOLTAGE TOLERANCE NotoJ	12.0%	±1.0%	±1.0%	±1.0%
	LINE REGULATION	±0.5%	±0.5%	±0.5%	±0.5%
	LOAD REGULATION	±1.0%	±0.5%	±0.5%	±0.5%
	SETUP, RISE, HOLD TIME	200ms, 100ms, 20ms at full load
INPUT	VOLTAGE RANGE	85 -132VAC /170 - 264VAC selected by switch 240-370VDC
	FREQUENCY RANGE	47_63Hz
	EFFICIENCY(Typ.)	71%	78%	78%	82%
	AC CURRENT	1.3A/115VAC 0.65A/230VAC
	INRUSH CURRENT(max.)	COLD START 18A/115VAC 36A/230VAC
	LEAKAGE CURRENT	<1mA/240VAC
PROTECTION	OVERLOAD	105 ~ 150% rated output power
PROTECTION	OVERLOAD	Protection type: Fold back current limiting, recovers automatically after fault condition is removed.
ENVIRONMENT	WORKING TEMP.	-10 - +60DC {Refer to output load derating curve)
	WORKING HUMIDmr	20 ~ 90% RH non-condensing
	STORAGE TEMP., HUMIDrTY	-20-+85°C,10-95% RH
	TEMP. COEFFICIENT	±0.03%°C(0-50°C)
	VIBRATION	10-500Hz, 2G lOmln./lcycle, period for 60mln. each alongX, Y, Zaxes
SAFETY&EMC	SAFETY STANDARDS	Design refer to UL1012
	WITHSTAND VOLTAGE	l/P-0/P:1.5KVAC l/P-FG:1.5KVAC O/P-FG:0.5KVAC
	ISOLATION RESISTANCE	l/P-O/P, l/P-FG, O/P-FG:100M Ohms/500VDC
	EMI CONDUCTION & RADIATION	Design refer to FCC Parti 5 J Conduction Class B
OTHERS	MTBF	408_3Khrs min. MIL-HDBK-217F (25°C)
	DIMENSION	1599738mm (LWH)
	PACKING	0.51 Kg; 24pcs/13.1Kg/0.7CUFT
NOTE	1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 2bV of ambient temperature. 2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1 uf & 47uf parallel capacitor. 3. Tolerance : Includes set up tolerance, line regulation and load regulation.
