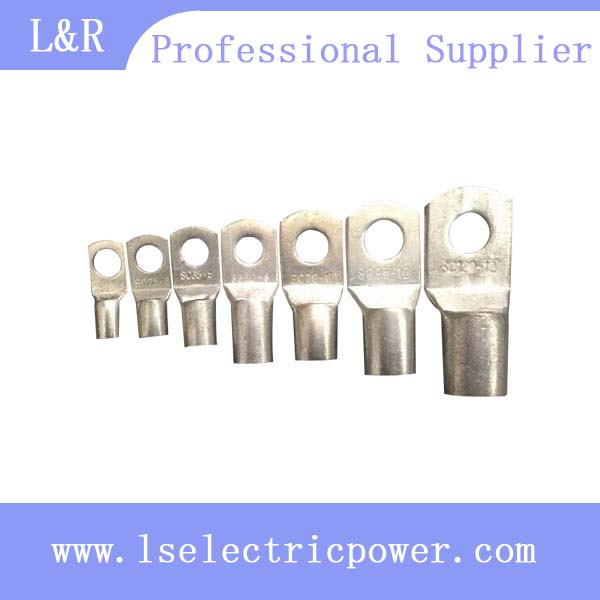

Sc 99.9 Percent Pute Copper Tube T2 and Coated with Tin Terminal Lugs
| Price: |
US $ 0.02-5/Piece |
| Trade Terms: |
FOB |
| Min Order: |
500/Piece |
| Pay Type: |
L/C,T/T,Western Union,Paypal,Money Gram |
| Prod Model: |
SC70-10 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Working Terperature: |
-55oc-150oc |
| Section: |
1.5-1000mm2 |
| Copper Percent: |
99.9 |
| Material: |
Copper |
| Application: |
Conduct Electricity |
| Brand: |
L&R |
Product Description
These products are suitable for the connection of copper conductors(section 1.5-1000mm2)in power cable with electronic equiqment.
They are made of with higher 99.9 percent pute copper tube T2 and coated with tin.Working temperature-55ºC-150ºC.
| ITEM NO | Screw dia | Dimension(mm) | Cable size(mm²) |
| (mm) | W | d | D | L | L1 | S |
| SC1.5-5 | #10 | 5.3 | 8 | 1.8 | 3.3 | 16 | - | - | 1.5 |
| SC2.5-4 | #8 | 4.3 | 8 | 2.4 | 4 | 19.6 | 8 | - | 2.5 |
| SC2.5-5 | #10 | 5.3 | 8 | 2.4 | 4 | 19.6 | 8 | - | 2.5 |
| SC2.5-6 | 1/4 | 6.5 | 10 | 2.4 | 4 | 21 | 8 | - | 2.5 |
| SC4-4 | #8 | 4.3 | 10 | 3.1 | 4.8 | 21 | - | - | 4 |
| SC4-5 | #10 | 5.3 | 10 | 3.1 | 4.8 | 21 | - | - | 4 |
| SC4-6 | 1/4 | 6.5 | 10 | 3.1 | 4.8 | 21 | - | - | 4 |
| SC6-4 | #8 | 4.3 | 10 | 3.8 | 4.8 | 25.5 | - | - | 6 |
| SC6-5 | #10 | 5.3 | 10 | 3.8 | 5.5 | 25.5 | - | - | 6 |
| SC6-6 | 1/4 | 6.5 | 10 | 3.8 | 5.5 | 25.5 | - | - | 6 |
| SC10-6 | 1/4 | 6.5 | 12.6 | 4.5 | 6.2 | 27 | 10 | 1.1 | 10 |
| SC10-8 | 5/16 | 8.4 | 12.6 | 4.5 | 6.2 | 27 | 10 | 1.1 | 10 |
| SC16-6 | 1/4 | 6.5 | 12.6 | 5.5 | 7.2 | 29.5 | 10.5 | 1.3 | 16 |
| SC16-8 | 5/16 | 8.4 | 12.6 | 5.5 | 7.2 | 29.5 | 10.5 | 1.3 | 16 |
| SC25-6 | 1/4 | 6.5 | 15 | 7 | 9 | 33 | 12 | 1.65 | 25 |
| SC25-8 | 5/16 | 8.4 | 15 | 7 | 9 | 33 | 12 | 1.65 | 25 |
| SC25-10 | 3/8 | 10.5 | 15 | 7 | 9 | 33 | 12 | 1.65 | 25 |
| SC35-6 | 1/4 | 6.5 | 15.2 | 8.2 | 10.6 | 38 | 14.2 | 2.5 | 35 |
| SC35-8 | 5/16 | 8.4 | 15.2 | 8.2 | 10.6 | 38 | 14.2 | 2.5 | 35 |
| SC35-10 | 3/8 | 10.5 | 15.2 | 8.2 | 10.6 | 38 | 14.2 | 2.5 | 35 |
| SC50-8 | 5/16 | 8.4 | 18.5 | 10 | 13 | 44.5 | 18 | 2.9 | 50 |
| SC50-10 | 3/8 | 10.5 | 18.5 | 10 | 13 | 44.5 | 18 | 2.9 | 50 |
| SC50-12 | 1/2 | 13 | 18.5 | 10 | 13 | 44.5 | 18 | 2.9 | 50 |
| SC70-8 | 5/16 | 8.4 | 21.4 | 11.5 | 15 | 54.2 | 20.4 | 3.5 | 70 |
| SC70-10 | 3/8 | 10.5 | 21.4 | 11.5 | 15 | 54.2 | 20.4 | 3.5 | 70 |
| SC70-12 | 1/2 | 13 | 21.4 | 11.5 | 15 | 54.2 | 20.4 | 3.5 | 70 |
| SC95-10 | 3/8 | 10.5 | 25.5 | 13.5 | 17.4 | 59 | 23.4 | 3.9 | 95 |
| SC95-12 | 1/8 | 13 | 25.5 | 13.5 | 17.4 | 59 | 23.4 | 3.9 | 95 |
| SC120-10 | 3/8 | 10.5 | 28.3 | 15.5 | 19.9 | 66.7 | 24.6 | 4.5 | 120 |
| SC120-12 | 1/2 | 13 | 28.3 | 15.5 | 19.9 | 66.7 | 24.6 | 4.5 | 120 |
| SC120-14 | 9/16 | 15 | 28.3 | 15.5 | 19.9 | 66.7 | 24.6 | 4.5 | 120 |
| SC120-16 | 5/8 | 17 | 28.3 | 15.5 | 19.9 | 66.7 | 24.6 | 4.5 | 120 |
| SC150-12 | 1/2 | 13 | 31 | 17 | 21.7 | 74.5 | 29.5 | 4.5 | 150 |
| SC150-14 | 9/16 | 15 | 31 | 17 | 21.7 | 74.5 | 29.5 | 4.7 | 150 |
| SC150-16 | 5/8 | 17 | 31 | 17 | 21.7 | 74.5 | 29.5 | 4.7 | 150 |
| SC185-12 | 1/2 | 13 | 34.2 | 19 | 24 | 81.4 | 32.5 | 5 | 185 |
| SC185-14 | 9/16 | 15 | 34.2 | 19 | 24 | 81.4 | 32.5 | 5 | 185 |
| SC185-16 | 5/8 | 17 | 34.2 | 19 | 24 | 81.4 | 32.5 | 5 | 185 |
| SC240-14 | 9/16 | 15 | 39 | 21.5 | 27 | 94 | 35.5 | 5.5 | 240 |
| SC240-16 | 5/8 | 17 | 39 | 21.5 | 27 | 94 | 35.5 | 5.5 | 240 |
| SC240-18 | 11/16 | 19 | 39 | 21.5 | 27 | 94 | 35 | 5.5 | 240 |
| SC300-14 | 9/16 | 15 | 44 | 24.5 | 31 | 103.2 | 42 | 6.5 | 300 |
| SC300-16 | 5/8 | 17 | 44 | 24.5 | 31 | 103.2 | 42 | 6.5 | 300 |
| SC300-18 | 11/16 | 19 | 44 | 24.5 | 31 | 103.2 | 42 | 6.5 | 300 |
| SC300-20 | 3/4 | 21 | 44 | 24.5 | 31 | 103.2 | 42 | 6.5 | 300 |
| SC300-22 | 7/8 | 23 | 44 | 24.5 | 31 | 103.2 | 42 | 6.5 | 300 |
| SC300-24 | 15/16 | 25 | 44 | 24.5 | 31 | 103.2 | 42 | 6.5 | 300 |
| SC400-14 | 9/16 | 15 | 51 | 27.5 | 35.5 | 120.2 | 47 | 8 | 400 |
| SC400-16 | 5/8 | 17 | 51 | 27.5 | 35.5 | 120.2 | 47 | 8 | 400 |
| SC400-18 | 11/16 | 19 | 51 | 27.5 | 35.5 | 120.2 | 47 | 8 | 400 |
| SC400-20 | 3/4 | 21 | 51 | 27.5 | 35.5 | 120.2 | 47 | 8 | 400 |
| SC400-22 | 7/3 | 23 | 51 | 27.5 | 35.5 | 120.2 | 47 | 8 | 400 |
| SC400-24 | 15/16 | 258 | 51 | 27.5 | 35.5 | 120.2 | 47 | 8 | 400 |
| SC500-14 | 9/16 | 15 | 56 | 31 | 40 | 127 | 47.5 | 9 | 400 |
| SC500-16 | 5/8 | 17 | 56 | 31 | 40 | 127 | 47.5 | 9 | 500 |
| SC500-18 | 11/16 | 19 | 56 | 31 | 40 | 127 | 47.5 | 9 | 500 |
| SC500-20 | 3/4 | 21 | 56 | 31 | 40 | 127 | 47.5 | 9 | 500 |
| SC500-22 | 7/8 | 23 | 56 | 31 | 40 | 127 | 47.5 | 9 | 500 |
| SC500-24 | 15/16 | 25 | 56 | 31 | 40 | 127 | 47.5 | 9 | 500 |
| SC630-14 | 9/16 | 15 | 63 | 34.5 | 44.5 | 140 | 56 | 10 | 630 |
| SC630-16 | 5/3 | 17 | 63 | 34.5 | 44.5 | 140 | 56 | 10 | 630 |
| SC630-18 | 11/16 | 19 | 63 | 34.5 | 44.5 | 140 | 56 | 10 | 630 |
| SC630-20 | 3/4 | 21 | 63 | 34.5 | 44.5 | 140 | 56 | 10 | 630 |
| SC630-22 | 73/3 | 23 | 63 | 34.5 | 44.5 | 140 | 56 | 10 | 630 |
| SC630-34 | 11/16 | 25 | 63 | 34.5 | 44.5 | 140 | 56 | 10 | 630 |
Zhejiang Lawrence Electric Co., Ltd (referred as L&R) is located in Zhejiang China. It is composed by some branch companies, we also invested some domestic and foreign EPC projects.
L&R has possessed one of the major suppliers in the power and electrical fields for electrical
Projects in the world. Almost all products manufactured by the L&R members have been certified
By KEMA, CE, SGS and CNAS approved Lab.
L&R have been supplying Zinc Oxide Varistors, Surge Arresters, insulators, Fuse Cutouts, Air
Break switch, Load break switch, Vacuum Circuit Breaker, Isolators, Transformers, Switchgear,
Earth rods, Stay Rods, Pole Make Off, Guy grip, stay wire, Crossarm, clamp, bolts, Line hardware
And so on. Our member companies are required to have a long term proven track record of meeting contract
Obligations, superior quality, current technology and state-of-the-art manufacturing facilities.
Over a period of 10 years, our business has extended to South America, Middle East, Southeast
Asia, Africa, and other regions, and we had our sale agent and 4S maintenance company in some countries. To achieve the strategic objective of development, we are seeking for partners
For our sale agent and maintenance company in all the worldwide.
