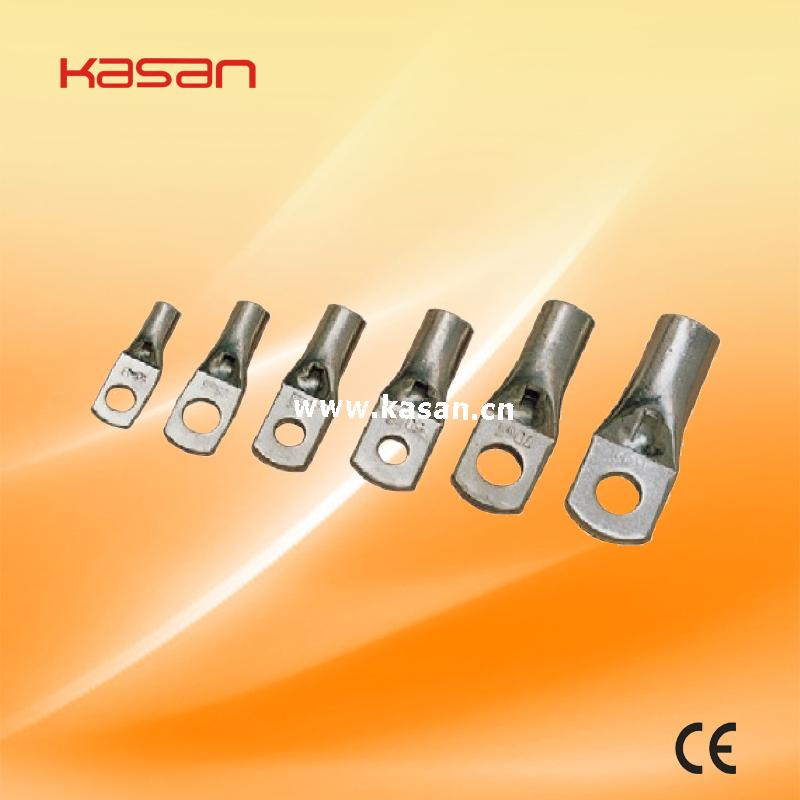

Sc (JGA) Imported Copper Connecting Terminal

Name: Sc (JGA) Imported Copper Connecting Terminal
Brand: all-electronics-online.com
SKU: 690110772
Availability: InStock
Rating: 4.8 (124 reviews)

Price:	Negotiable/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1000/Piece
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	Sc (JGA)
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Port:	Ningbo, Shanghai, Other
Price:	FOB USD 0.005~0.10 / Piece
Model Number:	RV, Sv, BV, Ptv, Frd, Mrd, FDD, Mdd, Sc, Jgk, Ot
Delivery Time:	20-25 Days
Material:	Purple Copper

Product Description

Aluminium Cable lug,connecting terminal

Application:

Aluminium Cable lug of copper-aluminum wiring terminals are suitable for transition connection of the circular aluminium wires,hemicycle-sector aluminium wires,power supply cables in the distribution equipment and copper terminals of the electrical equipment.The material of aluminium and copper is that of L3 and T2 respectively.The technology of function welding is wonderfully adopted.Therefore they have distinguishing features of strong weld intensity,good nature in electrification,resistant galvanic corrosion and long service life.

Type	E	A	C	L
SC(JGA)-1.5	Ø4.2,Ø5.2	3.5	1.8	18
SC(JGA)-2.5	Ø4.2,Ø5.2,Ø6.2	4	2.5	19
SC(JGA)-4	Ø5.2,Ø6.2	4.8	3.1	21
SC(JGA)-6	Ø5.2,Ø6.2,Ø8.2	5.5	3.8	24
SC(JGA)-10	Ø6.2,Ø8.2	6.8	4.8	25.5
SC(JGA)-16	Ø6.2,Ø8.2,Ø10.5	7.5	5.5	30.5
SC(JGA)-25	Ø6.2,Ø8.2,Ø10.5	9	7	34
SC(JGA)-35	Ø6.2,Ø8.2,Ø10.5,Ø12.5	10.5	8.2	38
SC(JGA)-50	Ø8.2,Ø10.5,Ø12.5	12.5	9.8	45
SC(JGA)-70	Ø8.2,Ø10.5,Ø12.5	14.5	11.5	50
SC(JGA)-95	Ø10.5,Ø12.5	17.5	13.8	55.5
SC(JGA)-120	Ø10.5,Ø16.5	19.5	15.5	63
SC(JGA)-150	Ø12.5,Ø16.5	21	16.5	71
SC(JGA)-185	Ø16.5	23.5	18.8	78
SC(JGA)-240	Ø16.5	26.5	21	92
SC(JGA)-300	Ø16.5,Ø20.5	30	24	102
SC(JGA)-400	Ø16.5,Ø20.5	34	26.5	113
SC(JGA)-500	Ø16.5,Ø20.5	38	30	123
SC(JGA)-630	Ø20.5	45	35	135
SC(JGA)-800	Ø22.5	50	39	170
SC(JGA)-1000	Ø22.5	56	44	200
