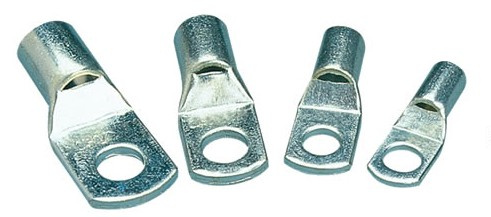

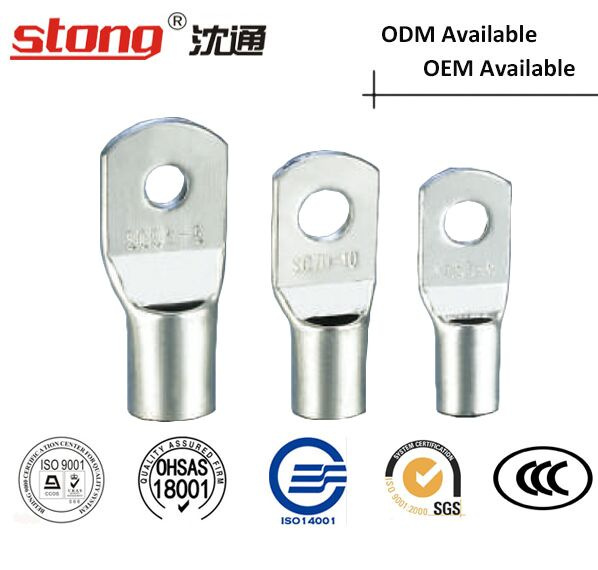

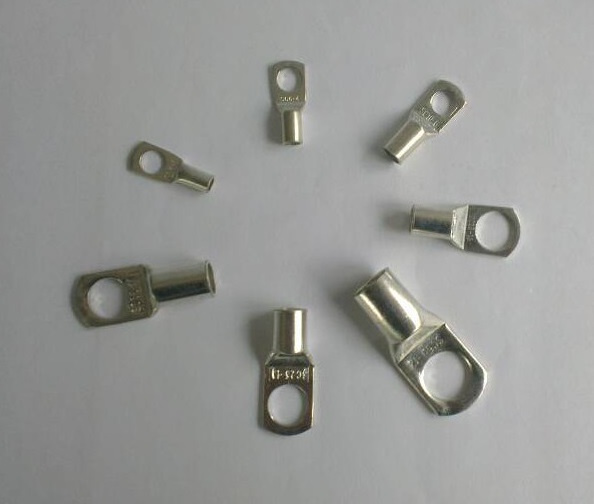

Sc Series Naked Copper Connecting Terminals Wire Crimp Terminal

Name: Sc Series Naked Copper Connecting Terminals Wire Crimp Terminal
Brand: all-electronics-online.com
SKU: 715699952
Availability: InStock
Rating: 4.7 (130 reviews)

Price:	US $ 12-15/Bag
Min Order:	50/Bag
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	SC
Type:	Socket Terminals
Material:	Copper
Application:	Conduct Electricity
Brand:	Shentong

Product Description

Advantages:
1.Our Company Has Great Reputation In Domestic Market.
2.Good Quality Guaranteed With Reasonable Price.
3.OEM, ODM Are Welcomed.
4.Goods Will Be Delivered On Time.
5.Factory Selling Directly

Product Description:

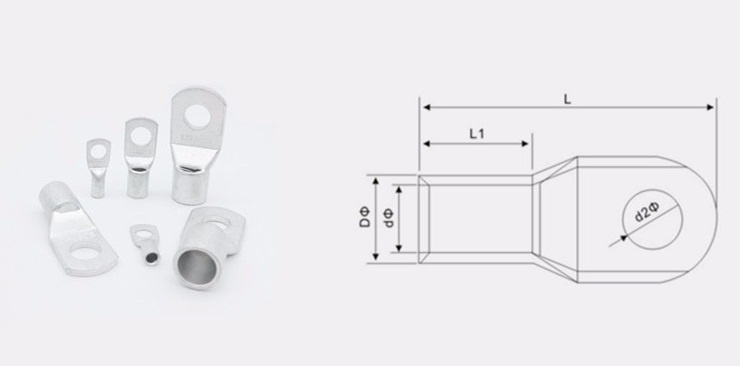

item NO SC(JGK)	d2Φ(mm)	Dimention(mm)			wire size(mm2)
item NO SC(JGK)	d2Φ(mm)	dΦ	DΦ	L	wire size(mm2)
SC 1.5-4	4.2	1.8	3.5	18	1.5
SC 1.5-5	5.2	1.8	3.5	18	1.5
SC 2.5-4	4.2	2.5	4	19	2.5
SC 2.5-5	5.2	2.5	4	19	2.5
SC 2.5-6	6.2	2.5	4	19	2.5
SC 4-5	5.2	3.1	4.8	21	4
SC 4-6	6.2	3.1	4.8	21	4
SC 6-5	5.2	3.8	5.5	24	6
SC 6-6	6.2	3.8	5.5	24	6
SC 6-8	8.2	3.8	5.5	24	6
SC 10-6	6.2	4.5	6.8	25.5	10
SC 10-8	8.2	4.5	6.8	25.5	10
SC 16-6	6.2	5.5	7.5	30.5	16
SC 16-8	8.2	5.5	7.5	30.5	16
SC 16-10	10.5	5.5	7.5	30.5	16
SC 25-6	6.2	7	9	34	25
SC 25-8	8.2	7	9	34	25
SC 25-10	10.5	7	9	34	25
SC 35-6	6.2	8.2	10.5	38	35
SC 35-8	8.2	8.2	10.5	38	35
SC 35-10	10.5	8.2	10.5	38	35
SC 35-12	12.5	8.2	10.5	38	35
SC 50-8	8.2	9.8	12.5	46.5	50
SC 50-10	10.5	9.8	12.5	46.5	50
SC 50-12	12.5	9.8	12.5	46.5	50
SC 70-8	8.2	11.5	14.5	49	70
SC 70-10	10.5	11.5	14.5	49	70
SC 70-12	12.5	11.5	14.5	49	70
SC 95-10	10.5	13.8	17.5	55	95
SC 95-12	12.5	13.8	17.5	55	95
SC 120-12	12.5	15.5	19.5	64.5	120
SC 120-16	16.5	15.5	19.5	64.5	120
SC 150-12	12.5	16.5	21	67	150
SC 150-16	16.5	16.5	21	67	150
SC 185-16	16.5	18.8	23.5	78	185
SC 240-16	16.5	21	26.5	84	240
SC 300-16	16.5	24	30	94	300
SC 300-20	20.5	24	30	94	300
SC 400-16	16.5	26.5	34	109	400
SC 400-20	20.5	26.5	34	109	400
SC 500-16	16.5	30	38	123	500
SC 500-20	20.5	30	38	123	500
SC 630-20	20.5	35	45	135	630
SC 800-20	22.5	39	50	170	800
SC 1000-20	22.5	44	56	200	1000

Shentong Technology Co., Ltd. is an integrated professional power equipment manufacturing enterprise of science, industry and trade, which is located in Wenzhou, Zhejiang which is called "The city of electrical"in China. The current enterprise registration funds is one hundred million Yuan. Our company has throughed the ISO9001 international quality certification system. We are also the national power "two network transformation"recommended enterprise. Our company is specialized in the production of HV/LV Integrated Switchgears and switchgears' accessories, power station accessories, such as: Power Transformer, 10kv-40.5kv intelligent vacuum circuit breaker, epoxy resin casting insulators, wall bushing, contact box, earthing switch, load switch, 10kv-35kv current transformer, 10kv-35kv voltage transformer, low voltage current transformers, solenoids, SF6 load switch, high voltage metering box and other electric components. Chinese professional terminal manufacture, Chinese vcb manufacture, electrical manufacture, switchgear manufacture, Chinese CT PT manufacture

Our company has a group of senior technical production staff. The company adopts modern production and management modes. With high quality products and perfect after sale Service, we got good reputation from customers. The products are widely used in aerospace, metallurgy, petrochemical, port, municipal and other industries.

We not only provide customers with excellent quality products, but also strive to use our years of professional experience to provide customers with the best solutions and characteristics of personalized services.

Product Advantages: Well and High Quality Control, Prompt Delivery, New Product, Customer's Design and Logo are Welcome, Competitive Prices, Earth-friendly Products, Small Order Acceptable, ODM Accepted, OEM Accepted,
