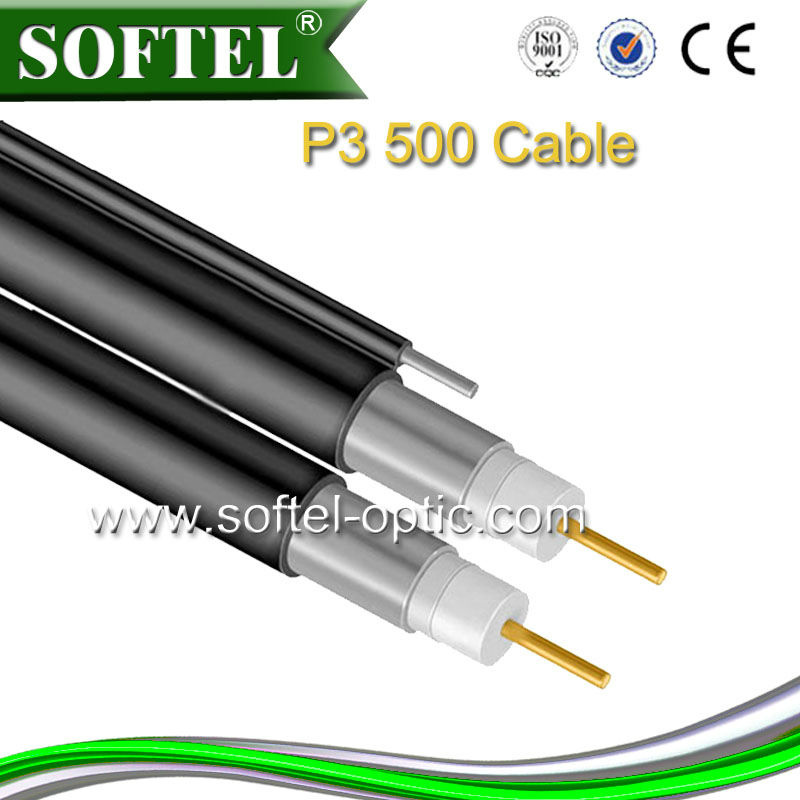

Seamless 500 Trunk Cable (P3 500)

Name: Seamless 500 Trunk Cable (P3 500)
Brand: all-electronics-online.com
SKU: 618484462
Availability: InStock
Rating: 4.7 (63 reviews)

Price:	US $ 0.815/Meter
Trade Terms:	FOB,CFR,CIF
Min Order:	1000/Meter
Pay Type:	L/C,T/T,Paypal,Money Gram,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	TC500(P3 500)
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Name:	Seamless 500 Trunk Cable(P3 500)
Central Conductor:	2.77±0.01mm Solid Copper/Copper Aluminum
Dielect:	11.43±0.05mm Foam PE
Outer Conductor:	12.70mm Aluminum Tube
Outer Conductor Thickness:	0.61mm
Jacket:	14.22+0.05mm PVC / PE
Jacket Wall Thickness:	0.76mm
Messenger:	2.77mm Steel
Application:	Coaxial Cable
Conductor Material:	Aluminum
Cover Material:	PE
Certification:	ISO
Type:	Aluminum Tube Cable

Product Description

CATV Outdoor Seamless 500 trunk cable (P3 500)

Construction

Center conductor: 2.77±0.01mm Solid Copper/Copper Aluminum
Dielectric: 11.43±0.05mm foam PE
Outer Conductor: 12.70mm Aluminum Tube
Outer Conductor thickness: 0.61mm
Jacket: 14.22+0.05mm PVC / PE
Jacket Wall Thickness: 0.76mm
Messenger(optional): 2.77mm Steel
Jelly/APD: Per Customer' Special Requirement

Characteristics

Min. bending radius: 8.9mm(jacketed)
Max. pulling tension: 68kgf
Min. thickness strength
Of messenger: 816kgf
Impedance: 75+2Ohm
Capacitance: 50+3nF/km, 15.3+1pF/ft
Velocity of Propagation: 88%

Nominal D.C. resistance @20°C

Copper clad:
Inner conductor 4.43ohms/km
Outer conductor 1.21ohms/km
Loop 5.64ohms/km

[@68 o F. (20 o C.)]
Frequency (MHz)	Maximum (dB/100 ft.)	Maximum (dB/100 m)
5	0.16	0.52
50	0.50	1.64
108	0.73	2.39
150	0.86	2.82
193	1.01	3.31
250	1.15	3.77
300	1.25	4.13
350	1.36	4.46
400	1.47	4.82
450	1.56	5.12
500	1.65	5.41
550	1.75	5.74
600	1.83	6.00
750	2.04	6.69
1000	2.41	7.91
