| Prod Model: |
winding |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Power Supply: |
220V/110V 50Hz/60Hz |
| Winding Dia: |
14-26 |
| Application: |
Cylinder or Square Cells Core |
| Equipment Capacity: |
2-5ppm |
| Supply 1: |
Lithium Ion Battery Materials |
| Supply 2: |
Lithium Ion Battery Machine |
| Type: |
Lithium-Ion Batteries |
| Usage: |
Cellphone |
| Nominal Voltage: |
6V |
| Discharge Rate: |
High Discharge Rate |
| Shape: |
Cylindrical Battery |
| Rechargeable: |
Chargeable |
Product Description

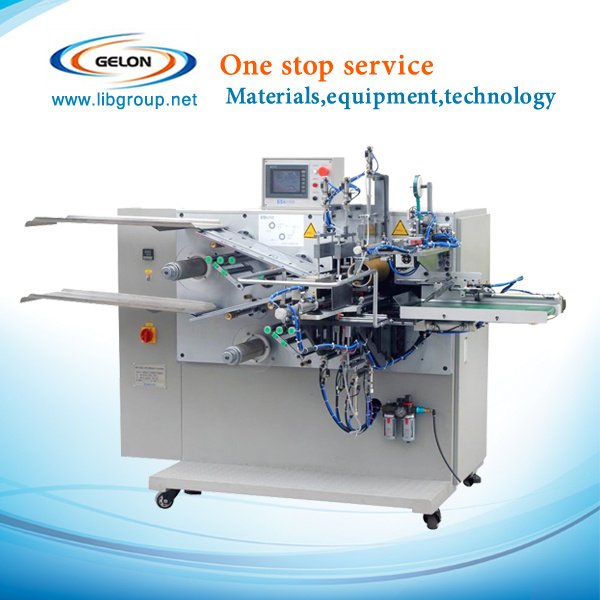

Semi-Automatic Winding Machine for Lithium Ion Battery1. Basic Function and Features:
It is mainly for square power LIB cell's precisionly winding.
2. SPECS
1)Winding needle group width:15-30mm;30-75mm
2)Separator width:80-130mm
3)Electrode width:78-128mm
4)Electrode length:300-1500mm
5)Ending tape width:10-15mm
6)Winding precision: the aligning error between separator and cathode,cathode and anode electrode all less than ±0.5 mm
Requests to materials:
A. Electrode width error less than 0.1mm
B. Electrode's S curve error less than 0.5mm/1000mm,also without raise edge phenomenon
C. Separator's turriform error less than ±0.2mm, also without raise edge phenomenon
7)Machine capacity:3-6PPM(related to the length of the electrode and the artificial feeding speed)
8)Drum shell rate:cell thickness<5mm,drum shell rate <2%
Cell thickness>5mm,drum shell rate<3%
3.Supporting facility:
1)Space: 1500 mm(L)×1300mm(D)×1500mm(H)
2)Supply power: 220 VAC±5%,Single phase,1 KW
3)Air supply: 5~7 kgf/cm²,100 l/min
4)Non-corrosive gases,liquids,explosive gas
We could supply one stop solution ( turn key project) for lithium ion battery production line.
1.Full set of lithium battery materials,including :
LiMn2O4,LTO,LiNiMnCoO2(NMC),LiCoO2,Graphite(MCMB)and other cathode&anode battery materials;Aluminum foil,copper foils,battery separator,etc.
2.Full set of lithium battery equipments,for example:
mixing machine --coating machine--oven--rolling machine--welding machine--slitting / cutiing machine --winding machine--sealed machine,etc.
3.Full set of lithium battery technology.
we can design the laboratory and production line,according to customer's request.
TKS FOR YOUR TIME,WELCOME TO INQUIRY.
