Semi-Rigid Coaxial Cable (HSR-250)

Name: Semi-Rigid Coaxial Cable (HSR-250)
Brand: all-electronics-online.com
SKU: 644118555
Availability: InStock
Rating: 4.3 (80 reviews)

Price:	Negotiable
Trade Terms:	By Air or By Sea
Min Order:	500/Meter
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	HSR-250

Product Description

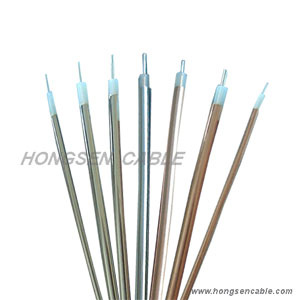

Semi Rigid Coaxial Cable (HSR-250)

Inner Conductor: 1.63mm SPC
Dielectric: 5.30mm PTFE
Outer Conductor: 6.35mm Copper/Tin-Plated Copper/Silver-Plated Copper

Capacitance (pF/m): 95.1
Impedance (Ω): 50 +/-2
Velocity of Propagation (%): 70.0
Max. Operating Frequency (GHz): 20.0
Min. Inside Bend Radius (mm): 22.2
Outer Conductor Integrity Temp (º C) 150.0
Operating Temp Range (º C) -55 to +125

Semi-rigid coaxial cable, 0.250 inch diameter 50 ohm coaxial cable with silver-plated copper clad steel center conductor, solid PTFE dielectric, and seamless copper, Tin-Plated Copper or Silver-Plated Copper as outer conductor. With low attenuation, low SWR, excellent screening effectiveness.

Hangzhou Hongsen Cable Co., Ltd. was established in 2002, a manufacturer specializes in RF & Microwave Coaxial Cables. mainly serving the defense, telecommunications, satellite, test and measurement markets.

Our products cover wireless RF Transmission cable, Mini Coax cable, Semi-Rigid, Semi-Flexible Microwave cable, RG MIL-C-17 Spec Cables, CCTV, CATV/MATV cable, satellite cable, video cable. Besides the standard cable, customer required cables are also available in our company.

Quality Control

Hongsen has developed a comprehensive quality assurance program and quality system. This program and system establishes controls throughout the entire manufacturing cycle -- from raw material purchasing and product manufacturing to end-item delivery. It also assures meeting quality objectives and minimizes the possibility of compromises which could affect product quality and reliability. The quality assurance program is complete and responsive to all requirements of ISO9001: 2000.

Our Mission

We are dedicated to providing our customers competitive price and excellent service.
