Siemens Type Earth Leakage Circuit Breaker RCCB 2p 4p

Name: Siemens Type Earth Leakage Circuit Breaker RCCB 2p 4p
Brand: all-electronics-online.com
SKU: 778565665
Availability: InStock
Rating: 4.8 (67 reviews)

Price:	US $ 1.85/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1000/Piece
Pay Type:	L/C,T/T,Money Gram,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	5SM1
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
6-80A:	2p/4p
OEM & ODM:	Simens
Hard Safety Packing:	Top Quality
Breaking Capacity:	Low Voltage Circuit Breakers
Operation:	Electric Type
Installation:	Fixed
Structure:	ELCB
Poles Number:	4
Certification:	CCC
Arc-extinguishing Medium:	RCCB

Product Description

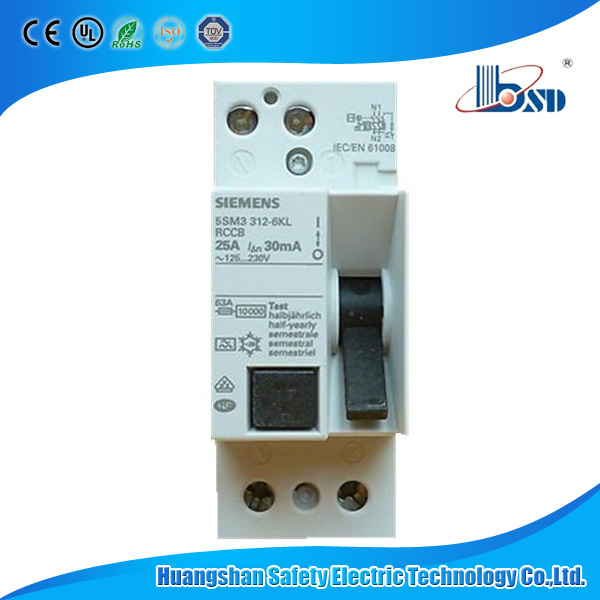

Siemens 5SM RCCB

All kinds of series products, and stable quality!
Produce products according to customer's sample and requirements.

RCCB From 6A to 125A.
Specifications
Number of Poles 2P 4P
Rated Current (A) 6, 10, 16, 20, 25, 32, 40, 50, 63, 80, 125
Rated Residual Operating Current ()(mA) 30
Rated Residual Non-Operating Current ()(mA) 15
Rated Voltage (V) 230/440
Residual Current Off-time ≤ 0.1S
Breaking Capacity 6KA

MAIN TECHNICAL DATA:

Type	Un (V)	hZ	Im IΔm	Inc IΔm	In A	IΔn mA	IΔno mA	The maximum of break-time(s)
Type	Un (V)	hZ	Im IΔm	Inc IΔm	In A	IΔn mA	IΔno mA	IΔN	2IΔN	5IΔN	0.25A	500A
CY101R (5SM1) 2P	240	50/60	500A (In≥50A10In) (In≥50A)	6000A	6,10,16, 25,32,40, 50,63,80	30	15	0.2	0.1	-	0.04	0.04
						50	25	0.2	0.1	-	0.04	0.04
						75	40	0.2	0.1	-	0.04	0.04
						100	50	0.2	0.1	0.04	-	0.04
						300	150	0.2	0.1	0.04	0.04	0.04
						500	250	0.2	0.1	0.04	0.04	0.04
CY101R (5SM1) 4P	415		500A (In≥50A10In) (In50A)	6000A	6,10,16, 25,32,40, 50,63,80	30	15	0.2	0.1	-	0.04	0.04
						50	25	0.2	0.1	-	0.04	0.04
						75	40	0.2	0.1	-	0.04	0.04
						100	50	0.2	0.1	0.04	-	0.04
						300	150	0.2	0.1	0.04	0.04	0.04
						500	250	0.2	0.1	0.04	0.04	0.04

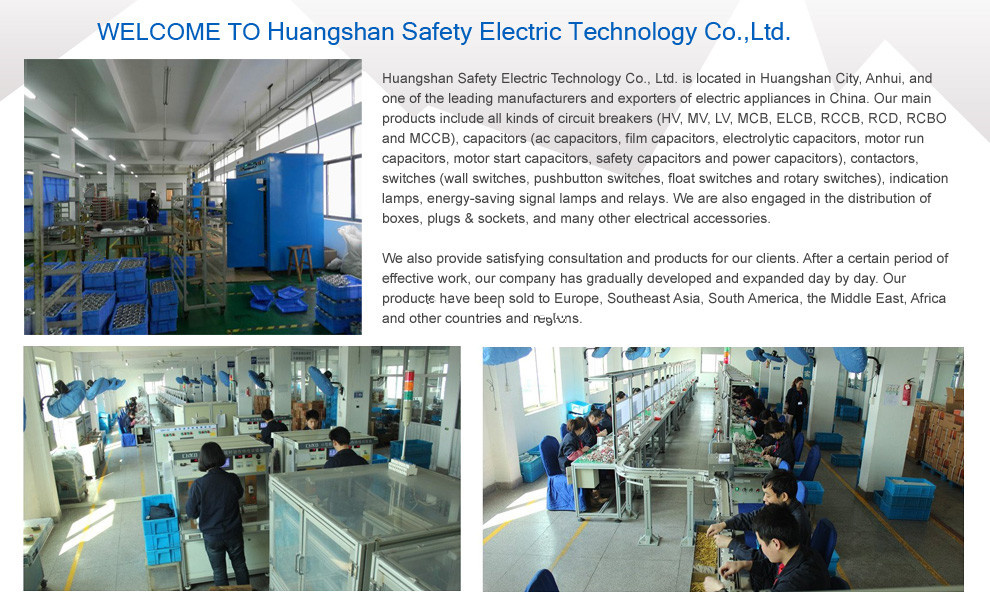

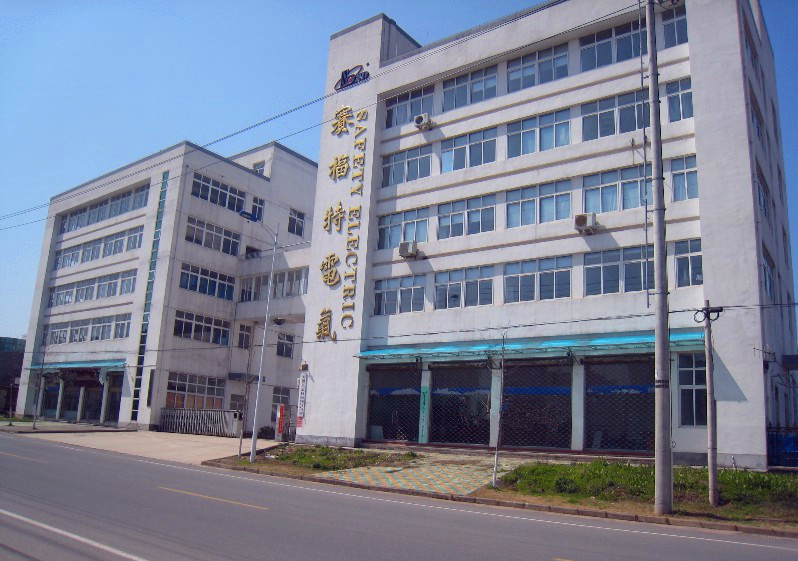

Huangshan Safety Electric Technology Co., Ltd., is located in the Huangshan city, which is one of the leading manufacturer and exporter in the field of low voltage electric appliance in China,

We produce circuit breaker (MCB, ELCB, RCCB, RCBO, MCCB),

AC capacitor (low voltage power capacitor, motor run and starting capacitors, lighting capacitors, )

Pushbutton, switches, contactor, indication lamps, distribution box, etc series products, at present, we have more 200 workers and with about 20000 square meters building workshop for the production line,

We have gotten the ISO9001, CCC, , CE, TUV, UL certificate. We produce top quality all along and meet customers' quality requirement,

We have the development department by ourselves, we can offer OEM, ODM service and develop new products every year.

We promise to offer you superior products, favorable price, and timely delivery.

If you are interested in cooperating with us, please feel free to contact with us in your earliest convenience time.
