| Prod Model: |
FC-APC-Adaptor |
| Return Loss: |
>45dB |
| Cores: |
Hybird Simplex, Duplex, Quad |
| Colour: |
Various |
| Insertion Loss: |
<0.2dB |
| Operating Temperature: |
-40c ~ +85c |
| Allowed Lateral Pressure: |
100(N/100mm) |
| Allowed Tensile Strength: |
<100n |
| Certification: |
Ce, RoHS, ISO9001, CCC, UL |
| Sheath Material: |
PVC, LSZH, Ofnp |
| Mating Durability: |
500 Times |
| Transmission Medium: |
Single-Mode |
| Structure: |
FC |
| Number Of Cores: |
Single-Core |
| Ferrule Endface: |
APC |
| Light Source TYPE: |
Fiber Optic |
Product Description
Simplex Whitout Flange Fiber Optic FC/APC Adapter
Fiber optic adapters is also called mating sleeves,which are used to connect optical connectors of same type, such as FC, SC and ST. optical adapters are widely uses in light distribution frame(ODF), the optical fiber communications equipment, the measuring appliance and so on.
The optical adapter connects fiber transmission by its placket tube. We offer various shapes of high-performance adapters to ensure maximum connectivity between the fiber jumper. In order to fix a varity of board level, our company designed various sophisticated fixed flange.
Features1. Single mode and Multimode
2. Zirconia sleeves or Phosphor bronze sleeves
3. NTT standard compatible
4. Available without flanges or with flange for duplex, saving panel spaceSC2 8Port high density for patch panel mount applications
5. Meet JIS5974 and bellcore GR-326 standard
6.Compliant with IEC874-14 & IEC874-19
7. All parts compliant with ROHS
Application1. Telecommunication
2. CATV
3. LAN & WAN
4. Network
5. Broadband
6. FTTH
Order Information1. Type: SC, LC, ST, FC, MU, E2000, Hybrid
2. Endface type: PC UPC APC.
3. Singlemode or Multimode.
4. Simplex, Dumplex or Quad.
| Parameter | Unit | LC, SC, FC, MU, ST, SC-ST, FC-ST, FC-SC, FC-LC, FC-MU | MTRJ | E2000 |
| SM | MM | SM | MM | SM |
| PC | UPC | APC | PC | PC | UPC | PC | PC | APC |
| Insertion Loss (Typical) | dB | ≤0.3 | ≤0.2 | ≤0.3 | ≤0.2 | ≤0.3 | ≤0.2 | ≤0.2 | ≤0.3 | ≤0.3 |
| Return Loss | dB | ≥45 | ≥50 | ≥60 | ≥30 | ≥45 | ≥50 | ≥35 | ≥55 | ≥75 |
| Exchangeability | dB | ≤0.2 | ≤0.2 | ≤0.2 |
| Repeatability | dB | ≤0.2 | ≤0.2 | ≤0.2 |
| Durability | Time | >1000 | >1000 | >1000 |
| Operating Temperature | C | -40~75 | -40~75 | -40~75 |
| Storage Temperature | C | -45~85 | -45~85 | -45~85 |
Why choose Takfly ?
Service
1.Customer's logo: Acceptable
2.General inspection on fixing before packing
3.Third party inspection: Acceptable
Quality Control
All products must go through five checks before manufacturing process
1.Material incoming inspection before production
2.Full check after every individual process finished
3.Full check after production half-done
4.Full check before packing
5.Spots check after production packed before shipping
Advantage
1.15 years experience in manufacturing fiber optic products..
2.Availability of R & D with more than 10 engineers.
3.Available of design and making mold with special molding house.
4.High quality, attractive price and fast delivery(2-7days)
5.OEM, ODM customer designs are also welcomed
6.More than 200 workers
7.Excellent survice
Delivery
1.Packing: Plastic bag& carton, Neutral packing or as your required.
2.Sample time: 1-3 days after confirm
3.Order lead time: 2-7working days depend on quantity and products.
4.Shipping port: Shenzhen China or HK
5.Shipping term: EXW or FOB
Packaging
1. All products will be packed in double corrugated carton , so the product can get effective protection to avoid damage.2. Packaging according to customer requirement Shipping
1. We shipping via DHL / FedEx / TNT/etc for samll orders. Yow can get your packages in about 3-5 days all over the world.2. For big order, we will arrange Air cargo for your shipment, so it will be much cheaper than DHL, UPS etc.3. You can choose your own shipping agent, we will provide good cooperation for it. After-Sales Service
1. TAKFLY can provide detail documents and remote help for device installation and configuration.
2. Warranty: 2 year. ( After the quality guarantee period began to charge appropriate maintenance service fee.)
3. TAKFLY promises goods enjoy full return due to quality problem since goods delivered within 7 days or 15 days , returned goods must keep original state and it's accessories are complete.

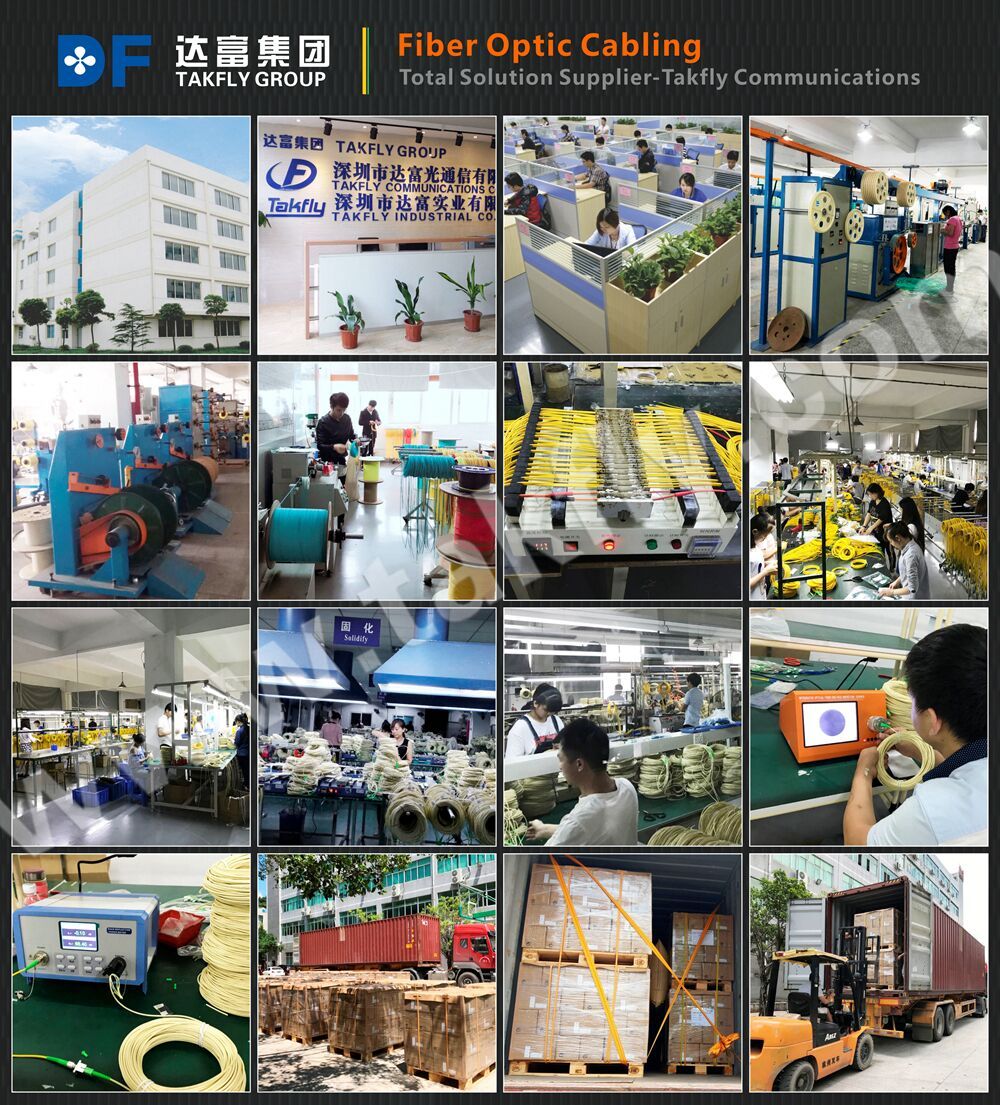

Takfly Communications Co., Ltd. is a Hi-Tech enterprise having its own brand and specializing in R&D, manufacture and sales of fiber optical communications equipments.
