Single Core Mv Power Cable 6/10kv with Aluminum Conductor

Name: Single Core Mv Power Cable 6/10kv with Aluminum Conductor
Brand: all-electronics-online.com
SKU: 711095712
Availability: InStock
Rating: 4.7 (79 reviews)

Price:	US $ 2-100/Meter
Min Order:	500/Meter
Pay Type:	L/C,T/T,Western Union,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	YJLV62 BL39
Application:	Power Station
Voltage:	Low and Medium Voltage Cable
Current:	AC Cable
Insulation Material:	XLPE
Certification:	CE
Wire Core Material:	Aluminum
Model:	Yjlv62
Brand:	Yifang

Product Description

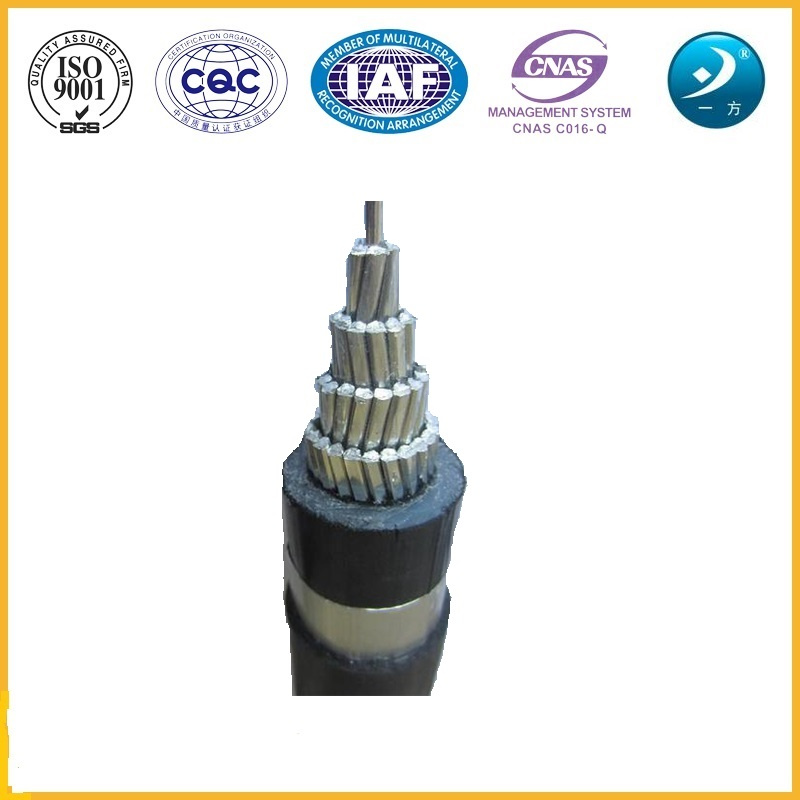

Single Core MV Power Cable 6/10KV with Aluminum Conductor

BS6622 Cu/XLPE/CTS/PVC/AWA/PVC 6.36/11kV

Cable Application

Cu/XLPE/CTS/PVC/SWA/PVC 11kV medium voltage power cable may be used for power networks, in fixed installation outdoors in cable ducts or directly in the ground. The cable consists of a Class 2 stranded copper conductor, semi conductive conductor screen, XLPE insulation, semi conducting layer with a plain copper tape screen, PVC bedding, Aluminium Wire Armour and red PVC outer sheath. 6350/11000 volts to BS6622 and IEC 60502-2, flame retardant to IEC 60332-1.

Technical Information

Conductor Material:	Copper
Conductor Identification:	Coloured tape under screen
Conductor Shape:	Circular
Conductor Flexibility:	Stranded class 2
Material of the Inner Semi-conductor:	Semi-conducting compound
Insulation:	XLPE (Chemical)
Armour Type:	Aluminium wires
Screen:	Copper tape
Outer Sheath:	PVC
Inner Sheath:	PVC
Material of the External Semi-conduct:	Extruded strippable
Colour:	Red
Lead Free:	Yes
Rated Voltage Uo/U (Um):	6350/11000V to BS6622 & IEC 60502-2
Installation Temperature:	Minimum: 0°C Maximum: 60°C
Installation Type:	Direct burial or in ducts
Operating Temperature:	Minimum: -15°C Maximum: 90°C
Short-circuit Maximum Conductor Temperature:	250°C
Flame Retardant:	Yes, IEC 60332-1
Bending Radius:	15 x Ø

Part number	Cross section mm²	Stranding mm	Approx weight kg/km	Approx overall diameter	Gland size mm	Single cleat	Nom. Max. DC-resist conductor 20°C ohm/km	Current rating laid direct amp
1 Core: Brown Tape
11KVPVC1X50	1 x 50	19/1.78	1,210	28.5	32	1.2	0.387	221
11KVPVC1X70	1 x 70	19/2.14	1,500	30.5	32	1.2	0.268	270
11KVPVC1X95	1 x 95	19/2.52	1,700	32.4	32	1.4	0.193	321
11KVPVC1X120	1 x 120	37/2.03	2,105	34.2	40	1.4	0.153	363
11KVPVC1X150	1 x 150	37/2.25	2,505	36.4	40	1.6	0.124	410
11KVPVC1X185	1 x 185	37/2.52	2,900	37.7	40	1.6	0.0991	455
11KVPVC1X240	1 x 240	61/2.25	3,532	40.6	50s	1.6	0.0754	520
11KVPVC1X300	1 x 300	61/2.52	4,230	42.7	50s	1.8	0.0601	580
1 Core: Brown Tape
11KVPVC1X400	1 x 400	61/2.85	5,145	46.4	50s	2.0	0.0470	650
11KVPVC1X500	1 x 500	61/3.20	6,450	51.0	50	2.0	0.0366	710
11KVPVC1X630	1 x 630	127/2.52	7,950	59.9	63s	R9	0.0283	761
11KVPVC1X800	1 x 800	127/2.85	9,720	60.0	63	R10	0.0221	812
11KVPVC1X1000	1 x 1000	127/3.2	11,860	64.0	75s	R11	0.0176	868

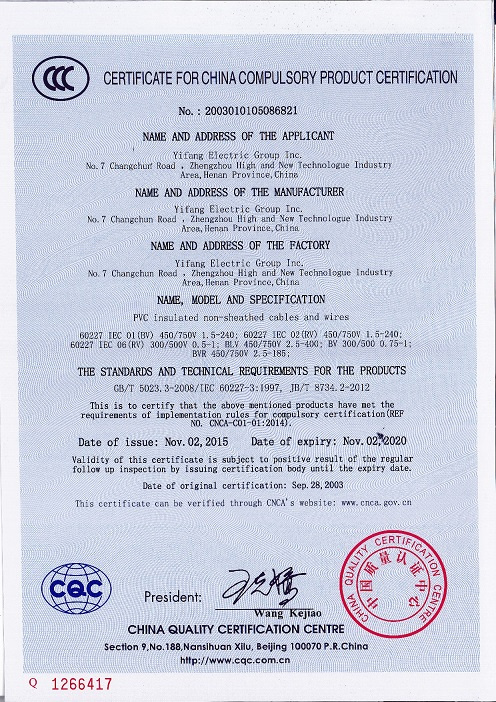

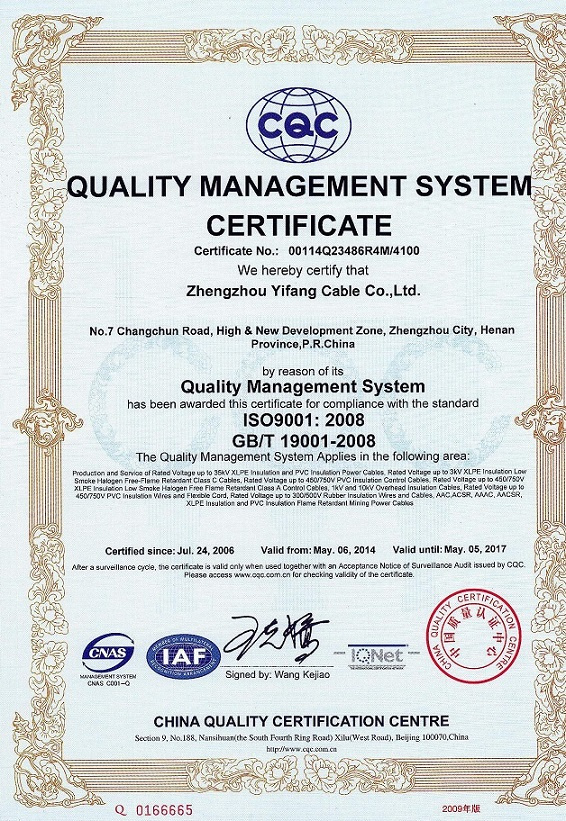

Certificates:

Zhengzhou Yifang Cable Co., Ltd is a large joint-stock\hi-tech enterprise established in 1988. We are specialized in wires & cables, including designment, production and sales.

There are more than 500 staffs in our factory including over 50 technical personnel, 5 senior engineers. With complete advanced cable producing equipments over 150 sets, complete testing equipments, a national level fire-resistant & flame retardant cable laboratory. Our technology has reached advanced levels at home and abroad.

Our main products include: Power Cable for voltage up to 220KV, Overhead insulated cable, ABC Cable, Building Cable and flexible cord, Control Cable, Rubber Cable, Bare Conductor(ACSR, AAC, AAAC, BCC), Welding Cable, Galvanized Steel Wire(Stay wire), flame retardant mining cable, etc

We have own IM/EX right, our products have been exported to Europe, Australian, Middle-east, South-east Asia, Africa, American, South American etc., being subjected to consistent good opinion of customers.
