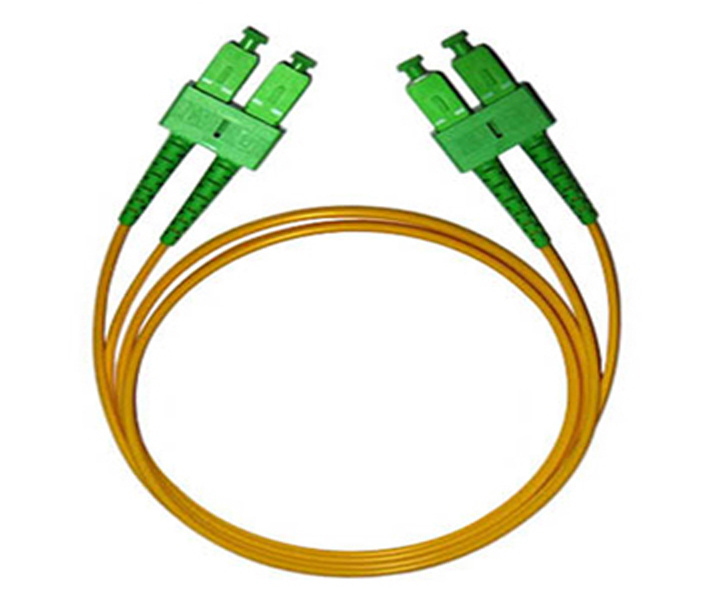

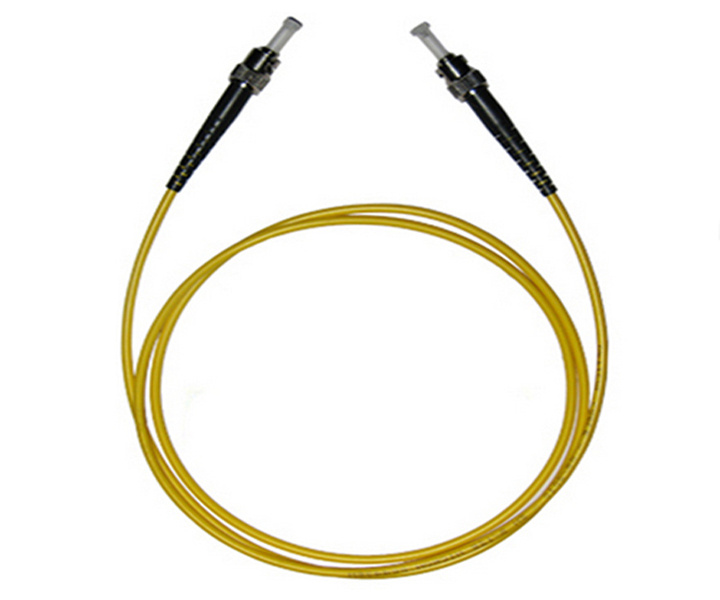

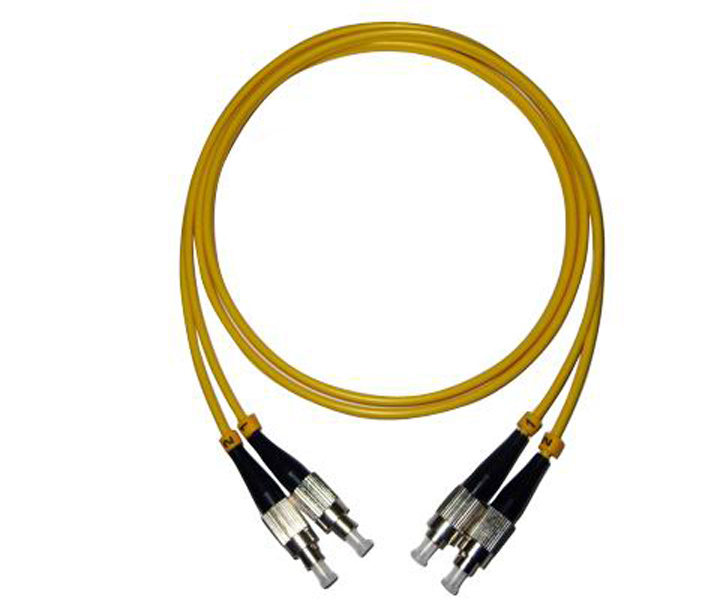

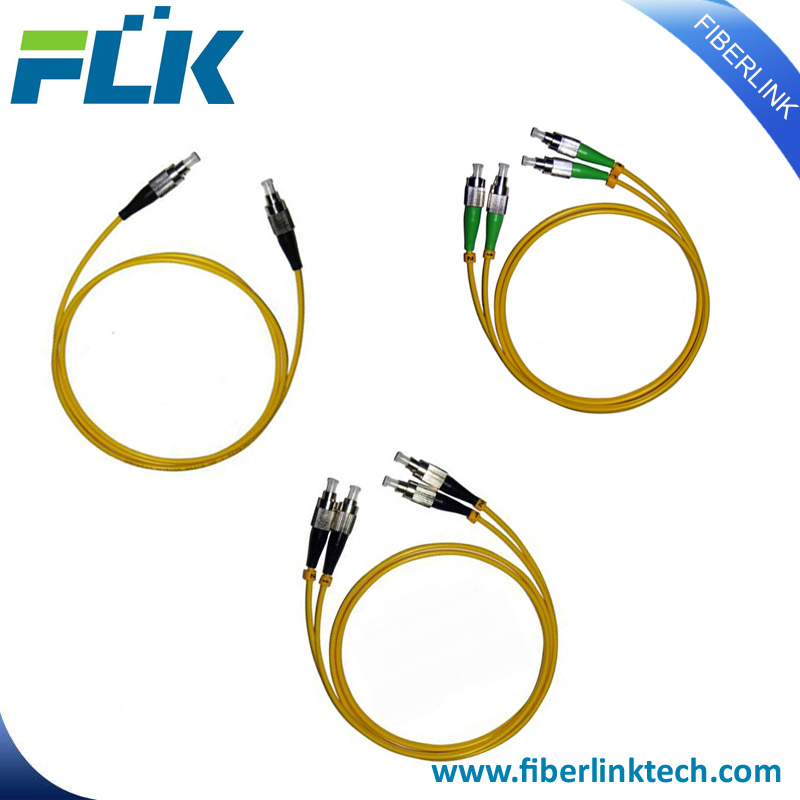

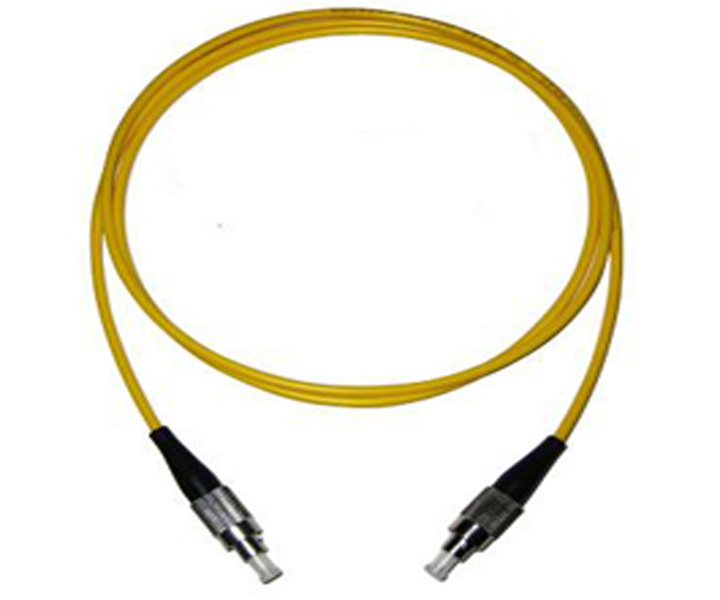

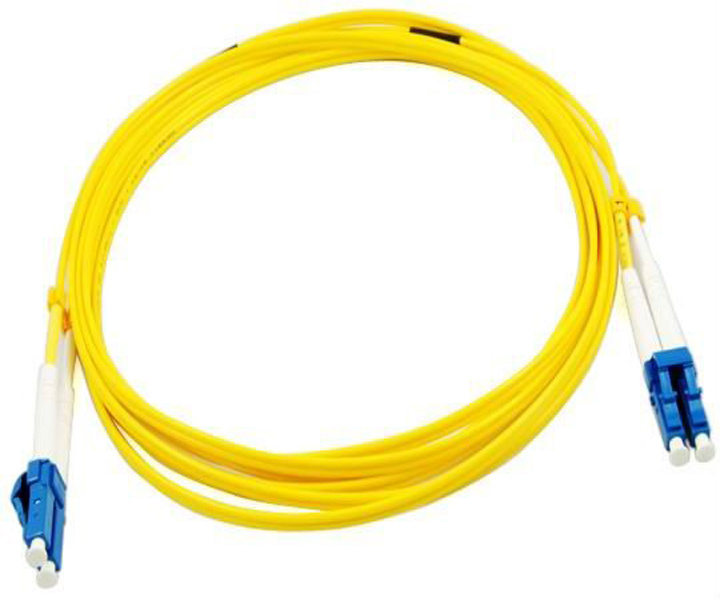

Single-Mode Fiber Optic Patch Cords
| Price: |
US $ 0.77-0.85/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
T/T,Western Union |
| Prod Model: |
Fiber Optic Patch cords |
| Application: |
Communication |
| Type: |
Single-mode Fiber |
| Certification: |
ISO9001 |
| Connection Structure: |
Sc LC FC St |
| Allowed Tensile Strength: |
≥98n |
| Core: |
Simplex or Duplex |
| Brand: |
Fiberlink |
| Sheath Material: |
PVC or LSZH |
Product Description
Description:Fiber Optic Patch Cords are used for Telecom networks and also used for high speed metropolitan and access network. Our single mode patch cords are manufactured using LSZH cables which conform to IEC, EIA TIA and Telecordia standards.
They comprise two tight buffer fibers housed within a common outer jacket in OM1, OM2, OM3, OM4, OS1, OS2 multi-mode and single mode variants. Both ends are terminated with a high performance hybrid or single type connector comprising of a SC, ST, FC, LC, MTRJ, E2000 connector in simplex and duplex.These are typically not ruggedized, depending on the application and a spring loaded electrical contact housed within LSHF plastic shell possible, making them suitable for internal use.COMPLIANCETelcordia (formerly Bellcore) GR-326-CORE Generic requirements for Single mode optical connectors and Jumper assemblies.
IEC 874-1 Generic specification for fiber optic connectors and cables
ANSI/TIA-568-C.3, ISO/IEC 11801 2nd Ed., CENELEC EN 50173, UL94V-0
Cable flame resistant rate: OFNR or IEC60332-3 standardKEY FEATURESST, SC, FC, LC connectors
Duplex and Simplex versions uniform and hybrid cord versions
Position A/Position B markings
100% factory transmission tested per ANSI/TIA-568-C.3
Slim-profile boots with durable flexible cable strain relief
Available in 0.9mm, 1.6mm, 2.0mm, 2.4 mm, 2.8mm, 3.0mm sizesMECHANICAL, ENVIRONMENTAL & MATERIAL DATA| Range of Mode | Single-Mode |
| Cable Type | Simplex or Duplex Zipcord |
| Connector Style | SC, FC, ST, LC |
| Polish or Ferrule Interface Type | PC, UPC, APC |
| Cable Diameter | 0.9mm, 1.6mm, 2.0mm, 2.4mm, 2.8mm, 3.0mm |
| Lengths | Standard & Custom Lengths |
| Strength Member | Aramid Yarn |
| Outer Jacket | PVC or LSZH |
| Cable Assembly Length (<15 meter Tolerance) | -0/+100mm |
| Cable Assembly Length (>15 meter Tolerance) | -0/+10% |
| Jacket Color (Single Mode: OS1 & OS2) | Yellow |
| Durability | 500 cycles(0.2 dB max increase), 1000mate/demate cycles |
| Operating Temp. | -20 ˚C to +70˚C/+85˚c (armoured) |
| Storage Temp. | -40 ˚C to +85˚C |
| Ferrule Concentricity | < 1μm, Other Ferrule Concentricity < 1μm |
| Humidity (FOTP-5) | 90-95% at 40°C |
| Strength of Coupling Mechanism (FOTP-185) | 33 N at 0° for 5 sec |
| Cable Retention (FOTP-6) | 50 N at 0° for 5 sec. |
| Twist (FOTP-36) | 15 N at 0° 5 turns, 10 cycles |
| Flex (FOTP-1) | 0.5 Kg at 25 cm, +90° to -90°, 100 cycles |
OPTICAL CHARACTERISTICS| Fiber Type | Max. Attenuation
(dB/km) | Min. Overfill Launch
Bandwidth
(Mhz•km) | Min. Gigabit Ethernet Link
Distance (m) |
| Gigabit | 10Gigabit |
| 850nm | 1300nm | 1310nm | 1550nm | 850nm | 1300nm | 850nm | 1300nm | 850nm |
| OS1 9/125μm | - | - | ≤0.34 | ≤0.20 | - | - | - | - | - |
| OS2 9/125μm | - | - | ≤0.34 | ≤0.24 | - | - | - | - | - |
OPTICAL PERFORMANCE DATA| Item | Single mode |
| PC | UPC | APC |
| Insert. Loss | 0.3dB Max. (0.15dB typ.) |
| Return Loss | ≥ 45 dB | ≥ 50 dB | ≥ 60 dB |
| Pull strength | ≥98N | ≥98N | ≥98N |
Our company supplies high-performance fiber optic communication system products with high quality and favorable price. Our main products are Fiber optic cable, Fiber patch cord, Fiber adapter, Fiber attenuator, FBT Coupler, PLC splitter, Fiber patch panel, Fiber termination box, Fiber distribution box, Fiber optic splice closure, MPO system and FTTH solution products, etc. We're pleased to get your Inquiry and we will come back to as soon as possible. We stick to the principle of "quality first, service first, continuous improvement and innovation to meet the customers" for the management and "zero defect, zero complaints" as the quality objective. To perfect our service, we provide the products with good quality at the reasonable price.
Interconnect Products Division: Develops and manufactures fiber optic components for a diverse range of applications. The division's products include Fiber optic connectors, patch cords andadapters, attenuators, couplers, PLC splitters, circulators, and isolators.
Solution Products Division: Known for providing Fiber Optic Communication Solution in the world, the Solution Products division focused on fiber accessories and systems, such as Fiber patch panel, Fiber termination box, Fiber distribution enclosure, Fiber optic splice closure, MPO system andFTTH solution products, etc.
OEM Products Division: OEM Products division provides OEM services to our clients by not only complete customers' requirements but also give active suggestions to improve the products' performance and quality. This division's main mission is to help customers stay competitive by constant innovation service.
